  • 3.3-3.6GHz Cavity Band Pass Filter
3.3-3.6GHz Cavity Band Pass Filter

3.3-3.6GHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA308S
  • Pass Band Frequency:3.3-3.6GHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:

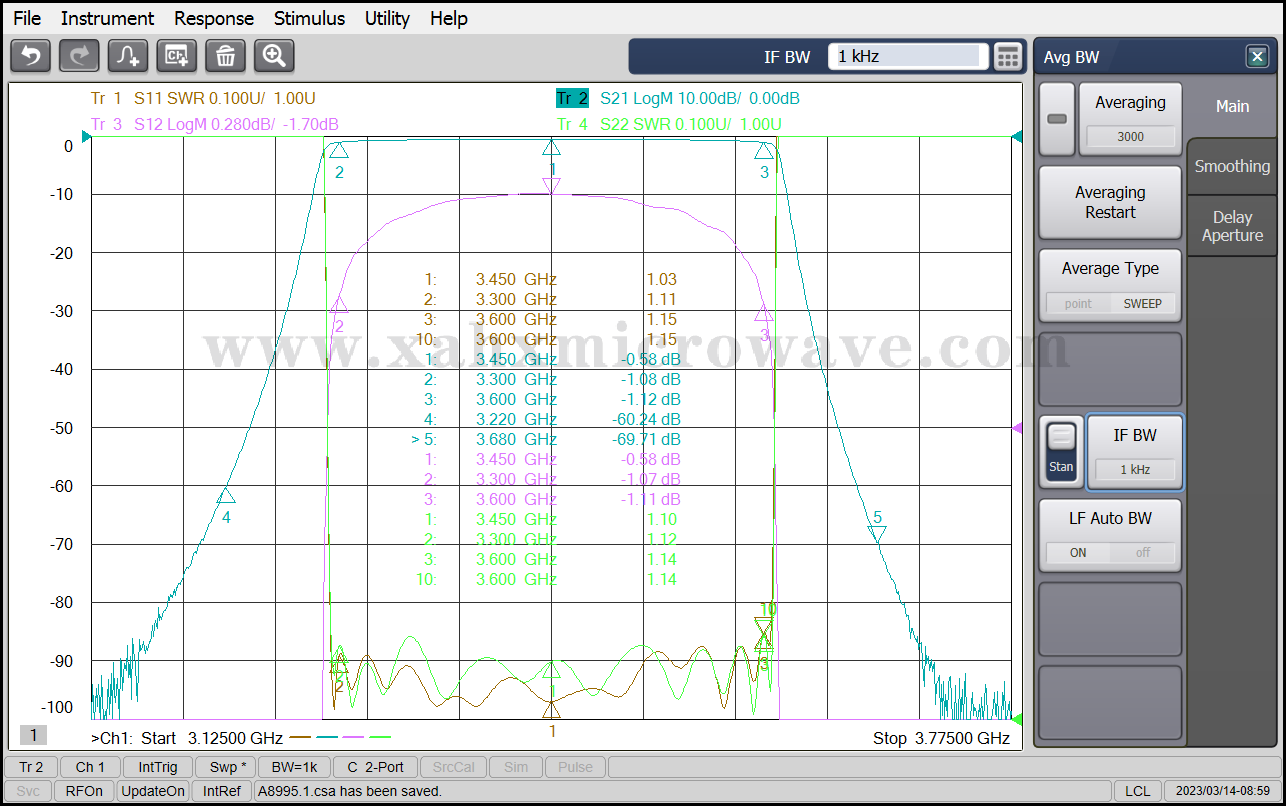

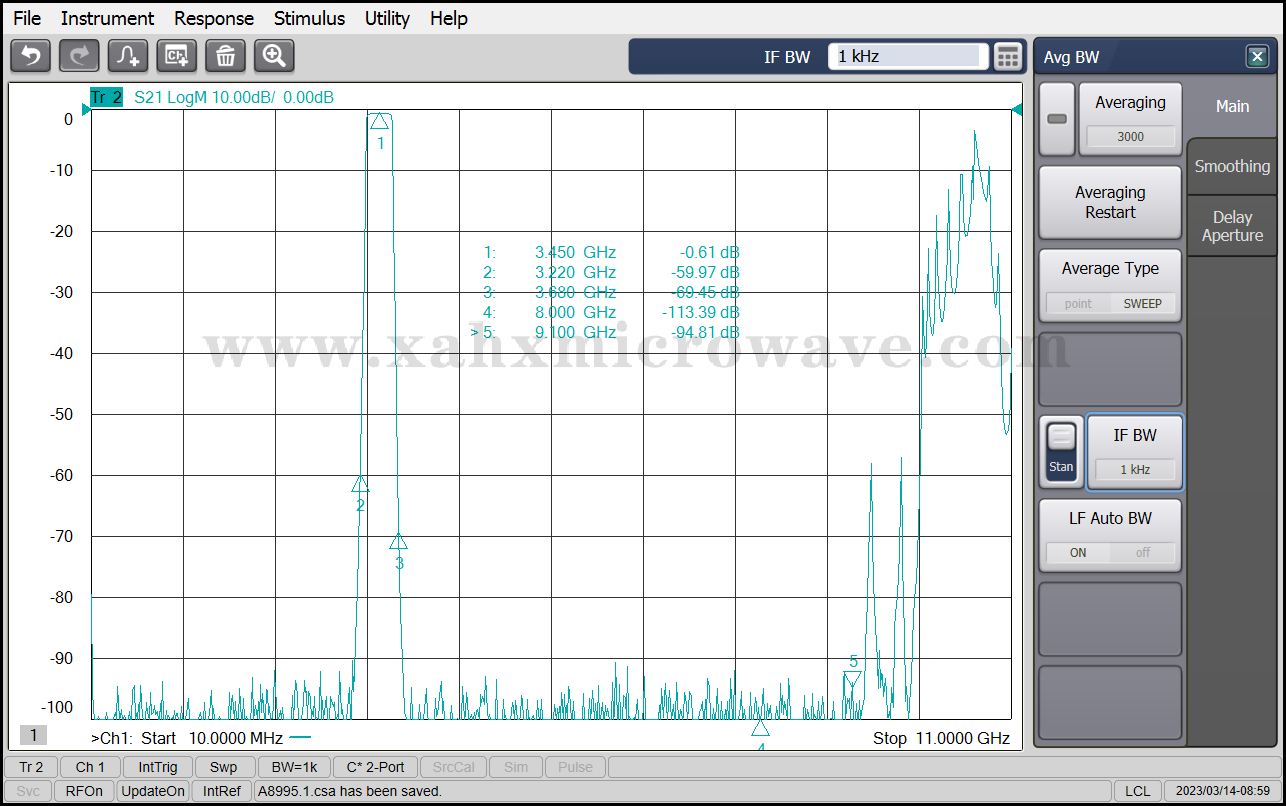

  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

3450MHz

2

Pass Band Frequency

3300 ~ 3600MHz

3

Pass Band Insertion Loss

1.5dB

4

Pass Band Ripple

0.7dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

50dB @ DC ~ 3220MHz

55dB @ 3680 ~ 8000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70
