  • 1260-1280MHz Cavity Band Pass Filter

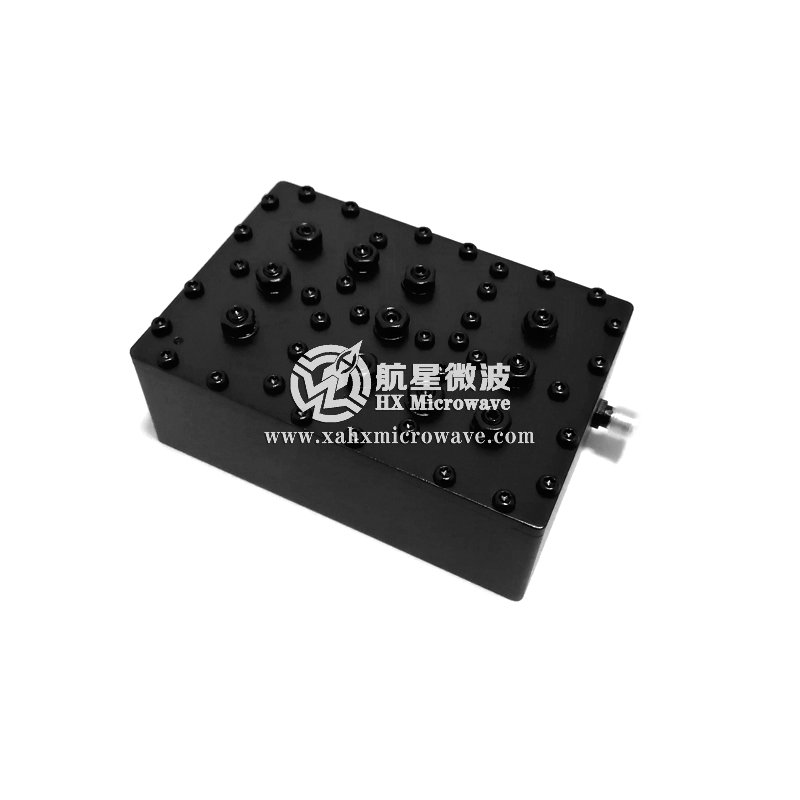

1260-1280MHz Cavity Band Pass Filter

1260-1280MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA289
  • Pass Band Frequency:1260-1280MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1270MHz

2

Pass Band Bandwidth

20MHz (1260 ~ 1280MHz)

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

0.6dB

5

Pass Band VSWR

≤1.3:1

6

Stop Band Rejection

≥40dB @ DC 1245MHz

≥40dB @ 129~ 5500MHz

7

Impedance

50 Ohms

8

Power

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
