Band Pass Filter

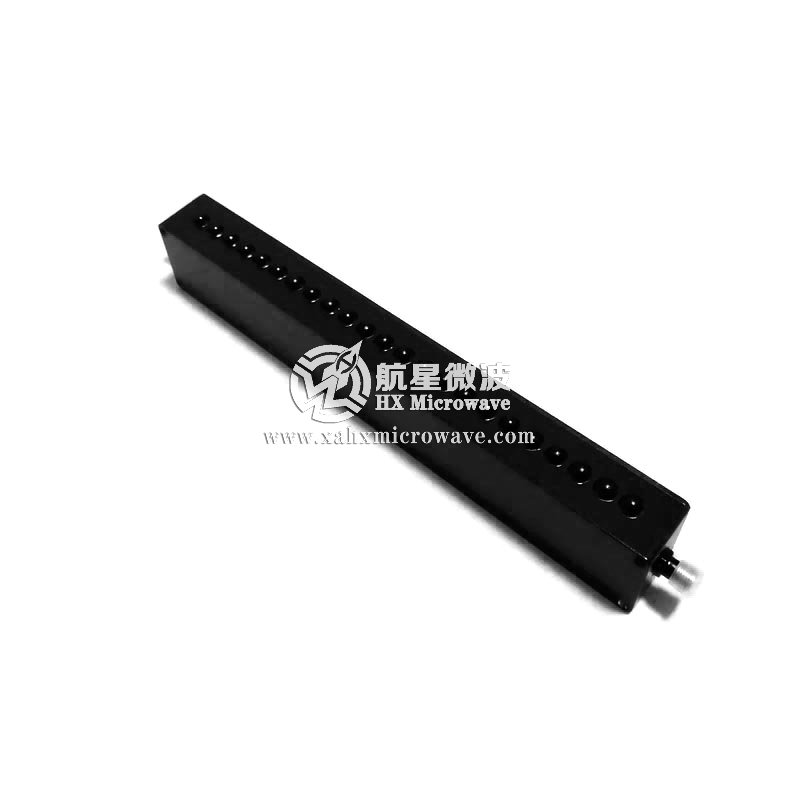

1800-1950MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA231
frequency:1800-1950MHz
Stop Band Rejection：≥40dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	1875MHz
2	Pass Band Frequency	1800 ~ 1950MHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band Ripple	≤1.0dB
5	Pass Band VSWR	≤1.3:1
6	Stop Band Attenuation	≥40dB @ DC ~ 1770MHz	≥40dB @ 1980 ~ 6000MHz
7	Impedance	50 Ohms
8	Power Handling	10W Max.
9	Connectors	SMA-Female
10	Surface Finish	Painted Black
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
13	Dimensions	1882820mm
14	Net weight	TBD
