Band Pass Filter

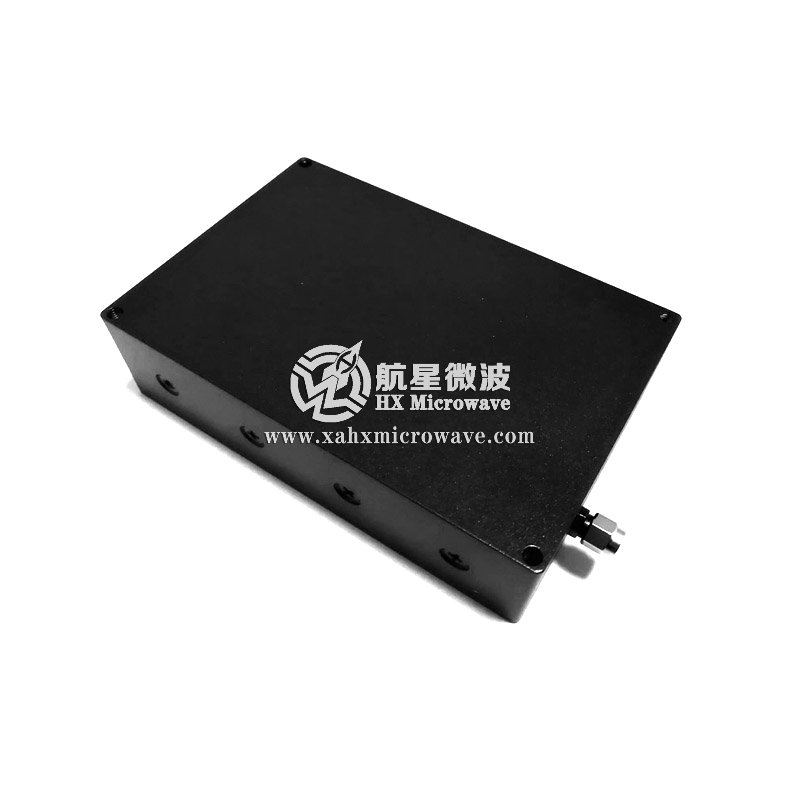

497-503MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA209
frequency:497-503MHz
Stop Band Rejection：≥40dB
Connectors：SMA
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	500MHz
2	Pass Band Frequency	497 ~ 503MHz
3	Pass Band Insertion Loss	≤1.5dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Rejection	≥40dB @ DC ~ 477MHz	≥40dB @ 523 ~ 1000MHz
6	Impedance	50 Ohms
7	Power Handling	20W Max.
8	Connectors	SMA-Male / SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	1328835mm
13	Net weight	TBD
