Technical Data Sheet
●	Center Frequency(F0)	5787.5MHz
●	Pass Band Frequency	5725 ~ 5850MHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥40dB @ Fc±200MHz (DC ~ 5525MHz , 6050 ~ 9000MHz)
●	Impedance	50 Ohms
●	Power	100W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

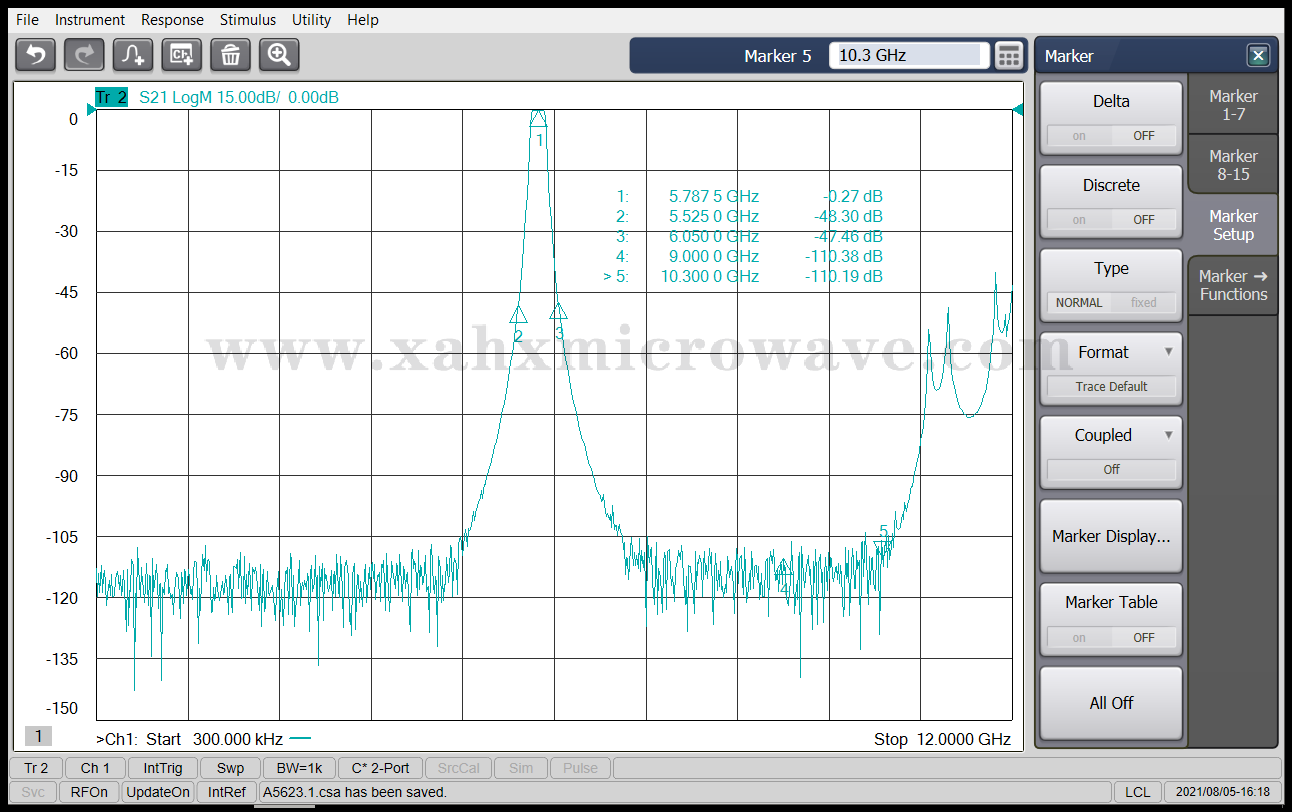

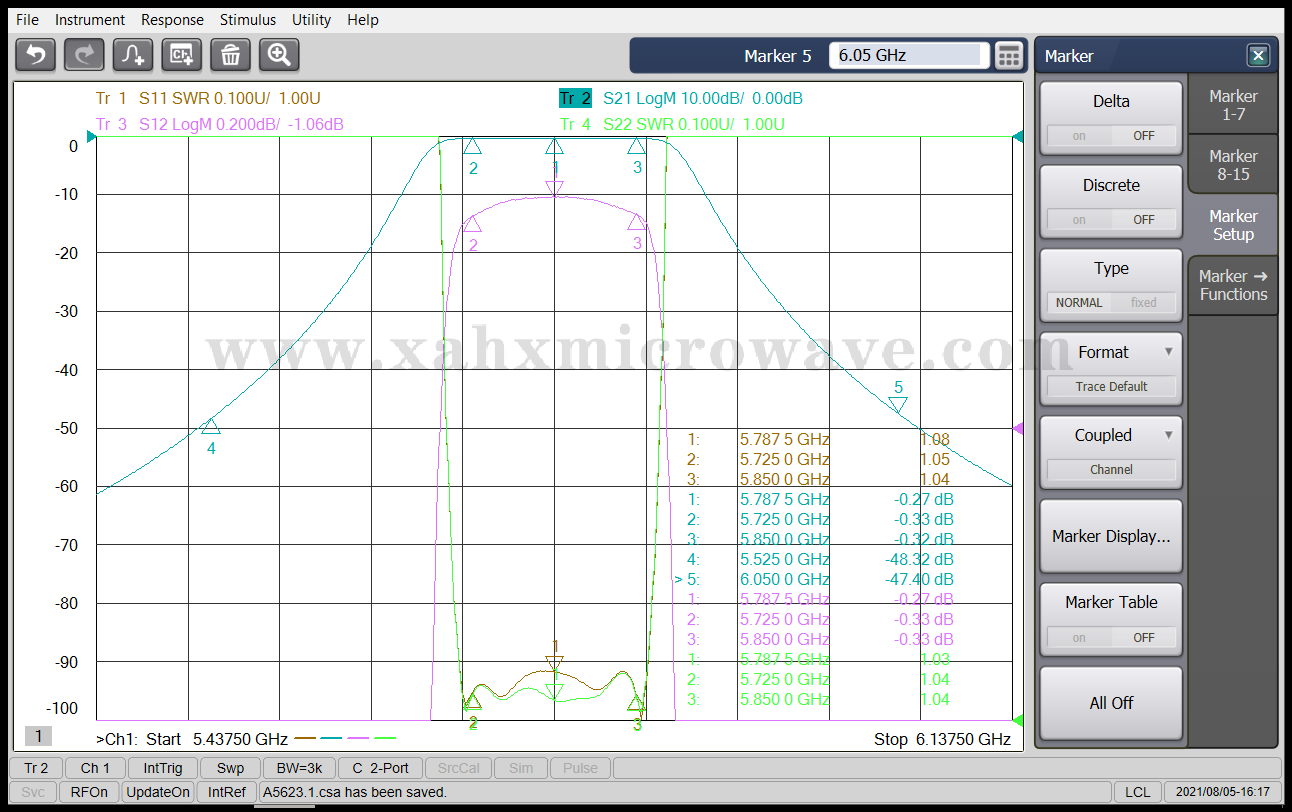

Test Curve
