  • 1.0GHz Cavity Band Pass Filter 980-1020MHz

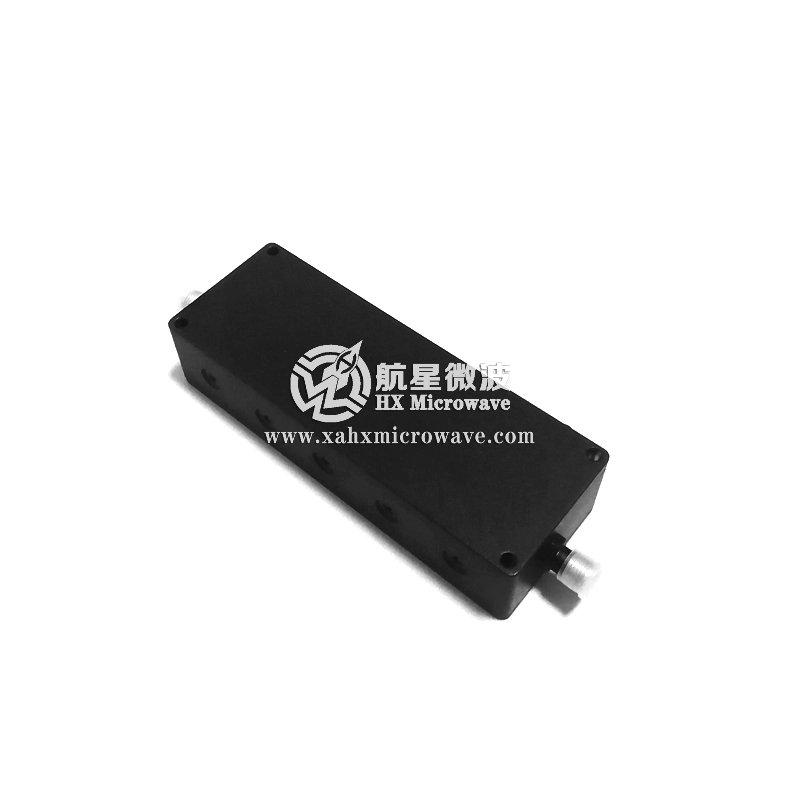

1.0GHz Cavity Band Pass Filter 980-1020MHz

1.0GHz Cavity Band Pass Filter 980-1020MHz

  • P/N:HXLBQ-DTA180
  • frequency:980-1020MHz
  • Stop Band Rejection:≥45dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

Technical Data Sheet
Center Frequency(F0) 1000MHz
Pass Band Bandwidth 40MHz (980 ~ 1020MHz)
Pass Band Insertion Loss ≤1.5dB
Pass Band VSWR ≤1.3:1
Stop Band Rejection ≥45dB @ Fc±30MHz (DC ~ 950MHz , 1050 ~ 2500MHz)
Impedance 50 Ohms
Power Handling 20W Max.
Connectors SMA-Female
Surface Finish Painted Black
Temperature Range -30℃ ~ +70℃

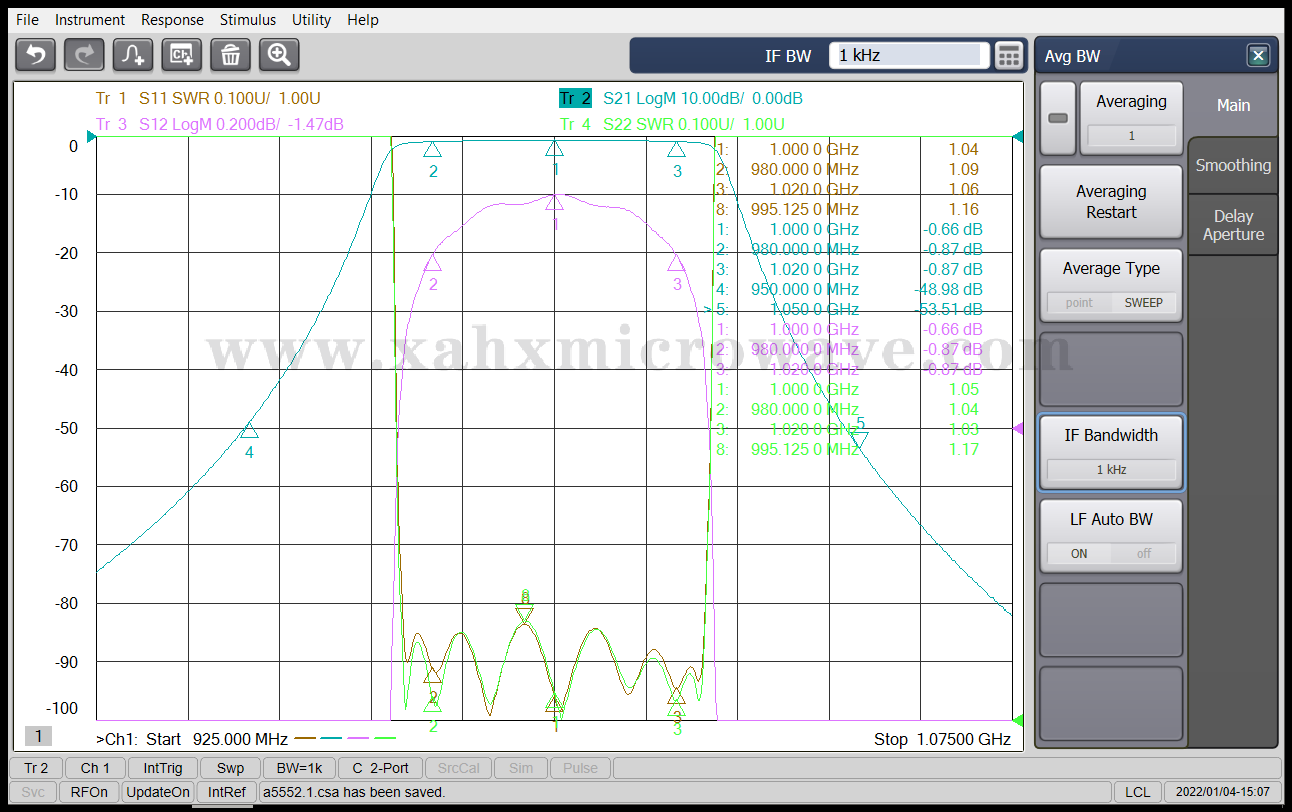

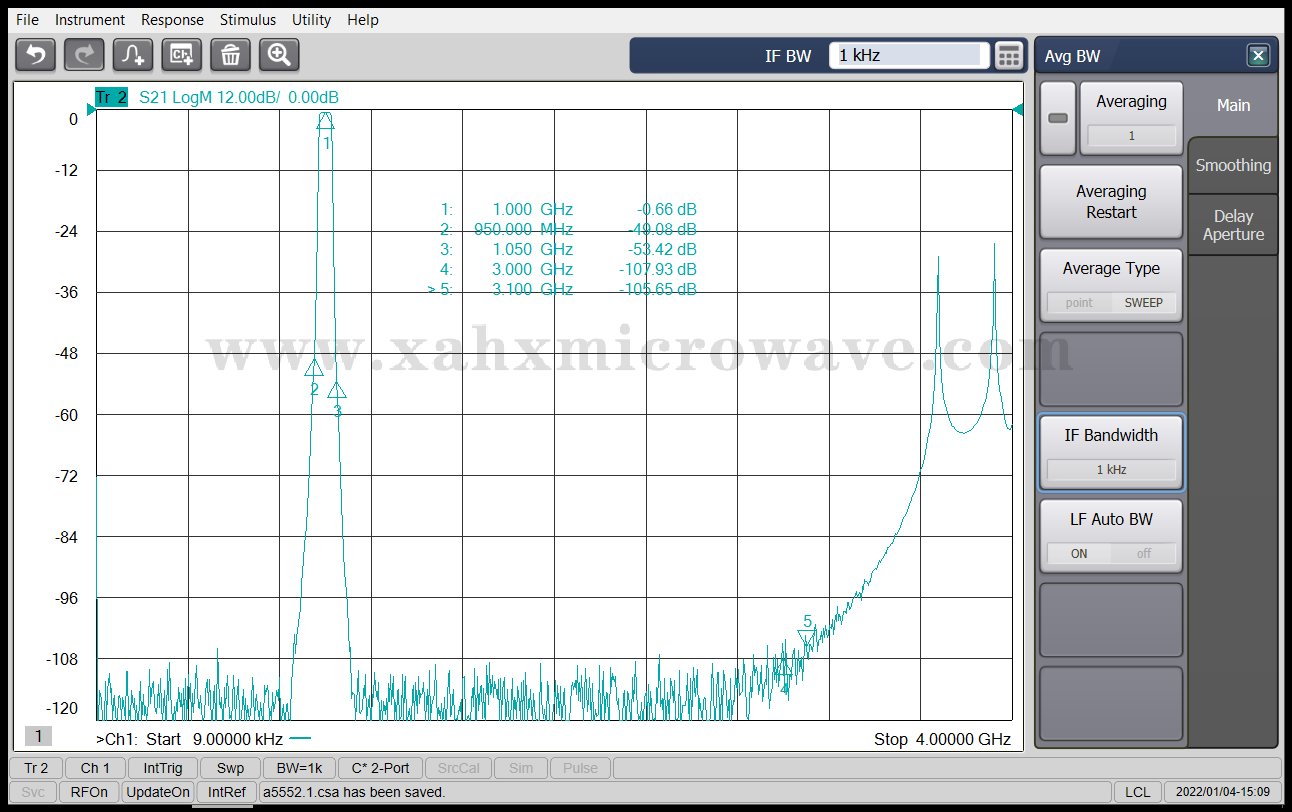

Test Curve
