Band Pass Filter

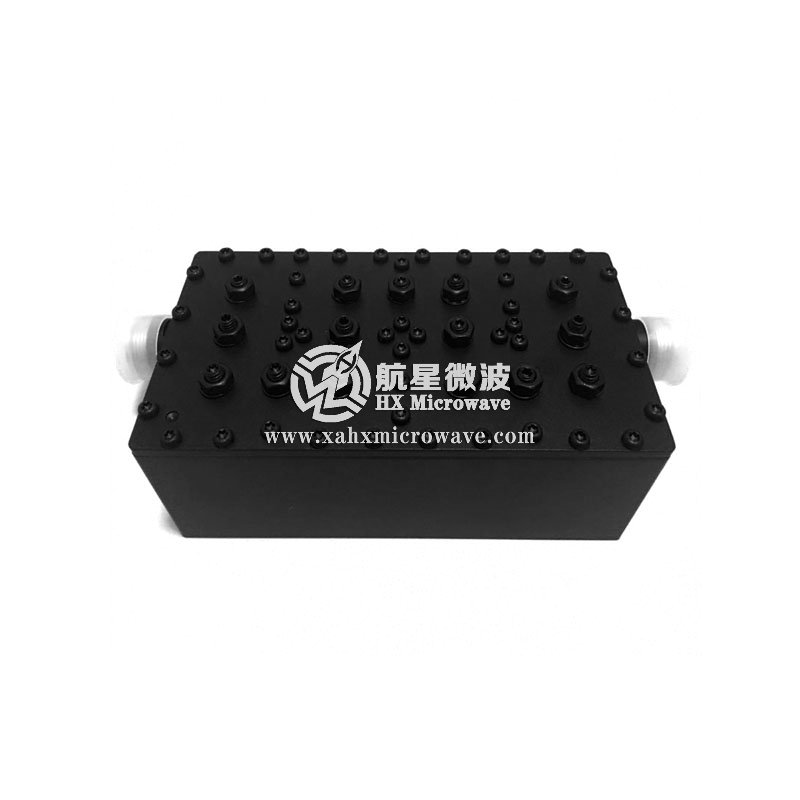

880-915MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA167
frequency:880-915MHz
Stop Band Rejection：≥50dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	897.5MHz
2	Pass Band Frequency	880 ~ 915MHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Rejection	≥50dB @ DC ~ 860MHz ≥40dB @ 860 ~ 870MHz	≥40dB @ 925 ~ 935MHz ≥50dB @ 935 ~ 2700MHz
6	Impedance	50 Ohms
7	Power Handling	20W Max.
8	Connectors	N-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	1206241mm
13	Net weight	TBD
