Band Pass Filter

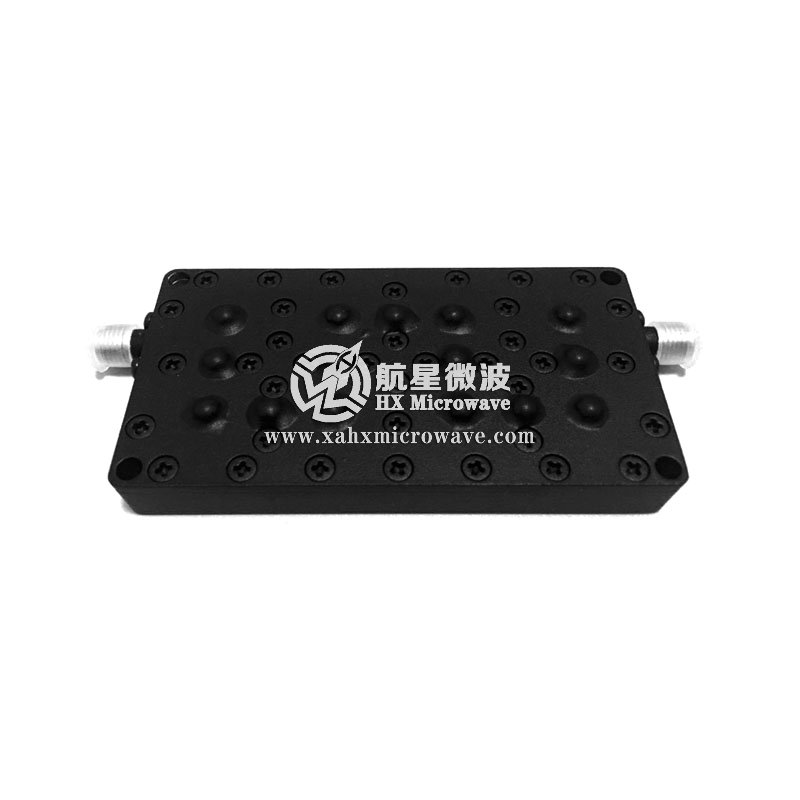

8.975-9.025GHz Cavity Band Pass Filter

P/N:HXLBQ-DTA165
frequency:8.975-9.025GHz
Stop Band Rejection：≥45dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	9.0GHz
2	Pass Band Frequency	8.975 ~ 9.025GHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Attenuation	≥45dB @ Fc±150MHz (DC ~ 8.825GHz , 9.175 ~ 18GHz)
6	Impedance	50 Ohms
7	Power Handling	5W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-20℃ ~ +60℃
11	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	733910mm
13	Net weight	0.15KG
