| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 16000MHz | |
| ● | 3.0dB Bandwidth | 30MHz Max. (15985 ~ 16015MHz Max.) | |
| ● | Insertion Loss @ F0 | ≤5.0dB @ 16000MHz | |
| ● | Return Loss | ≥18dB @ 15999 ~ 16001MHz | |
| ● | Stop Band Rejection | ≥45dB @ DC ~ 15945MHz | ≥45dB @ 16055 ~ 18000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

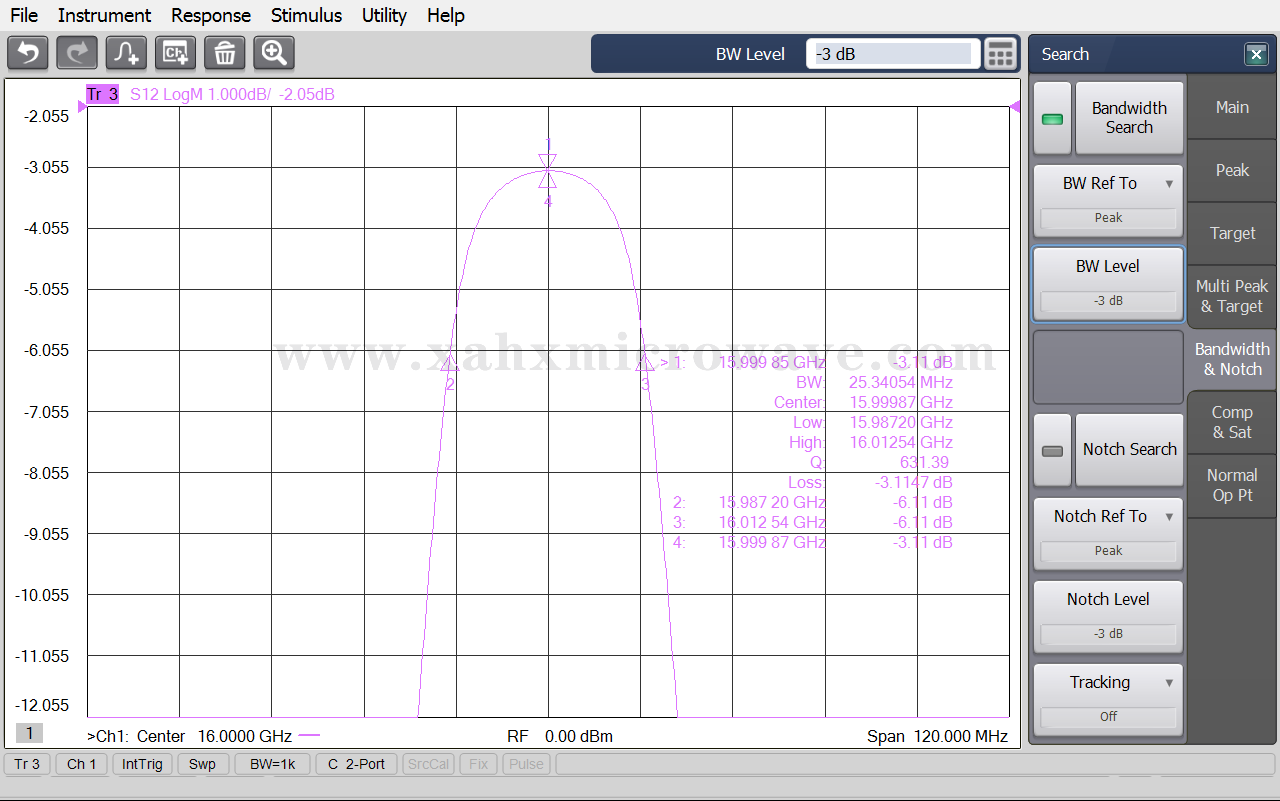

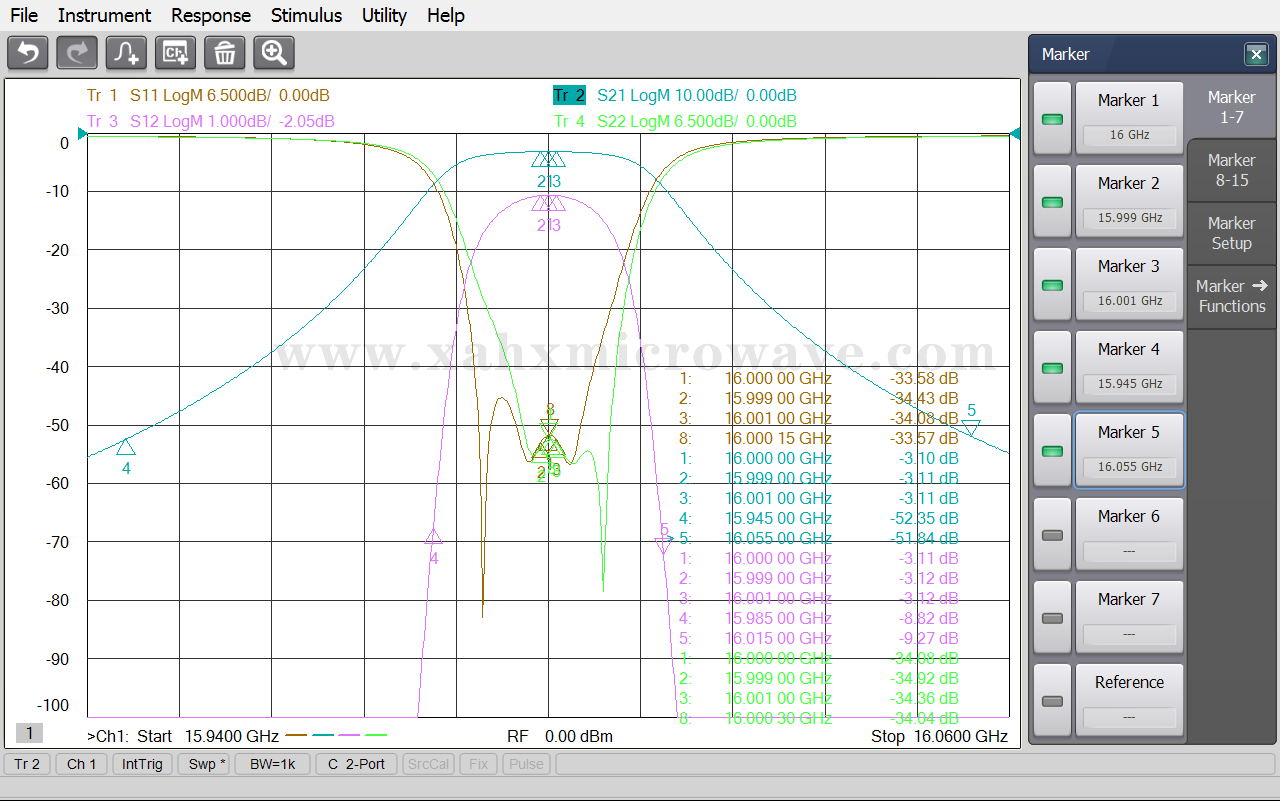

| Test Curve | |||
