| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1735MHz | |
| ● | Pass Band Frequency | 1725 ~ 1745MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1715MHz | ≥40dB @ 1755 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 100W Max. | |
| ● | Connectors | N-Male / N-Female | |
| ● | Surface Finish | Painted Black | |

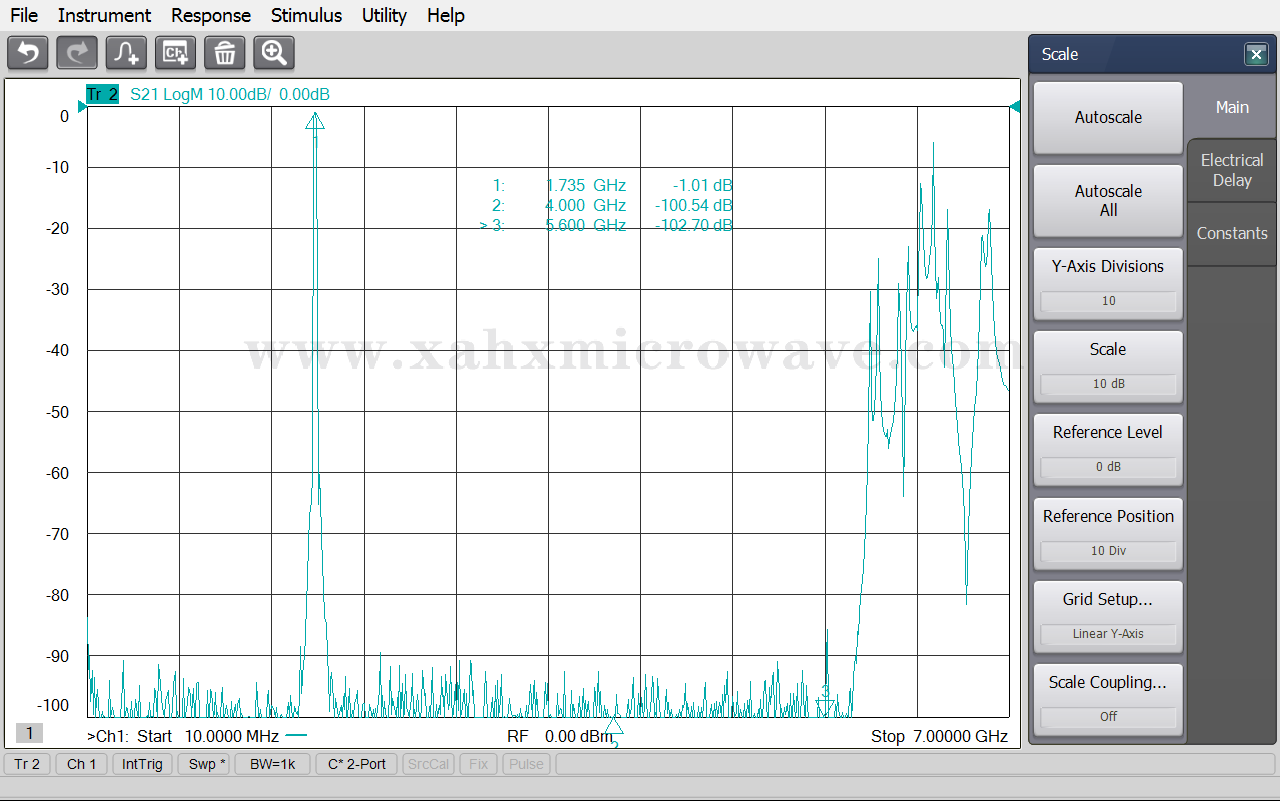

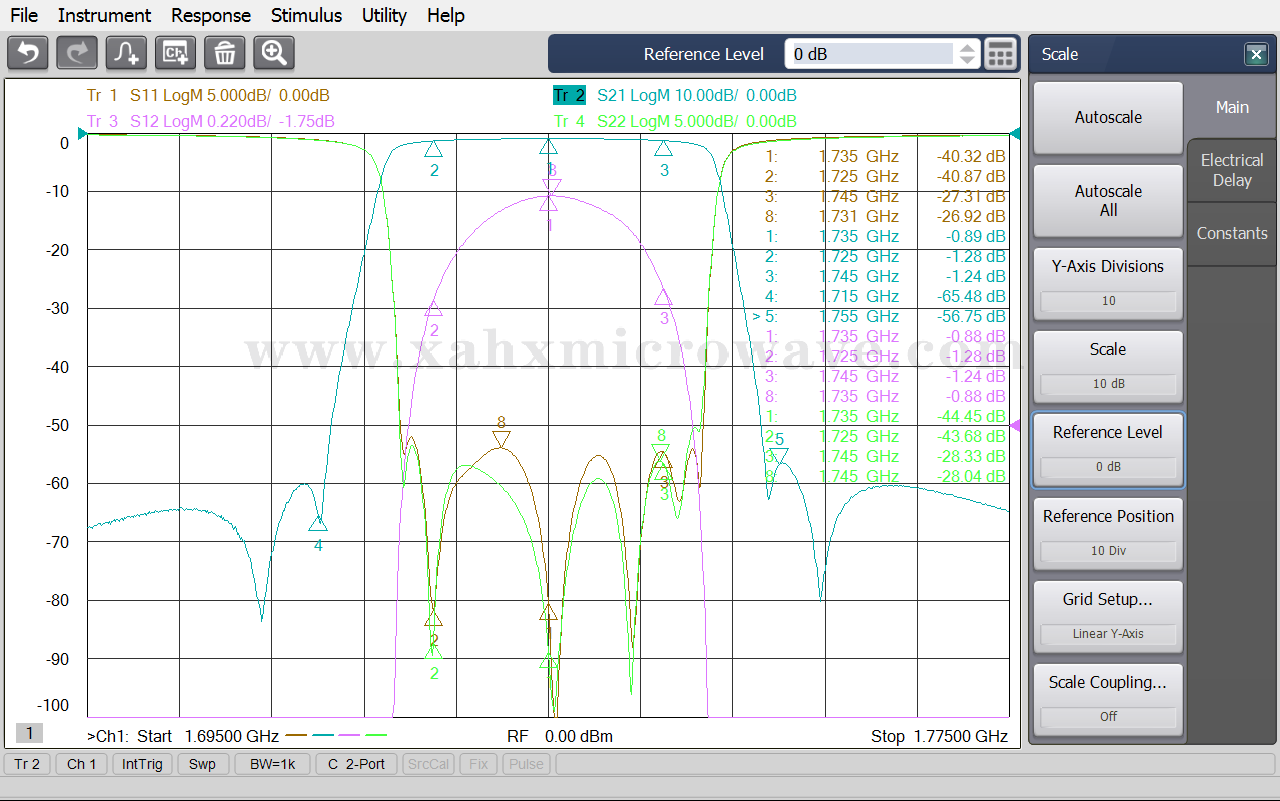

| Test Curve | |||
