| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 4100MHz |
| ● | 3dB Bandwidth | 20MHz Max. (4090 ~ 4110MHz Max.) |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 4100MHz |
| ● | Return Loss @ F0 | ≥18dB @ 4100MHz |
| ● | Stop Band Rejection | ≥50dB @ F0±70MHz (DC ~ 4030MHz , 4170 ~ 8000MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

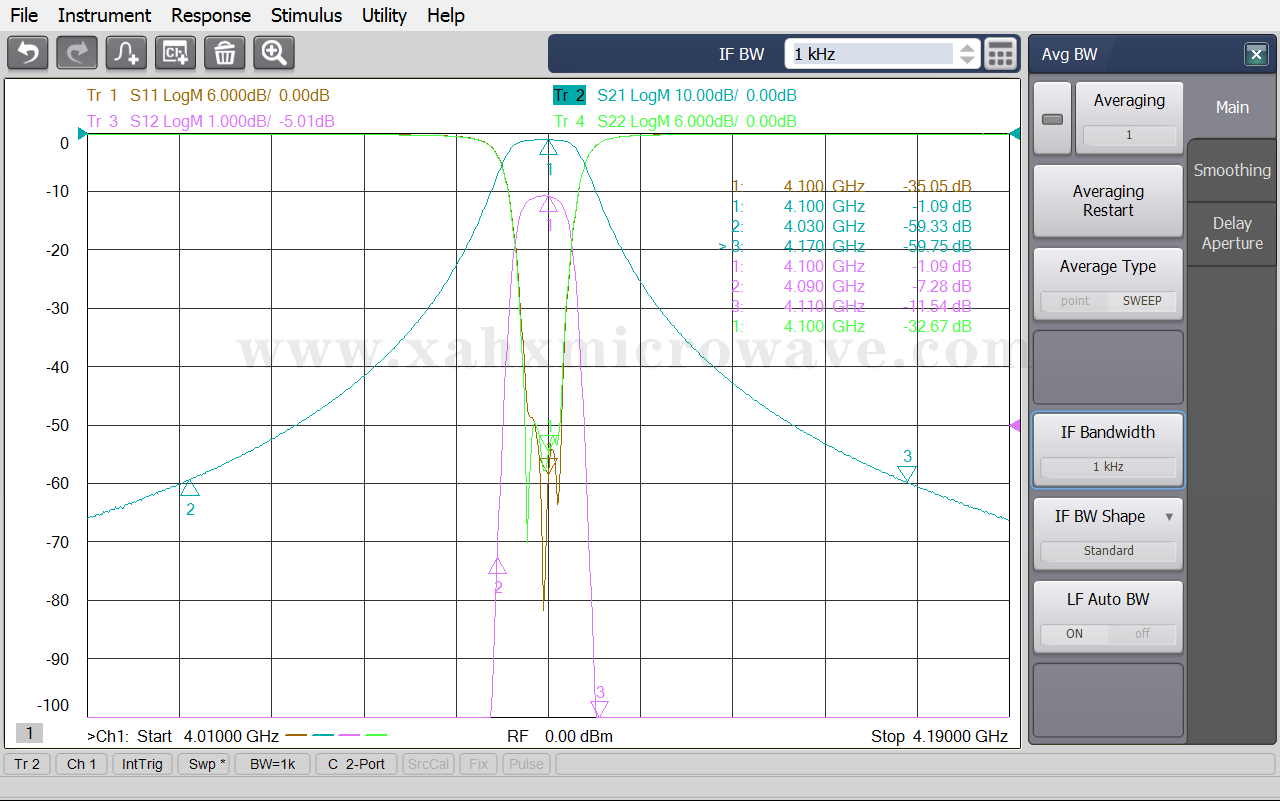

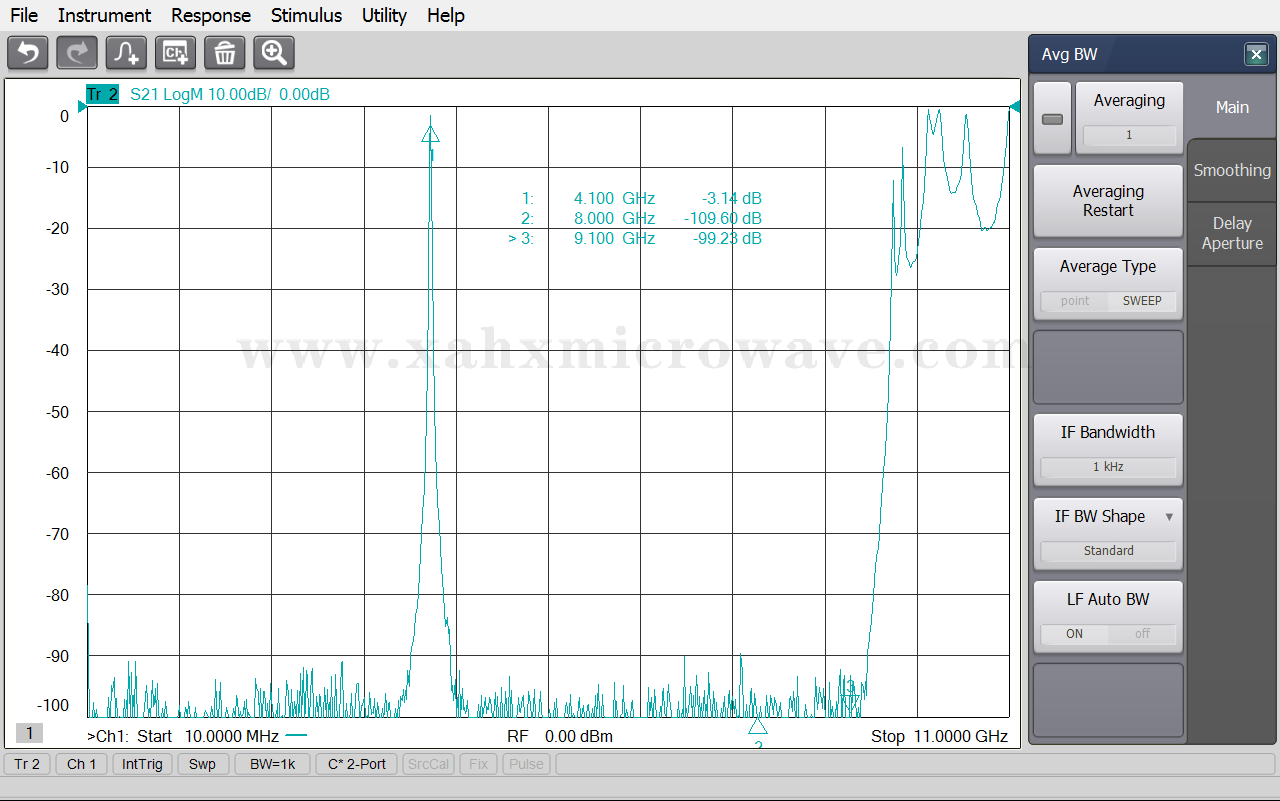

| Test Curve | ||
