| Technical Data Sheet | |||
| ● | Item | CH1 | CH2 |
| ● | Center Frequency(F0) | 2392.5MHz | 2435.5MHz |
| ● | Pass Band Frequency | 2382~2403MHz | 2425~2446MHz |
| ● | Pass Band Insertion Loss | ≤3.0dB | ≤3.0dB |
| ● | Pass Band VSWR | ≤1.40:1 | ≤1.40:1 |
| ● | Stop Band Rejection | ≥30dB @ 2412 ~ 2417MHz | ≥60dB @ DC ~ 2300MHz |
| ≥60dB @ 2530 ~ 4000MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

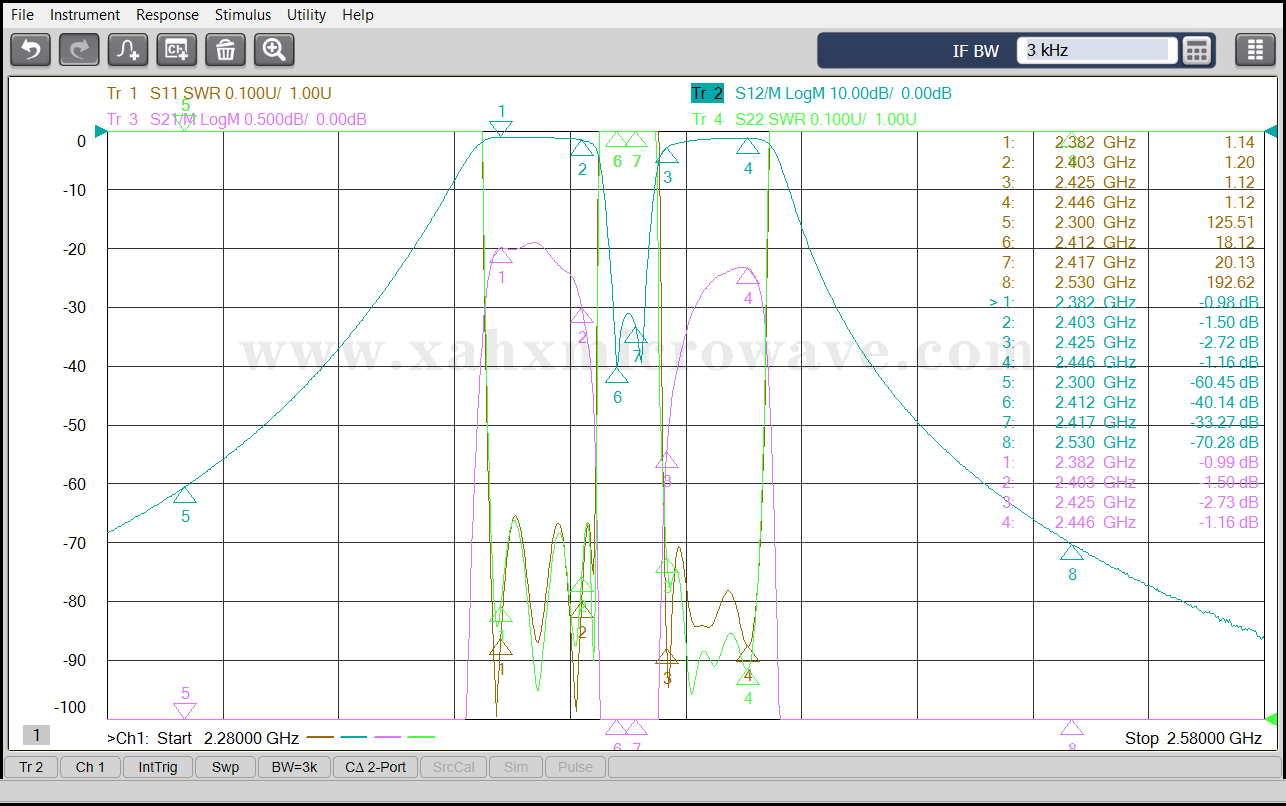

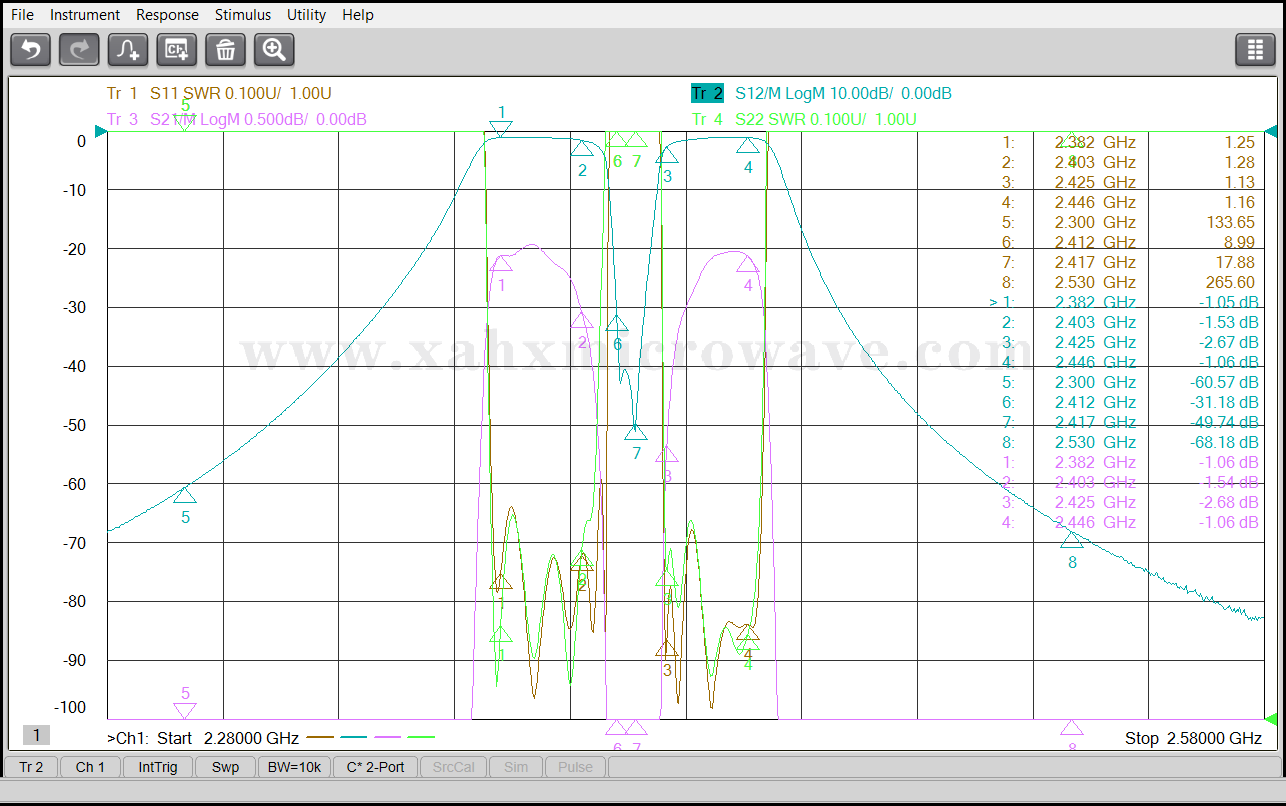

| Test Curve | |||
