| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3890MHz | |
| ● | Pass Band Bandwidth | 3800 ~ 3980MHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 3700MHz | ≥50dB @ 4080 ~ 8000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

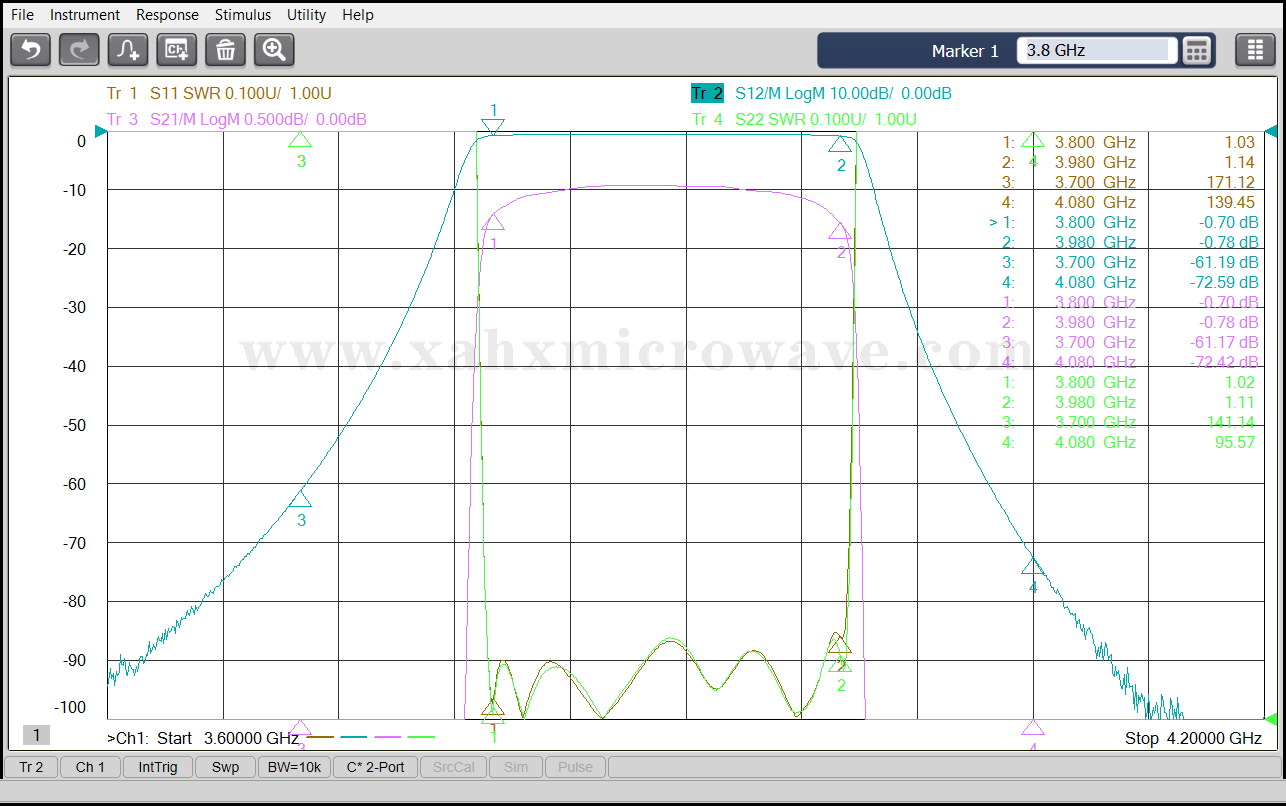

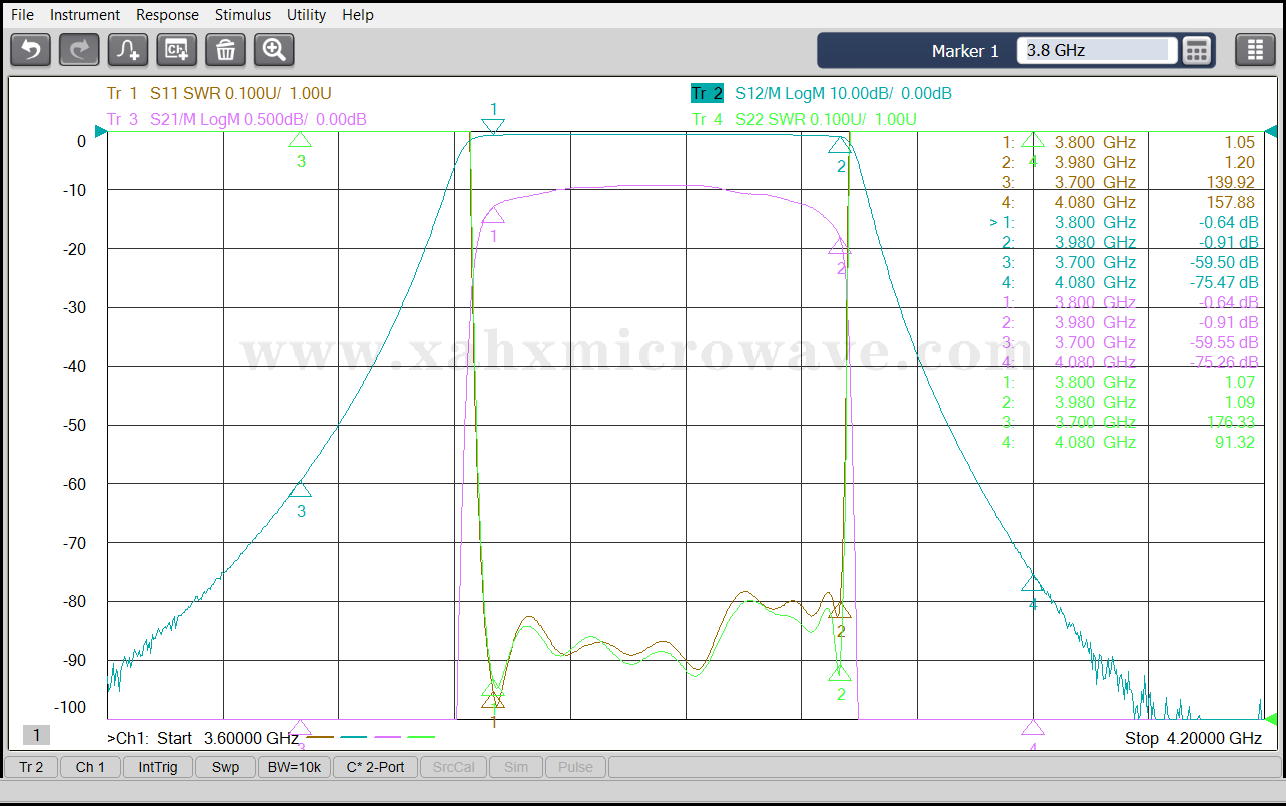

| Test Curve | |||
