| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2595MHz | |
| ● | Pass Band Bandwidth | 2500 ~ 2690MHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 2400MHz | ≥50dB @ 2790 ~ 6000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

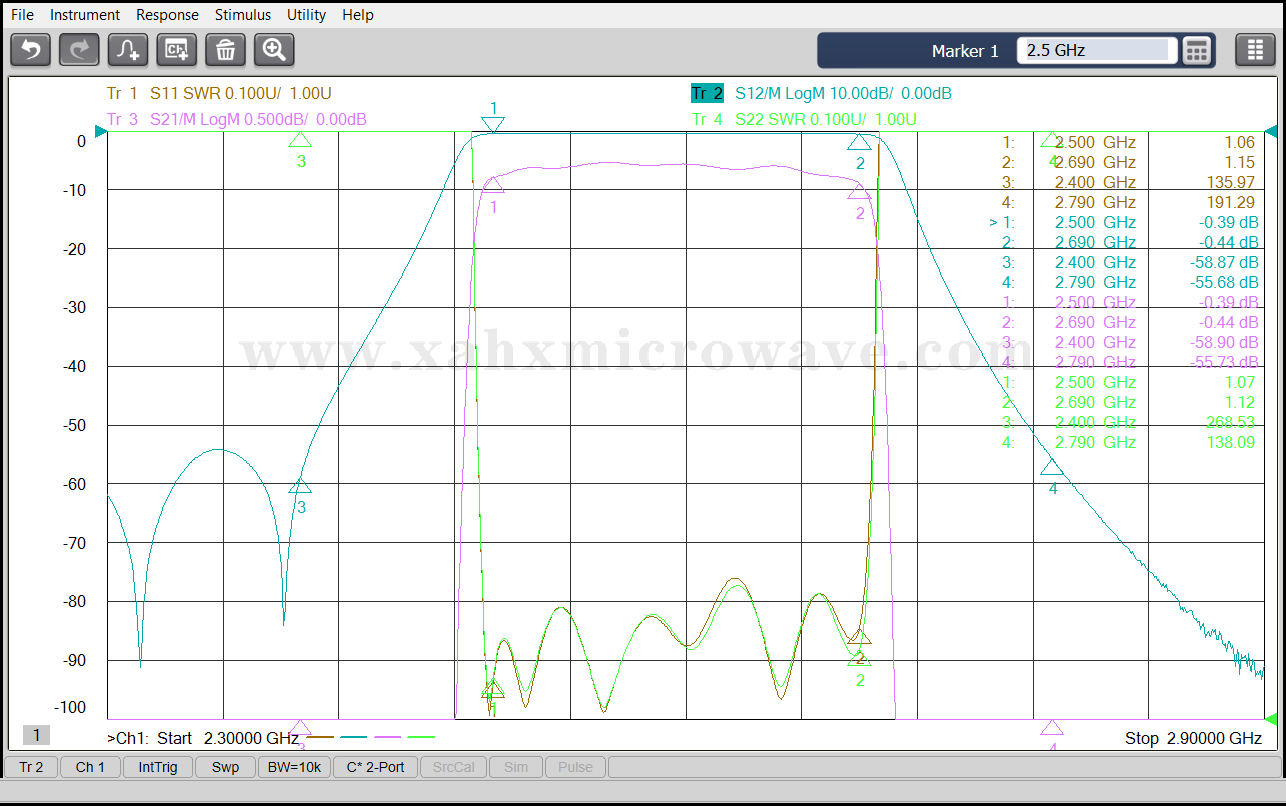

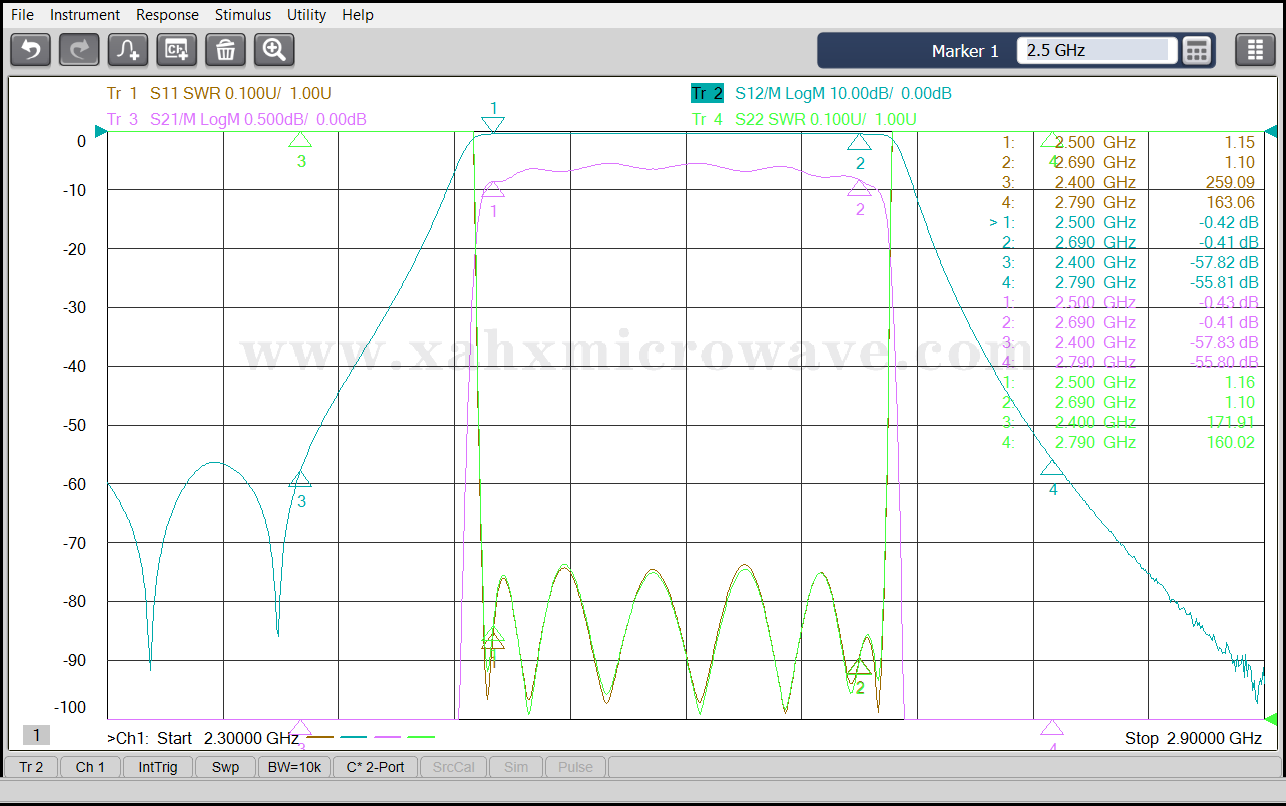

| Test Curve | |||
