| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 773MHz | |
| ● | Pass Band Frequency | 758 ~ 788MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.9dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 743MHz | ≥50dB @ 803 ~ 2000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

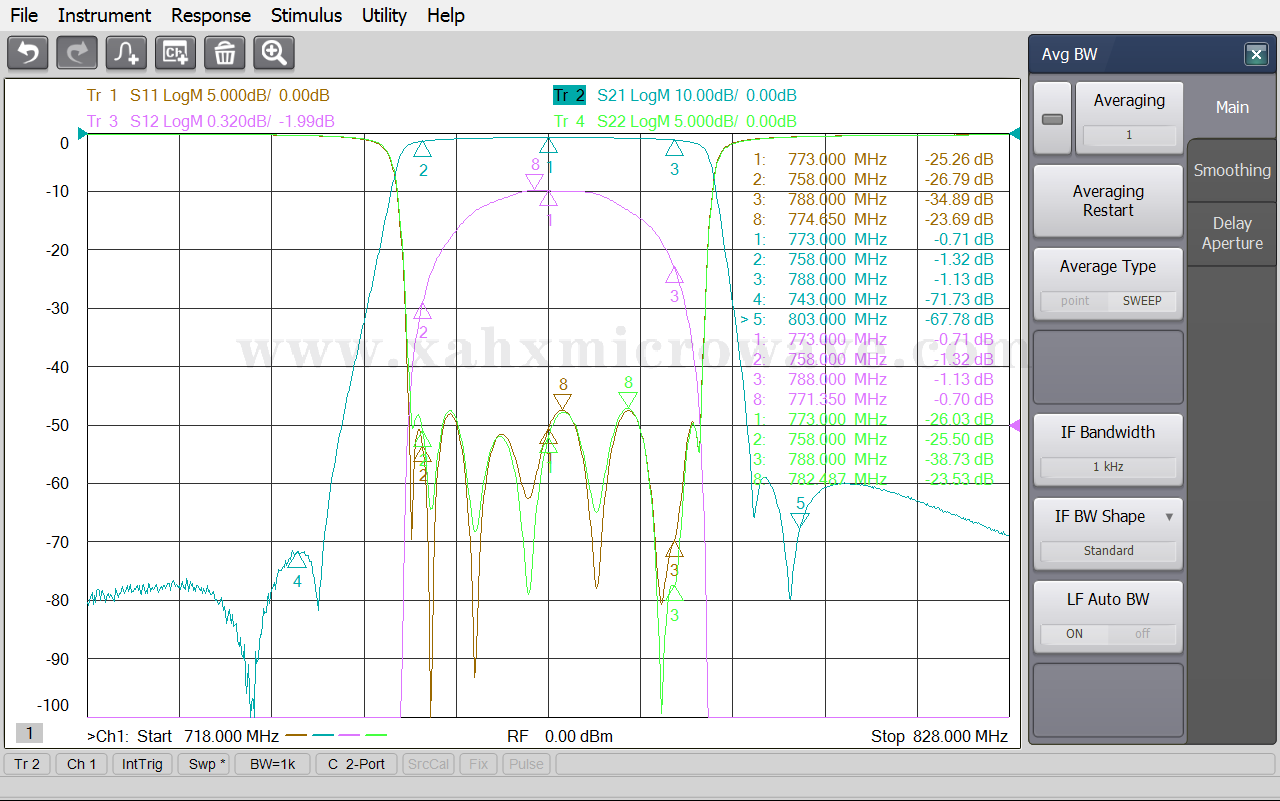

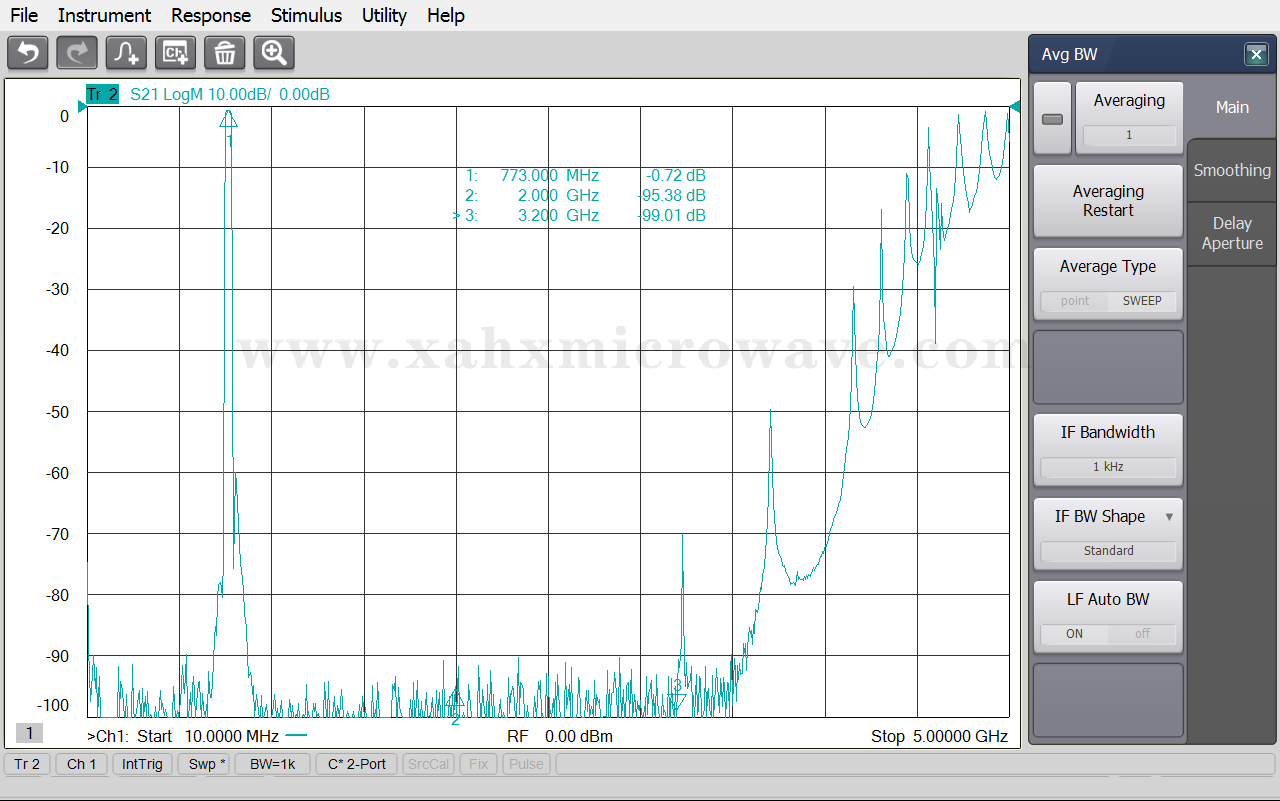

| Test Curve | |||
