  • 20GHz Cavity Band Pass Filter_19.995-20.005GHz

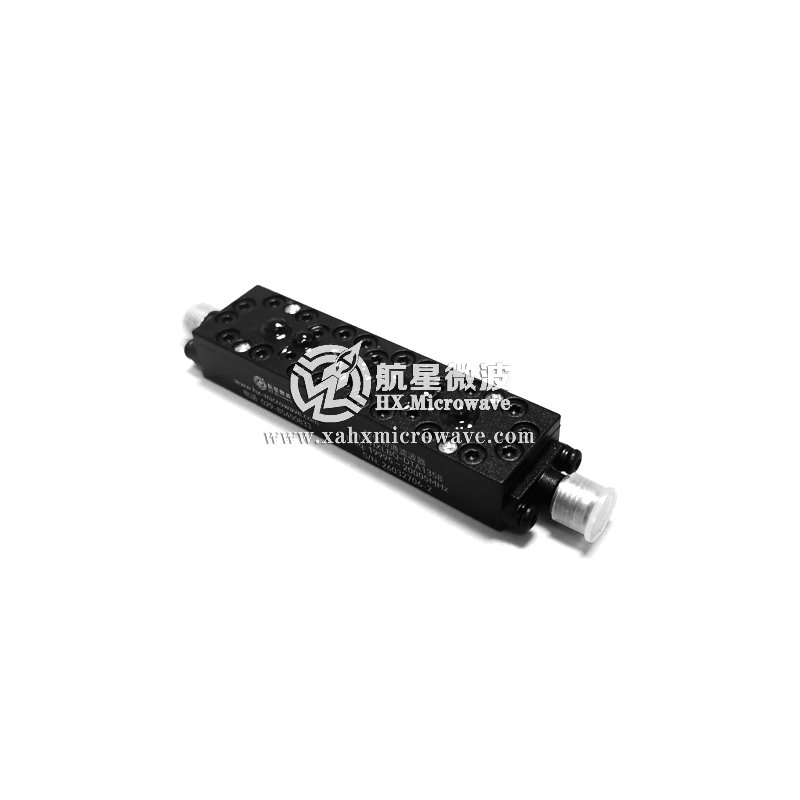

20GHz Cavity Band Pass Filter_19.995-20.005GHz

20GHz Cavity Band Pass Filter_19.995-20.005GHz

  • P/N：HXLBQ-DTA1358
  • Pass Band Frequency：19.995-20.005GHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 20000MHz
● Pass Band Bandwidth 10MHz (19995 ~ 20005MHz)
● Pass Band Insertion Loss ≤6.5dB
● Pass Band Ripple ≤1.5dB
● Pass Band Return Loss ≥18dB
● Stop Band Rejection ≥40dB @ DC ~ 19925MHz ≥40dB @ 20075 ~ 27000MHz
● Impedance 50 Ohms
● Power Handling 5.0W Max.
● Connectors SMA-Female
● Surface Finish Painted Black

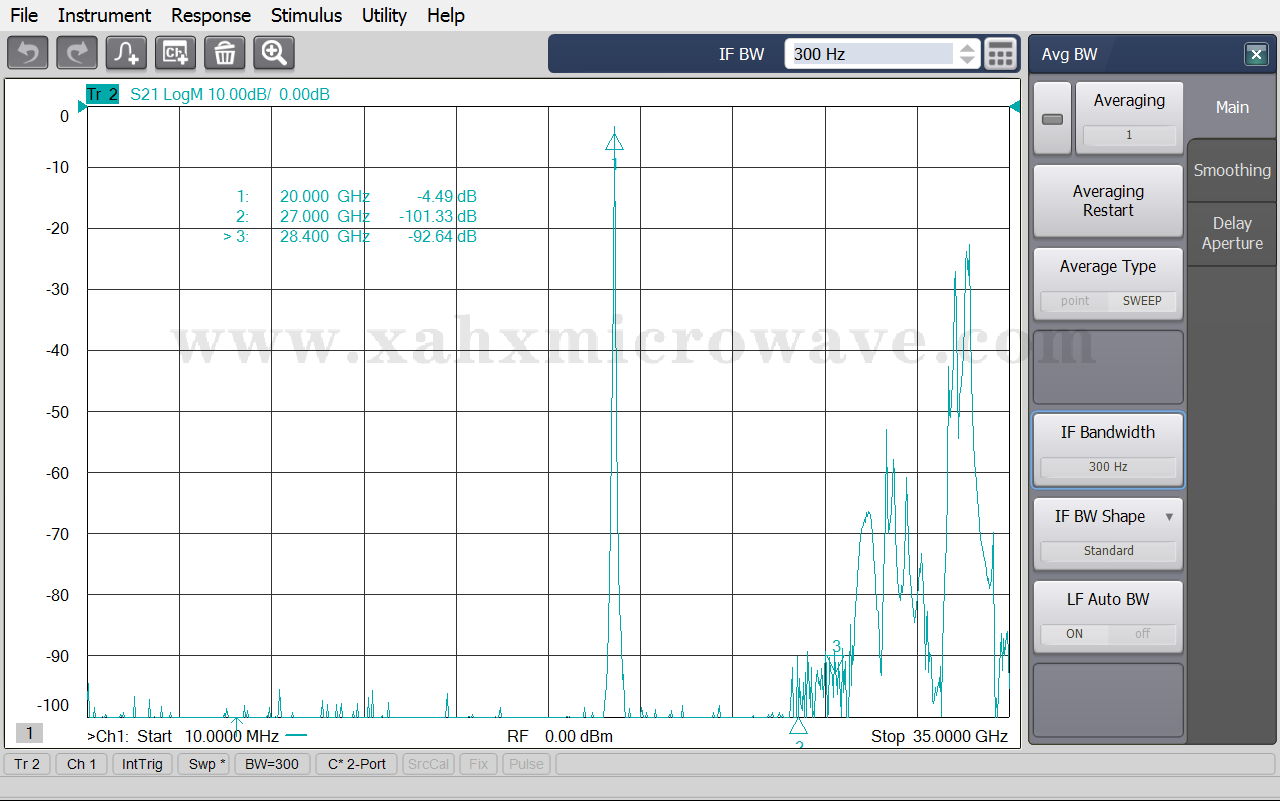

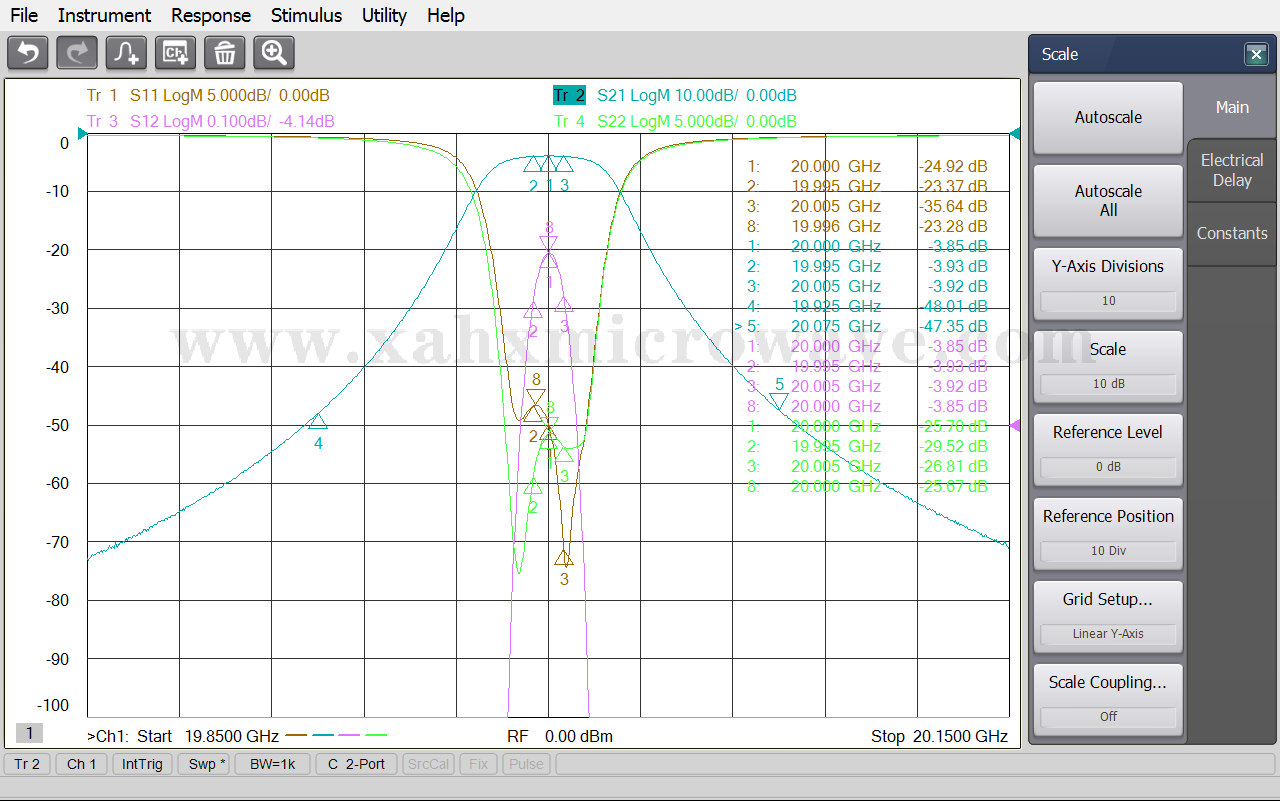

Test Curve
