| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 500MHz | |
| ● | Pass Band Bandwidth | 5.0MHz (497.5 ~ 502.5MHz) | |
| ● | Pass Band Insertion Loss | ≤1.2dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band VSWR | ≤1.25:1 | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 493MHz | ≥40dB @ 507 ~ 2500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

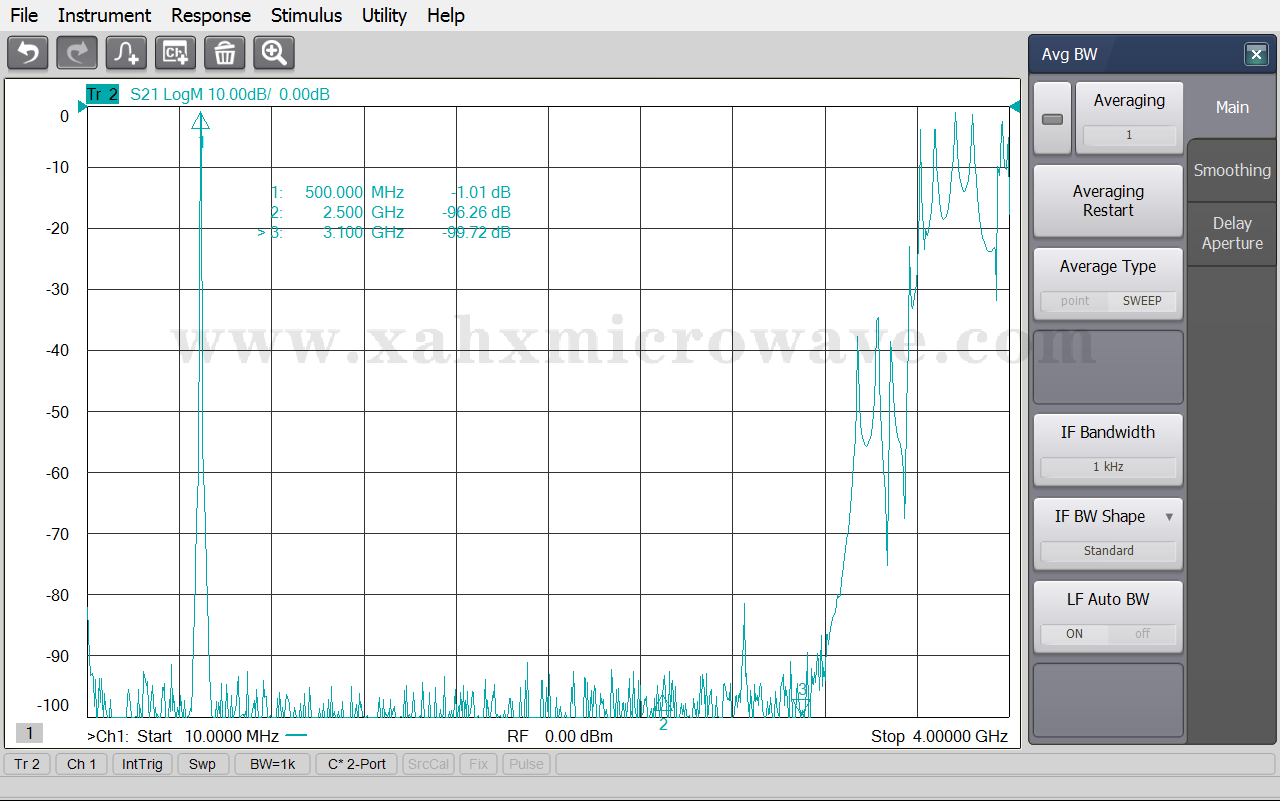

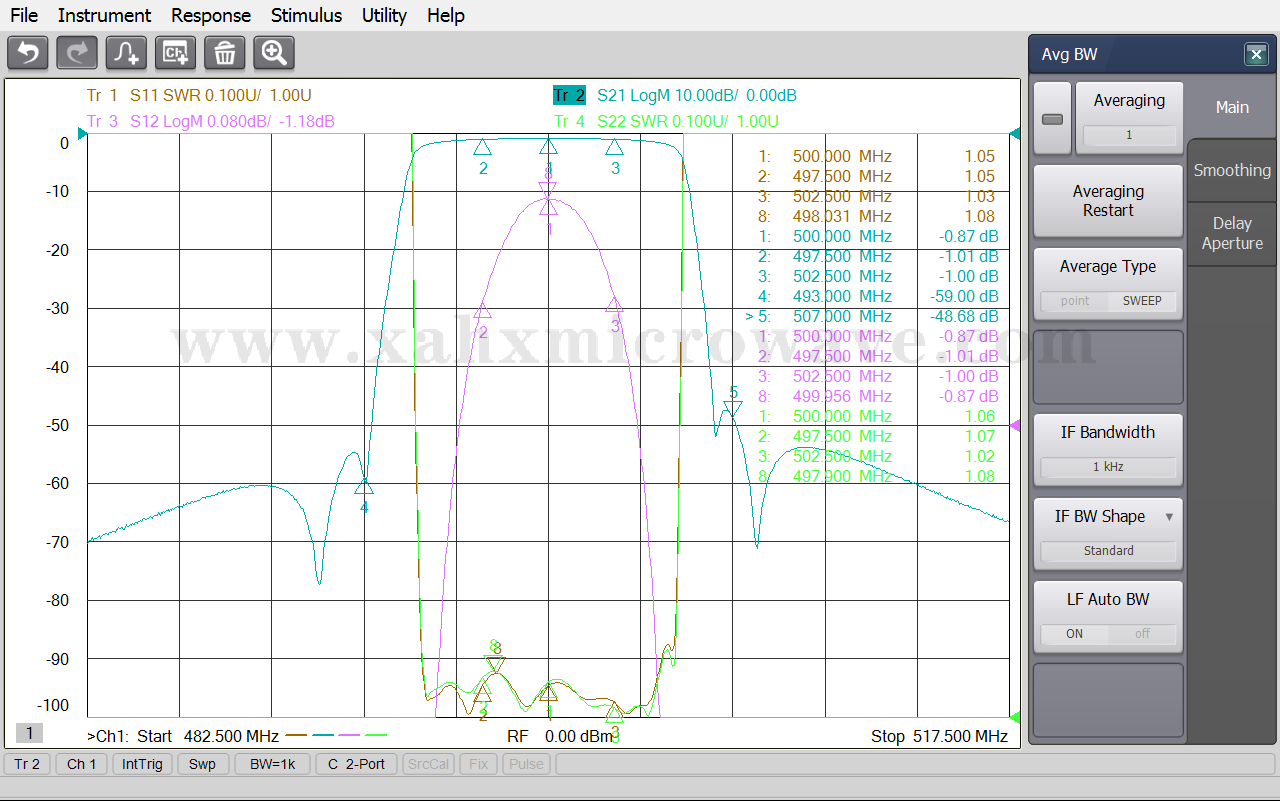

| Test Curve | |||
