| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 4500MHz | |
| ● | Pass Band Frequency | 4475 ~ 4525MHz | |
| ● | Pass Band Insertion Loss | ≤1.7dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 4300MHz | ≥80dB @ 4700 ~ 9000MHz |
| ≥50dB @ 9000 ~ 13500MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

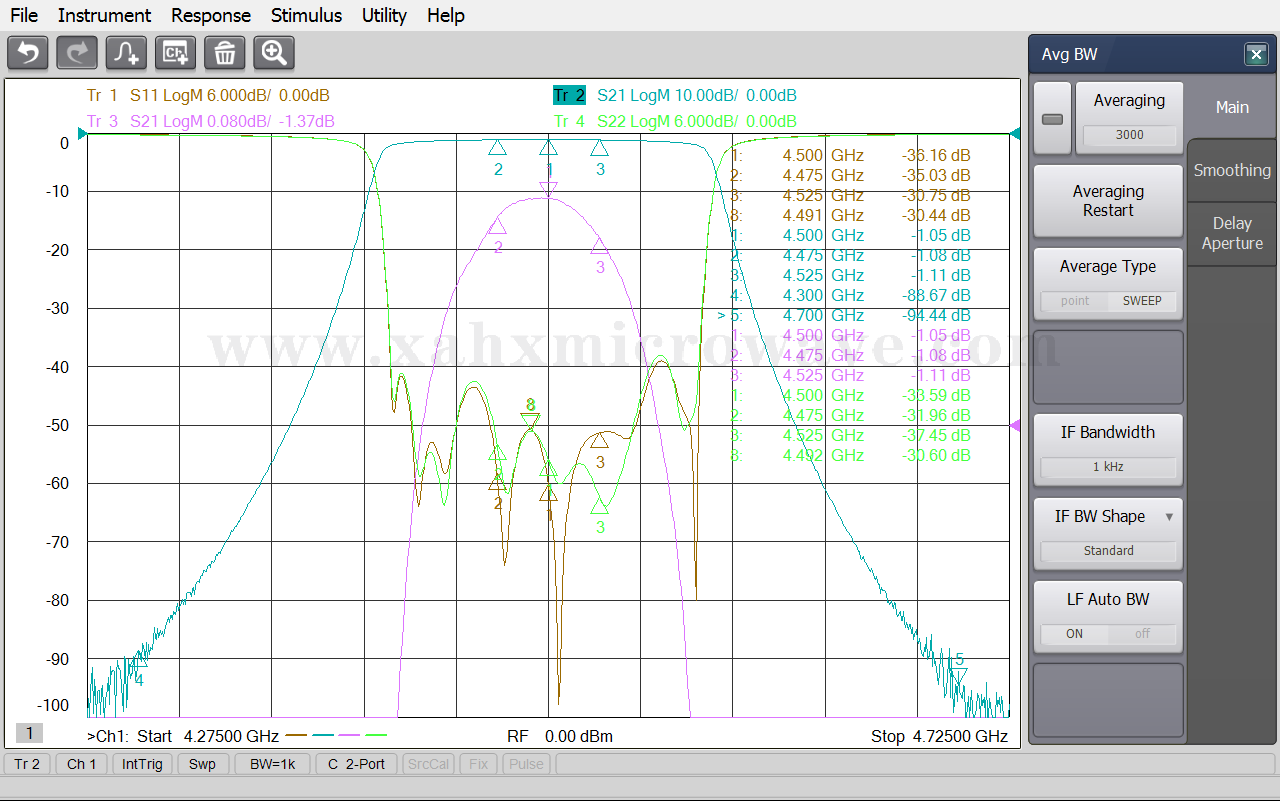

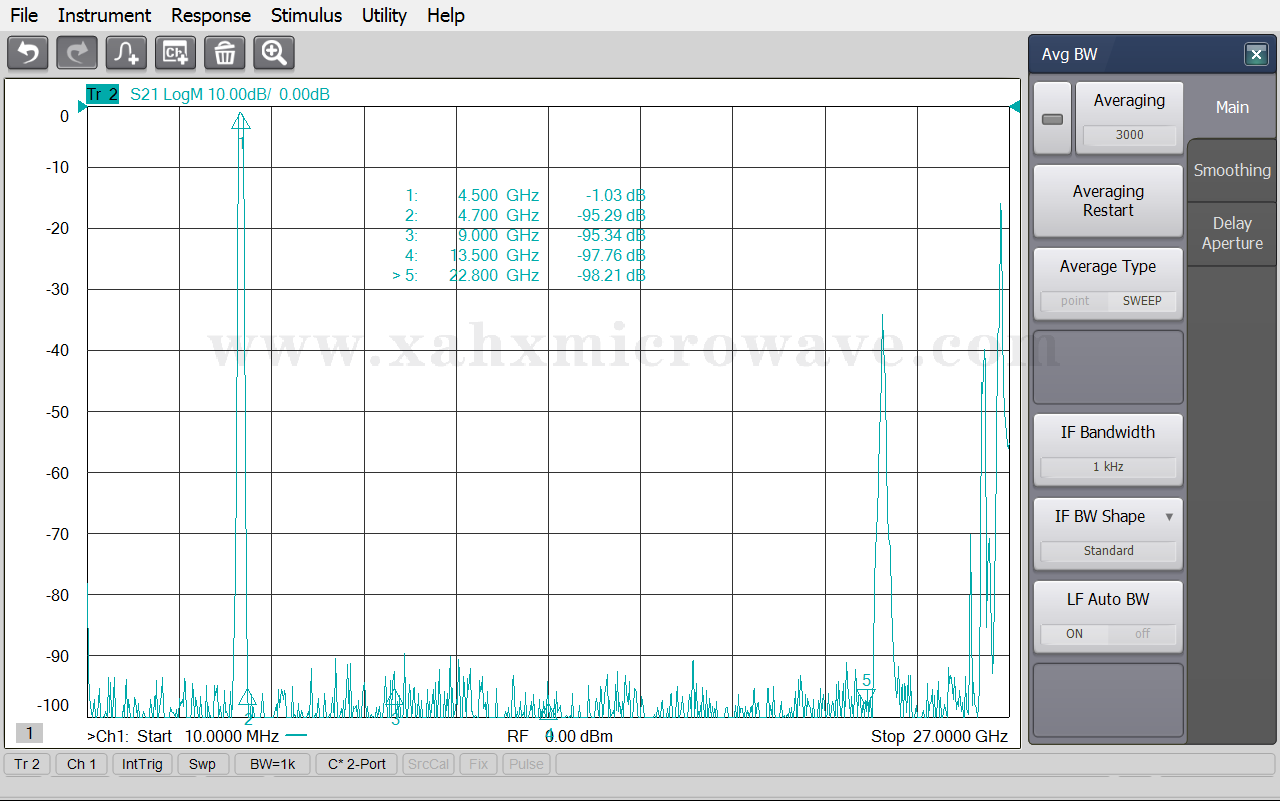

| Test Curve | |||
