| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 864MHz | |
| ● | Pass Band Frequency | 814 ~ 914MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤1.3dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥30dB @ DC ~ 804MHz | ≥30dB @ 924 ~ 2000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

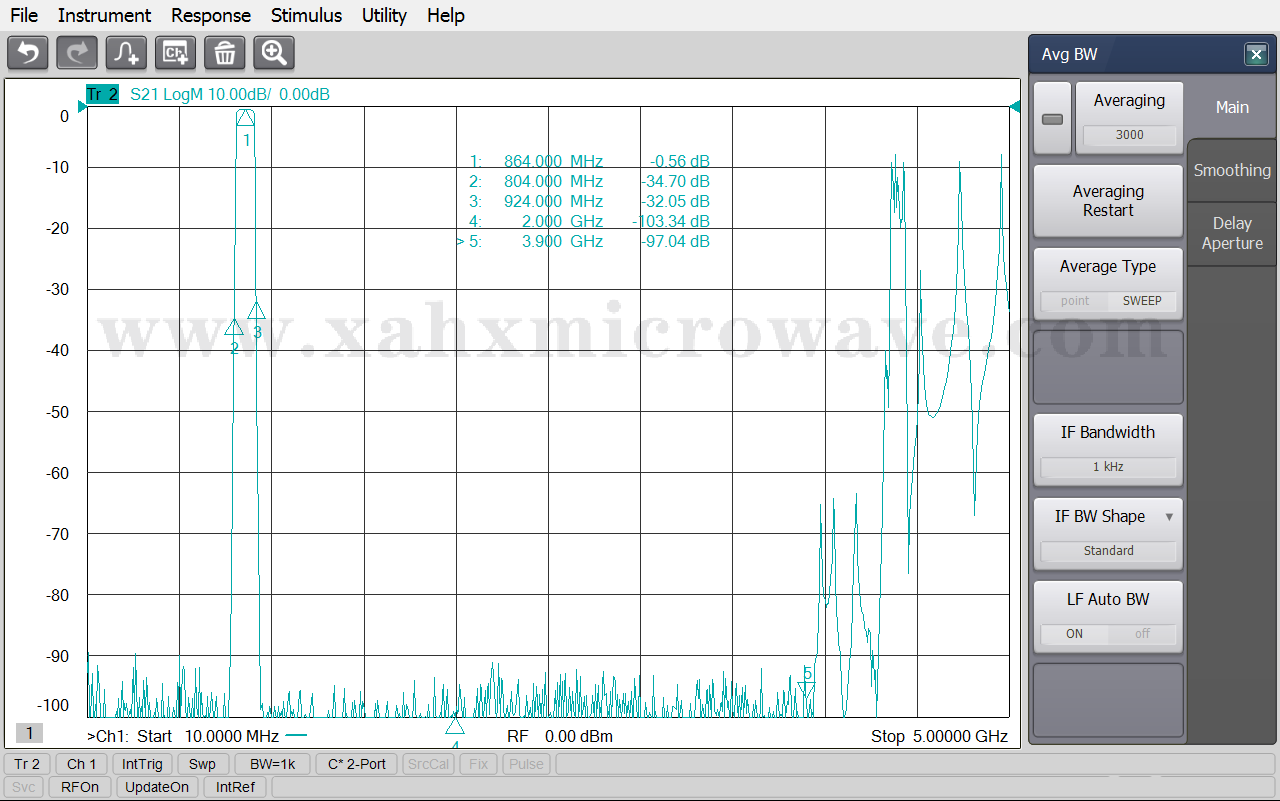

| Test Curve | |||
