| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1560MHz | |
| ● | 3.0dB Bandwidth | 14MHz Max. (1553 ~ 1567MHz Max.) | |
| ● | Insertion Loss @ F0 | ≤2.5dB @ 1560MHz | |
| ● | Return Loss @ F0 | ≥18dB @ 1560MHz | |
| ● | Stop Band Rejection | ≥55dB @ DC ~ 1530MHz | ≥55dB @ 1590 ~ 5000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 50W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | +10℃ ~ +30℃ | |

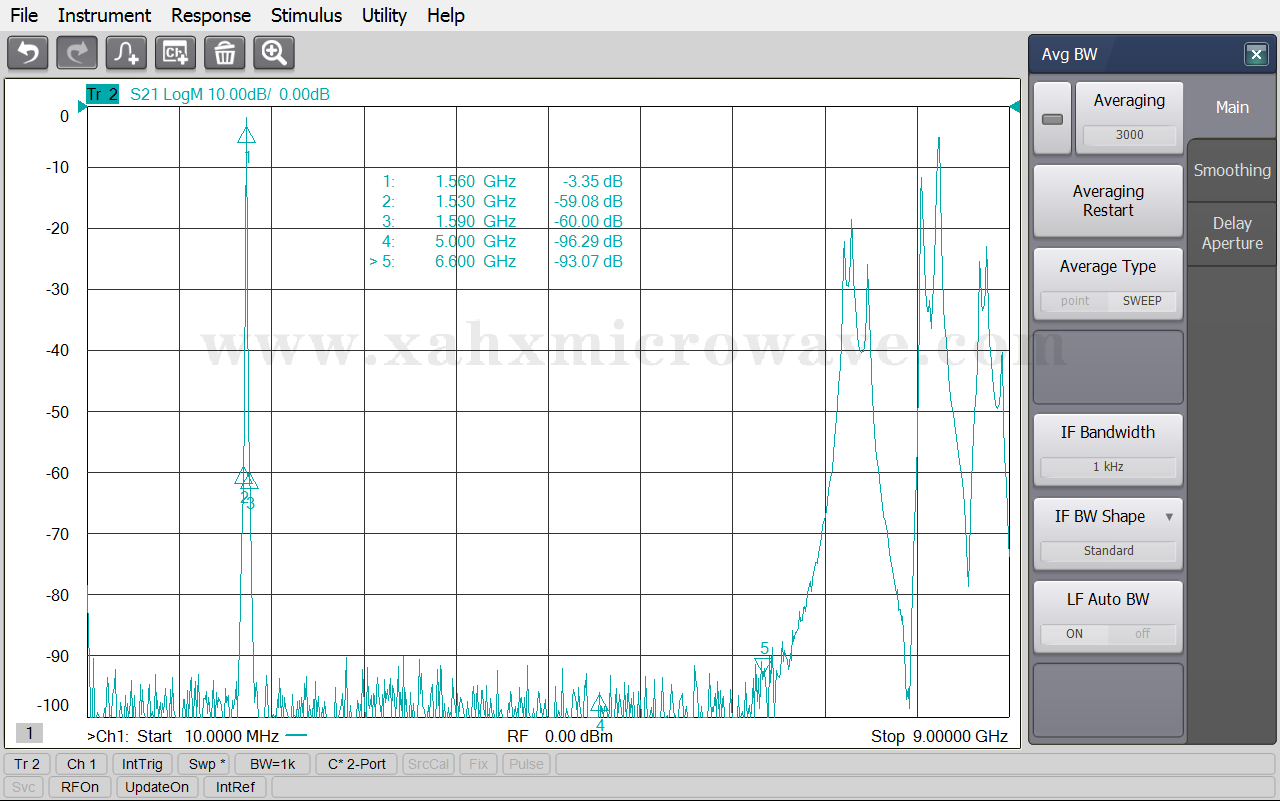

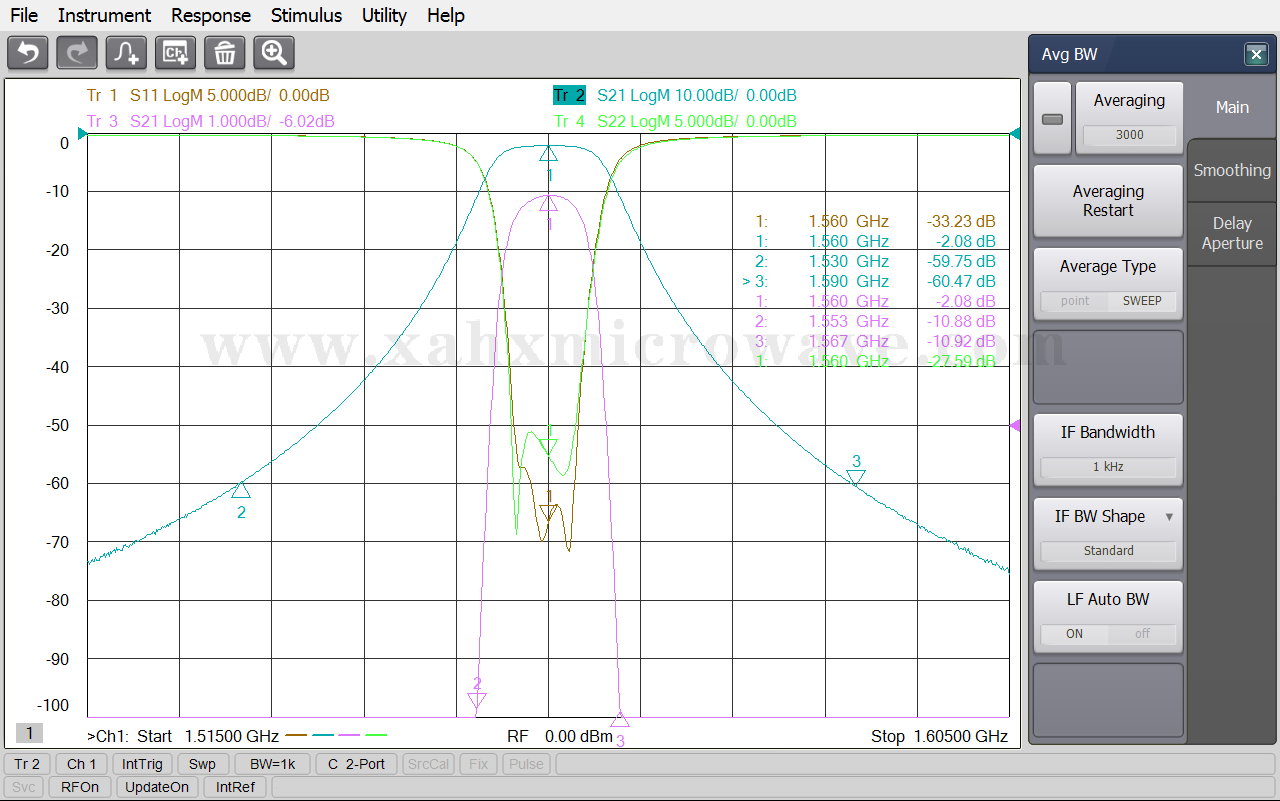

| Test Curve | |||
