Technical Data Sheet
●	Center Frequency(F0)	9000MHz
●	Pass Band Frequency	5000 ~ 13000MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥11dB
●	Stop Band Rejection	≥40dB @ DC ~ 4000MHz	≥30dB @ 14000 ~ 15500MHz
●	Impedance	50 Ohms
●	Power Handling	2.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

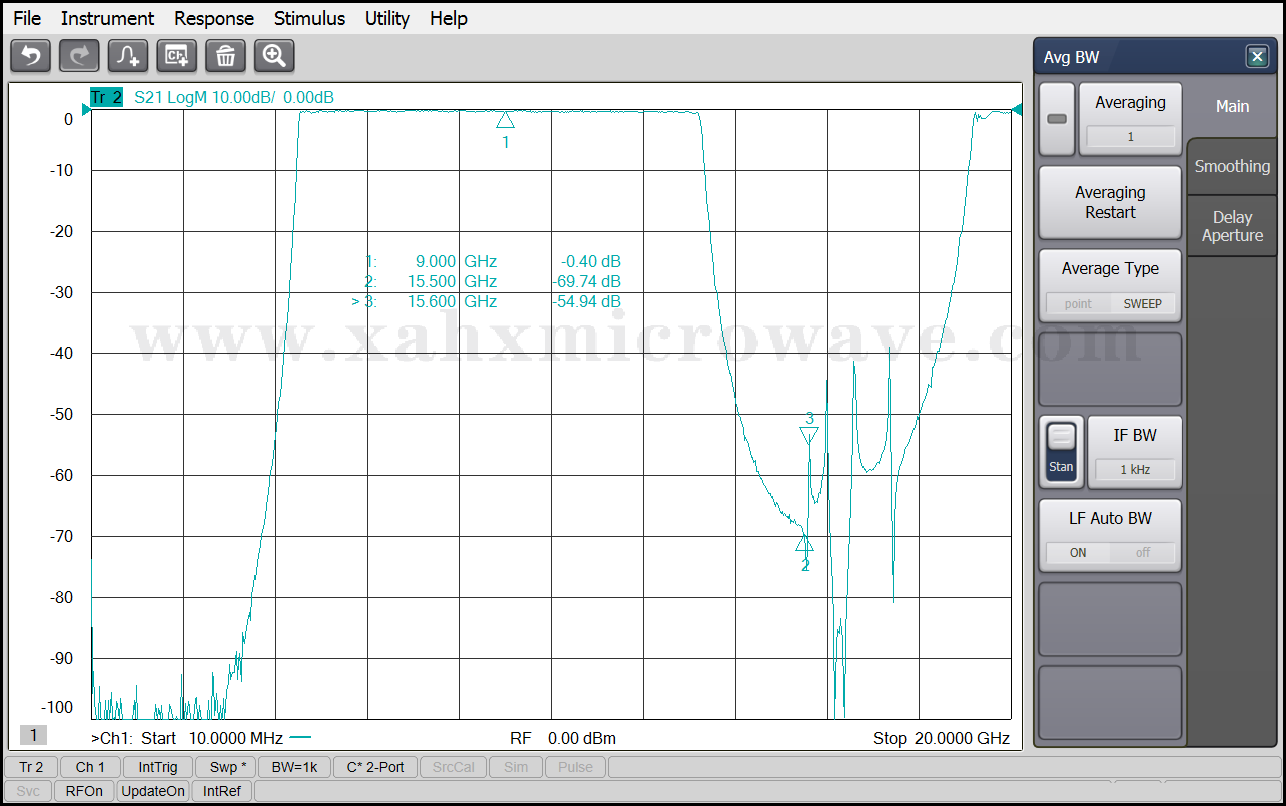

Test Curve
