| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 3550MHz | 4900MHz |
| ● | Pass Band Frequency | 3300 ~ 3800MHz | 4800 ~ 5000MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | Pass Band Ripple | ≤0.7dB | ≤0.7dB |
| ● | VSWR | ≤1.50:1 | ≤1.50:1 |
| ● | Ports Isolation | ≥80dB @ 4800 ~ 5000MHz | ≥80dB@3300 ~ 3800MHz |
| ● | Stop Band Rejection | ≥80dB @ DC~ 2700MHz | ≥80dB @ DC~ 2700MHz |
| ● | Impedance | 50 Ohms | |
| ● | Average Power | 50W Max. | |
| ● | Connectors | SMA-Female@TX RX N-Female@ANT | |

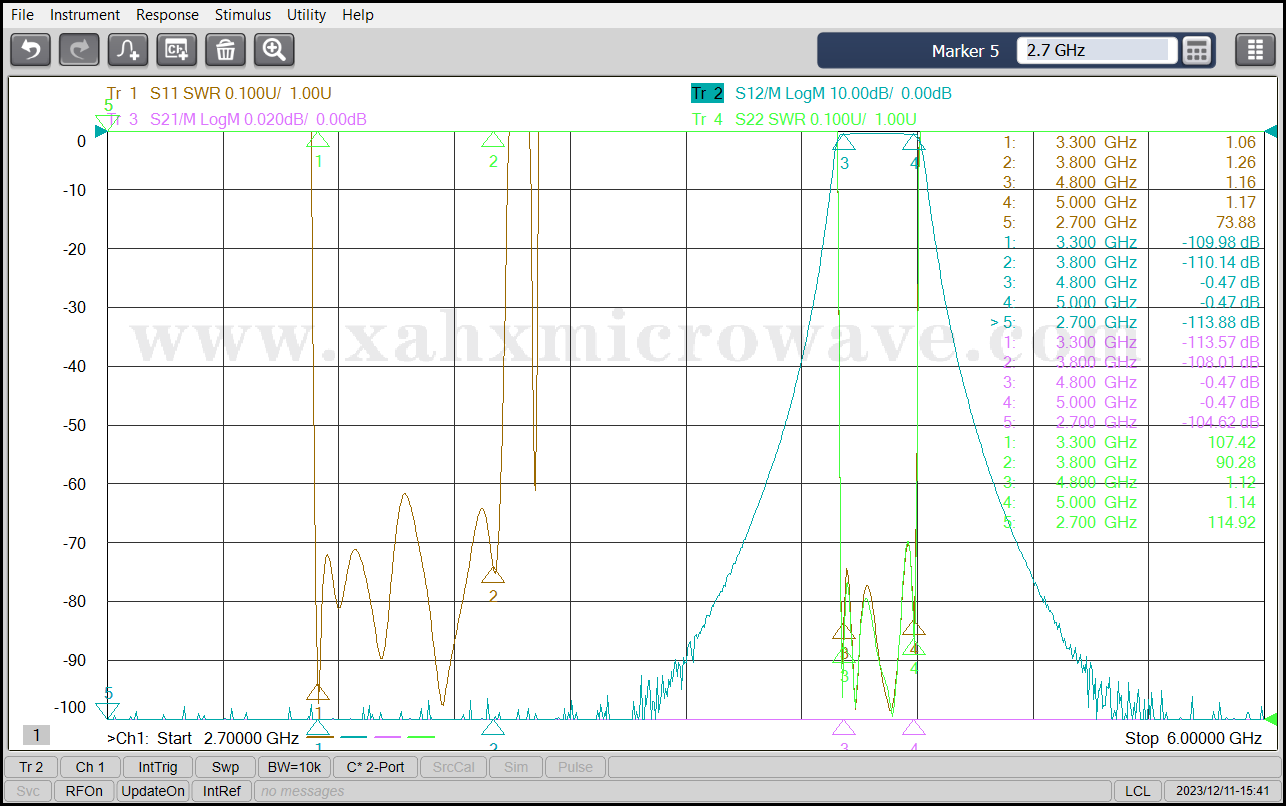

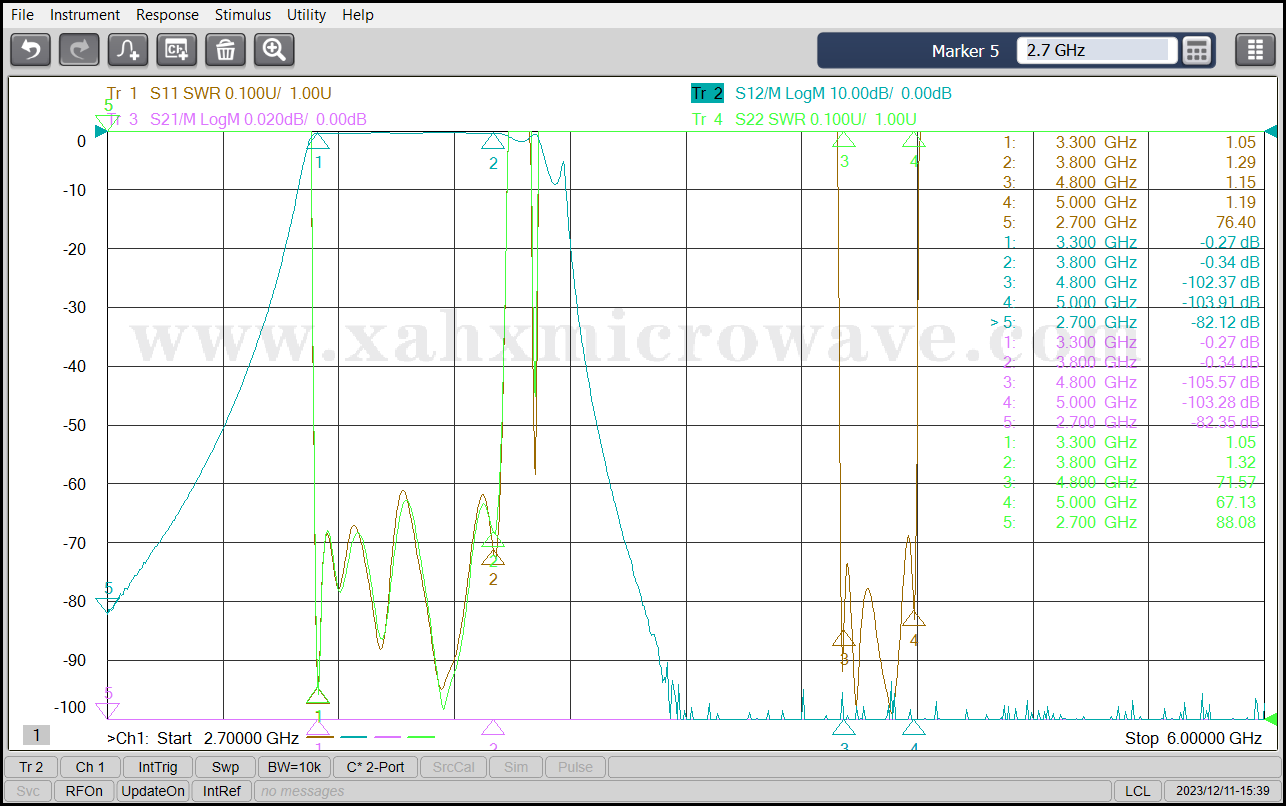

| Test Curve | |||
