Diplexer / Duplexer

  • 2095-2175MHz 2295-2500MHz Cavity Diplexer
2095-2175MHz 2295-2500MHz Cavity Diplexer

2095-2175MHz 2295-2500MHz Cavity Diplexer

  • P/N:HXHLQ-H2A39
  • Pass Band Frequency:2095-2175MHz 2295-2500MHz
  • Isolation:≥70dB
  • Connectors:N-Female
  • Product description: ♦isolation of high,high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download

Cavity Diplexer

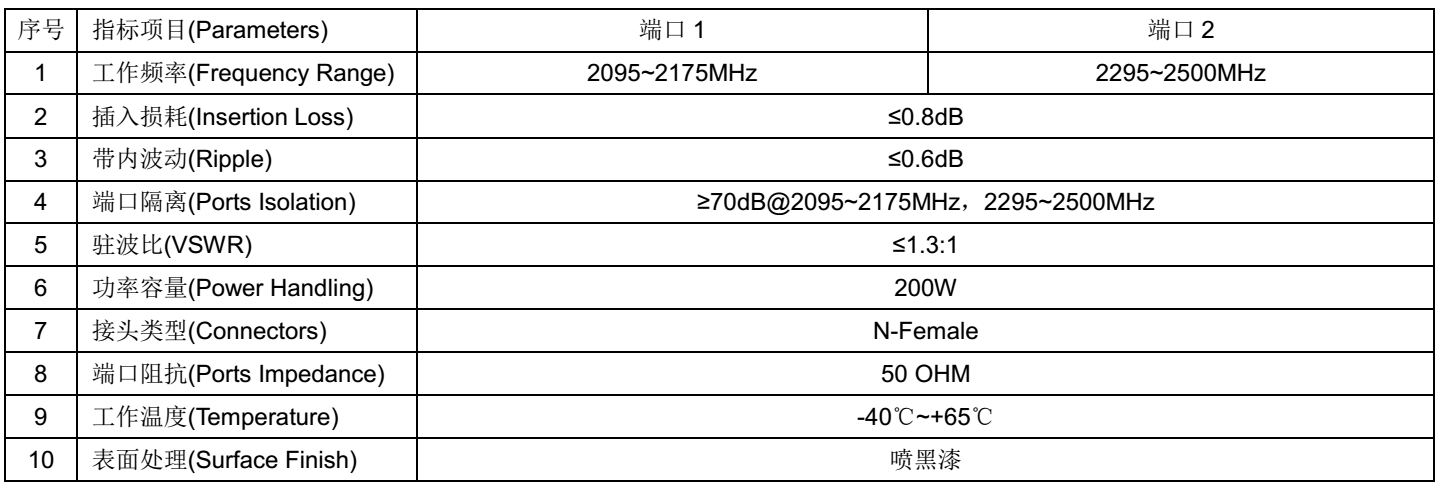

Technical Data Sheet

S/N

Item

Parameters

P1

P2

1

Pass Band Frequency

2095 ~ 2175MHz

2295 2500MHz

2

Pass Band Insertion Loss

0.8dB

0.8dB

3

Pass Band Ripple

≤0.6dB

≤0.6dB

4

VSWR

1.30:1

1.30:1

5

Ports Isolation

70dB @ 2295 2500MHz

70dB @2095 ~ 2175MHz

6

Impedance

50 Ohms

7

Average Power

200W Max.

8

Connectors

N-Female
