Diplexer / Duplexer

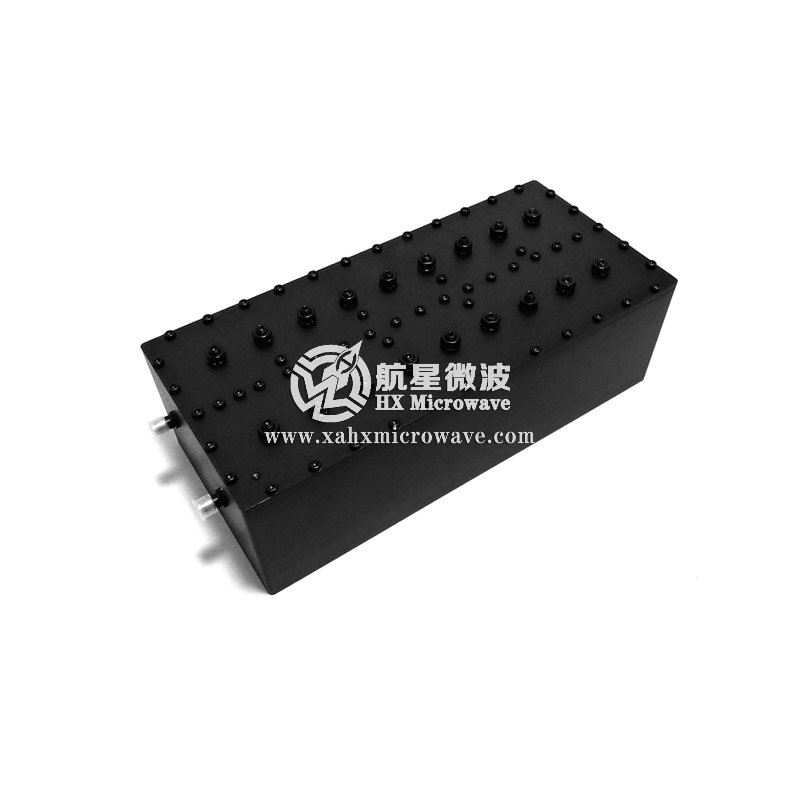

542-562MHz 658-678MHz Cavity Diplexer

P/N：HXHLQ-H2A38
Pass Band Frequency：542-562MHz 658-678MHz
Isolation：≥60dB
Connectors：SMA-Female
Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
PDF technical index download

S/N	Item	Parameters
S/N	Item	RX	TX
1	Center Frequency(F0)	552MHz	668MHz
2	Pass Band Frequency	542 ~ 562MHz	658 ~ 678MHz
3	Pass Band Insertion Loss	≤1.0dB	≤1.0dB
4	Pass Band VSWR	≤1.3:1	≤1.3:1
5	Isolation	≥70dB @ 542 ~ 562MHz , 658 ~ 678MHz
6	Impedance	50 Ohms
7	Power	80W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Port Sign	Port 1: ANT ; Port 2: RX ; Port 3: TX
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
13	Dimensions	2009262mm
