Diplexer / Duplexer

  • 1745-1780MHz_1840-1875MHz Cavity Diplexer
1745-1780MHz_1840-1875MHz Cavity Diplexer

1745-1780MHz_1840-1875MHz Cavity Diplexer

  • P/N：HXHLQ-H2A18
  • Pass Band Frequency：1745-1780MHz_1840-1875MHz
  • Stop Band Attenuation：≥70dB
  • Connectors：SMA-Female
  • Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download

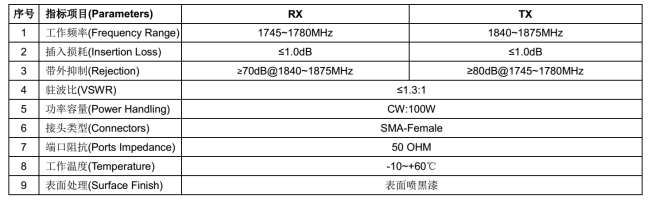

Technical Data Sheet
S/N Item RX TX
● Pass Band Frequency 1745 ~ 1780MHz 1840 ~ 1875MHz
● Pass Band Insertion Loss ≤1.0dB ≤1.0dB
● VSWR ≤1.30:1 ≤1.30:1
● Stop Band Attenuation ≥70dB @ 1840 ~ 1875MHz ≥70dB @ 1745 ~ 1780MHz
● Impedance 50 Ohms
● Average Power 100W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -10℃ ~ +60℃
● Dimensions 89*117*34mm
● Working Environment Indoor
Test Curve
