8 way Microstrip Power Divider

  • 6-18GHz 8 Way Power Divider

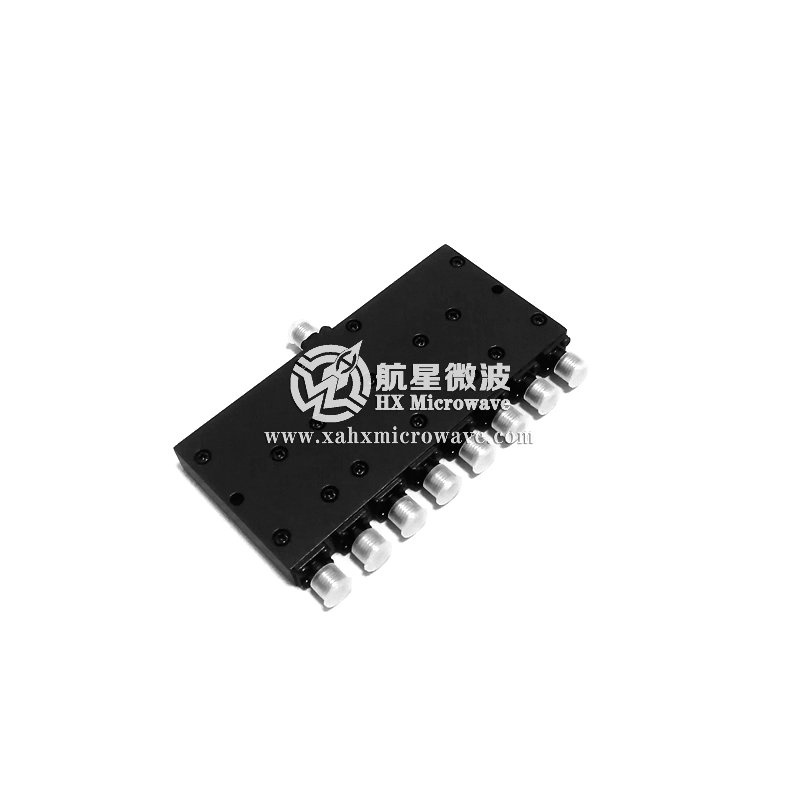

6-18GHz 8 Way Power Divider

6-18GHz 8 Way Power Divider

  • P/N:HXGF-G8A17
  • Frequency Range:6-18GHz
  • Isolation:≥16dB
  • Connectors:SMA-Female
  • Product description: ♦High isolation ♦Small insertion loss ♦Small size ♦Working frequency bandwidth ♦Size can be customized ♦Various frequency bands (DC-70GHz frequency range) can be customized according to customer requi
  • PDF technical index download

8 Way Power Divider
Specifications

Serial

Parameters

1

Way

8

2

Frequency Range

618GHz

3

Insertion Loss

11.0dB (Contain theory loss 9 dB)

4

VSWR

1.6:1

5

Isolation

16dB

6

Amplitude Balance

±0.8dB

7

Phase Balance

±10°

8

Power Handling

Forward 20Watt ; Reversed 0.5Watt

9

Operating Temperature

-55~+85℃

10

Surface Finish

Black Paint

11

Connectors

SMA-Female
