| Technical Data Sheet | ||
| ● | Way | 2 |
| ● | Frequency Range | 0.4 ~ 6.0GHz |
| ● | Insertion Loss | ≤1.2dB (Does not contain theory loss 3.01dB) |
| ● | VSWR | Input: ≤1.4:1 ; Output: ≤1.3:1 |
| ● | Amplitude Balance | ≤ ±0.3dB |
| ● | Phase Balance | ≤ ±3° |
| ● | Isolation | ≥18dB |
| ● | Impedance | 50 Ohms |
| ● | Power | Forward: 30W Max. ; Reverse: 1.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -40℃ ~ +80℃ |

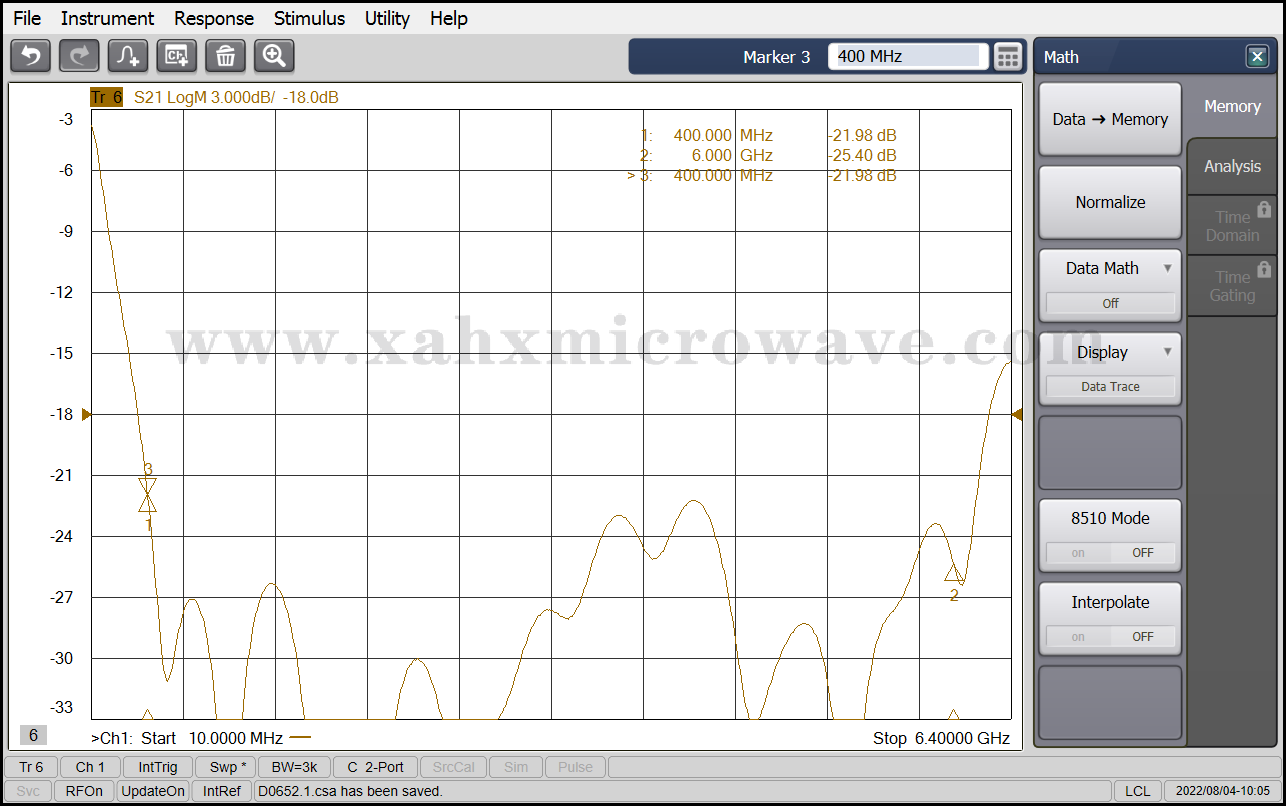

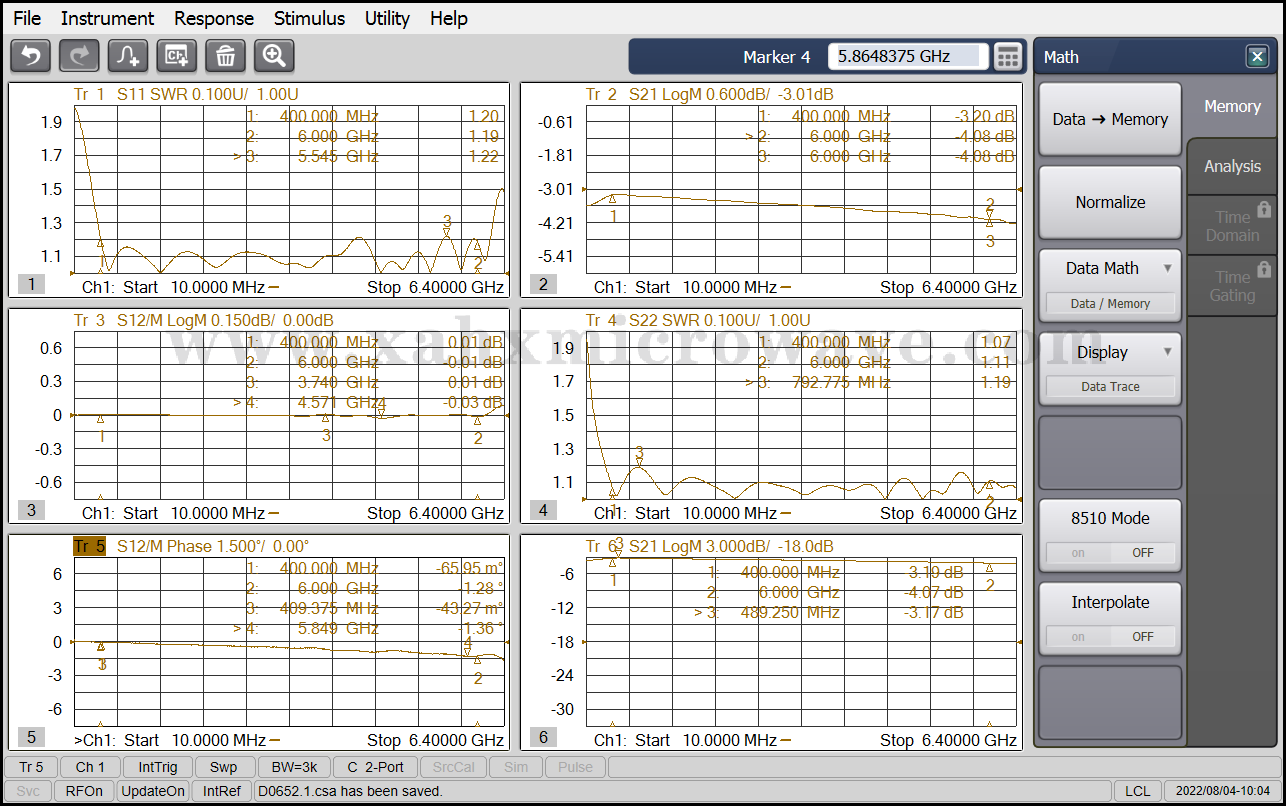

| Test Curve | ||
