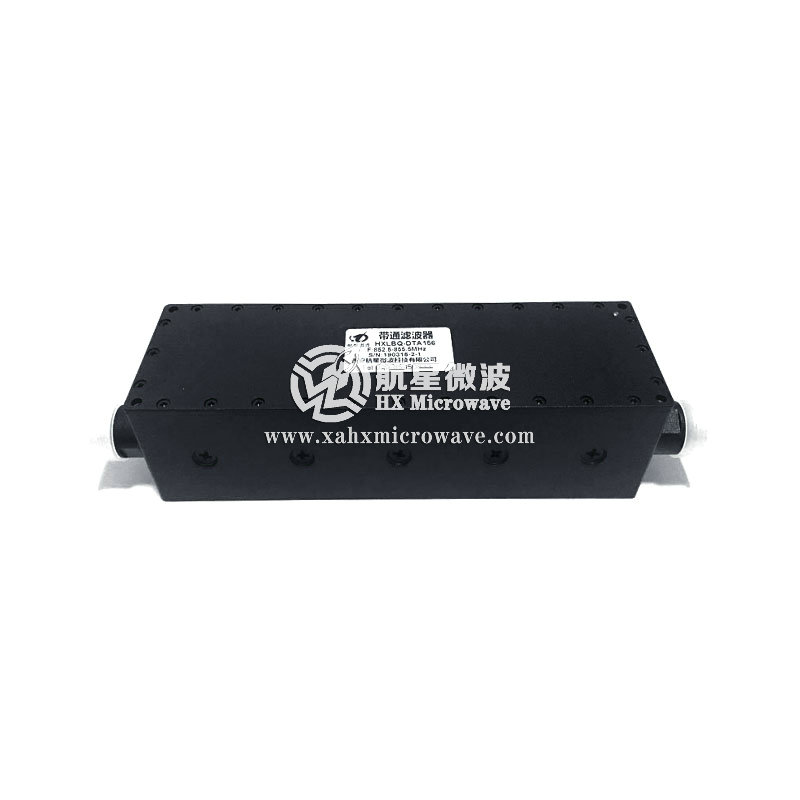

852.5-855.5MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA156
frequency:852.5-855.5MHz
Stop Band Rejection：≥25dB
Connectors：N-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	854MHz
2	Pass Band Frequency	852.5 ~ 855.5MHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Rejection	≥25dB @ DC ~ 847.5MHz	≥25dB @ 860.5 ~ 1800MHz
6	Impedance	50 Ohms
7	Power	25W Max.
8	Connectors	N-Female
9	Surface Finish	Painted Black
10	Temperature Range	0℃ ~ +50℃
11	Material	Housing: 6061 Aluminum alloy Cover: 6061 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	1634840mm
13	Net weight	TBD
