  • 5785-5805MHz Cavity Band Pass Filter

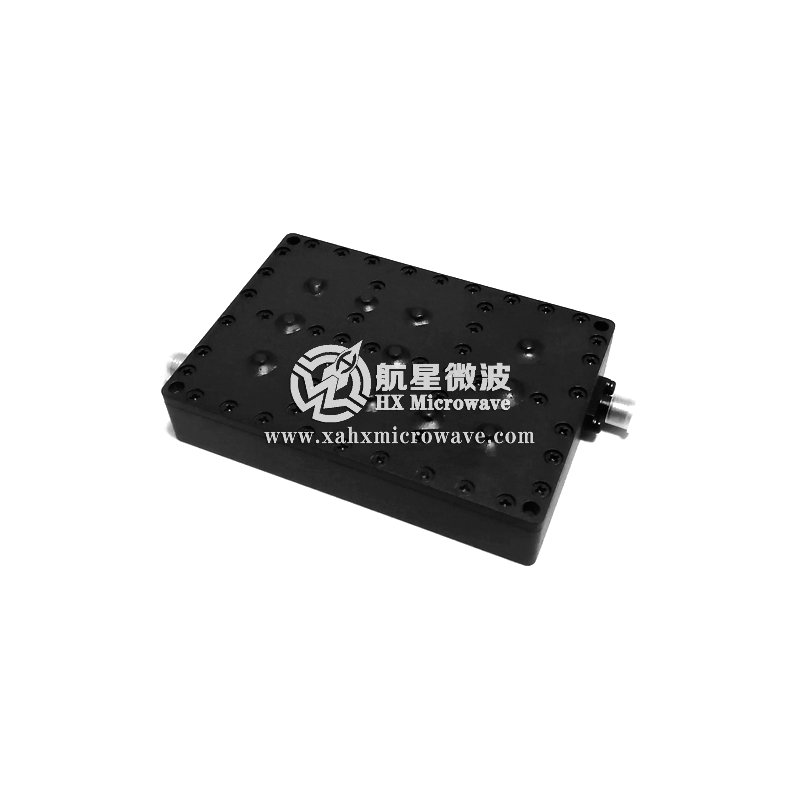

5785-5805MHz Cavity Band Pass Filter

5785-5805MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA117
  • Pass Band Frequency:5785~5805MHz
  • inhibition:≥35dB
  • Insertion loss:≤3.0dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Cavity Band Pass Filter
Specifications

Serial

Parameters

1

Center Frequency (F0)

5795MHz

2

Pass Band Frequency

57855805MHz

3

Pass Band Insertion Loss

3.0dB

4

Pass Band VSWR

1.3:1

5

Stop Band Attenuation

35dB @ DC5765MHz

35dB @ 58258000MHz

6

Impedance

50 ohms

7

Power Handling

5W

8

Connectors

SMA-Female

9

Surface Finish

Black Paint

10

Net Weight

TBD

11

Configuration

As Below (Size Unit: mm)
