Technical Data Sheet
●	Stop Band Center Frequency	40MHz
●	Stop Band Frequency	39 ~ 41MHz
●	Stop Band Attenuation	≥60dB
●	Pass Band Frequency	DC ~ 33MHz , 48 ~ 400MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.8:1
●	Impedance	50 Ohms
●	Power Handling	+15dBm Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

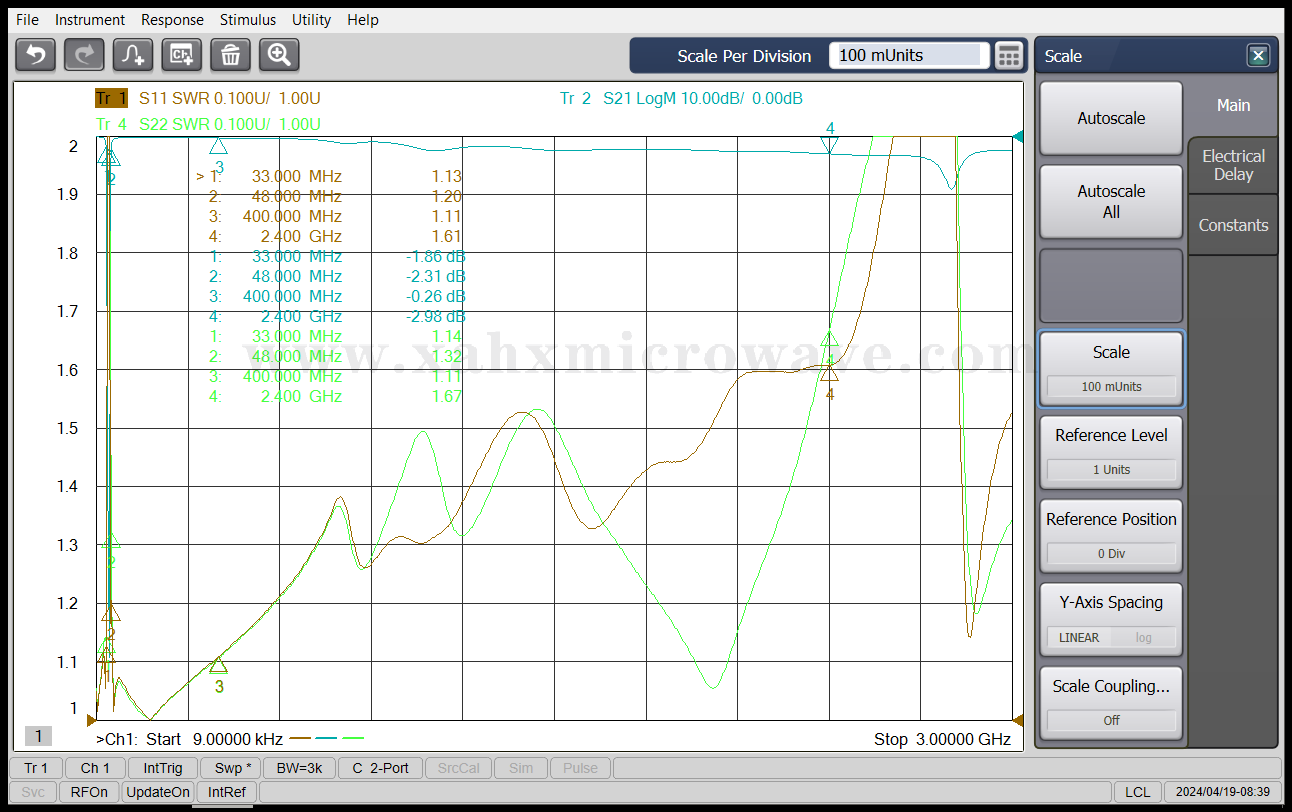

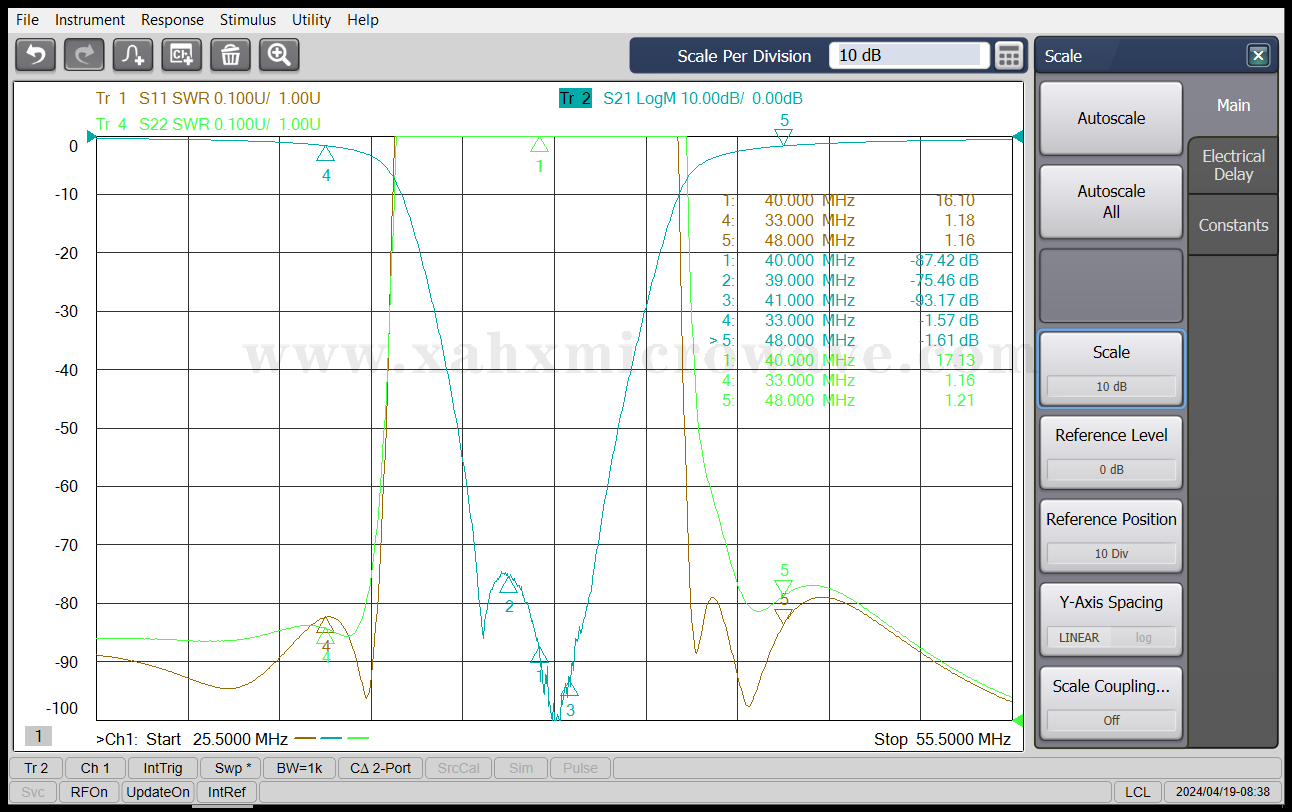

Test Curve
