Technical Data Sheet
●	Center Frequency(F0)	3900MHz
●	Pass Band Frequency	3000 ~ 4800MHz
●	Pass Band Insertion Loss	≤0.9dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 2520MHz	≥80dB @ 5120 ~ 10000MHz
		≥70dB @ 2520 ~ 2600MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

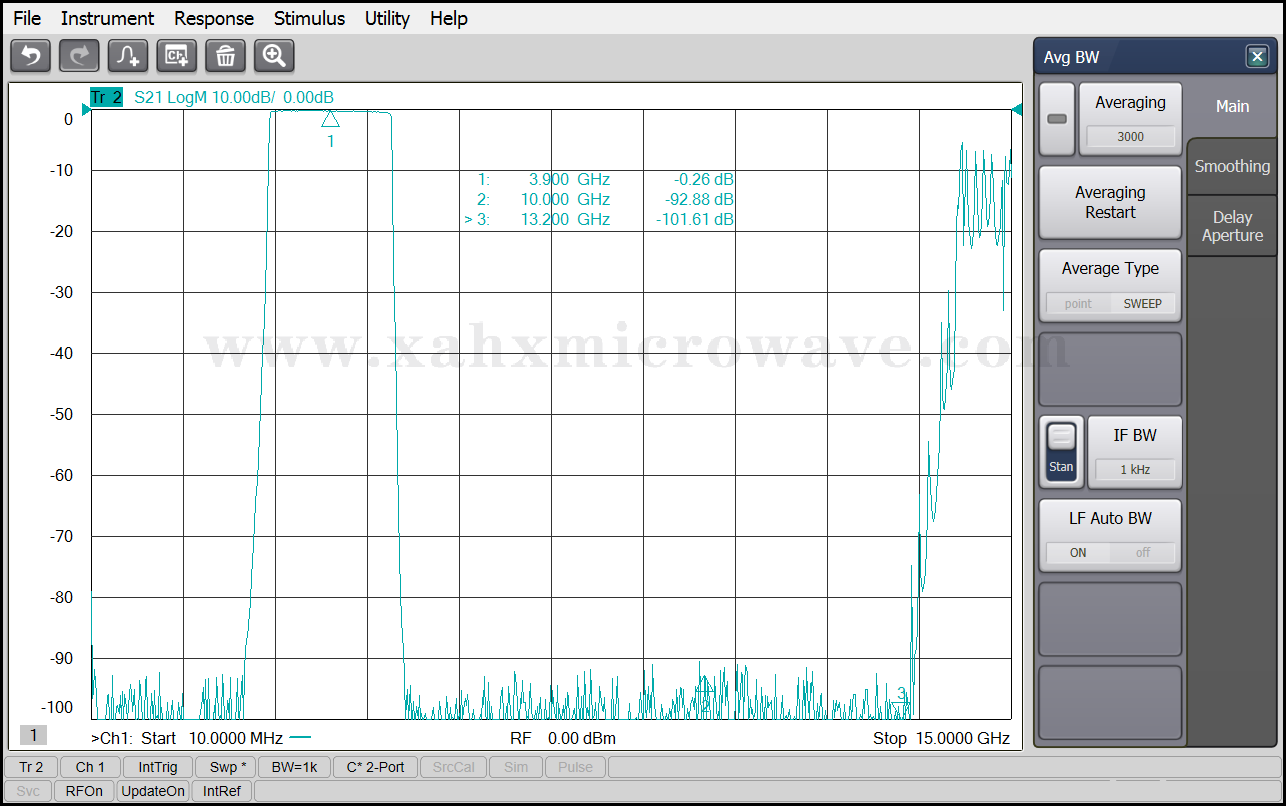

Test Curve
