S/N

Item

Parameters

1

Center Frequency(F0)

8025MHz

2

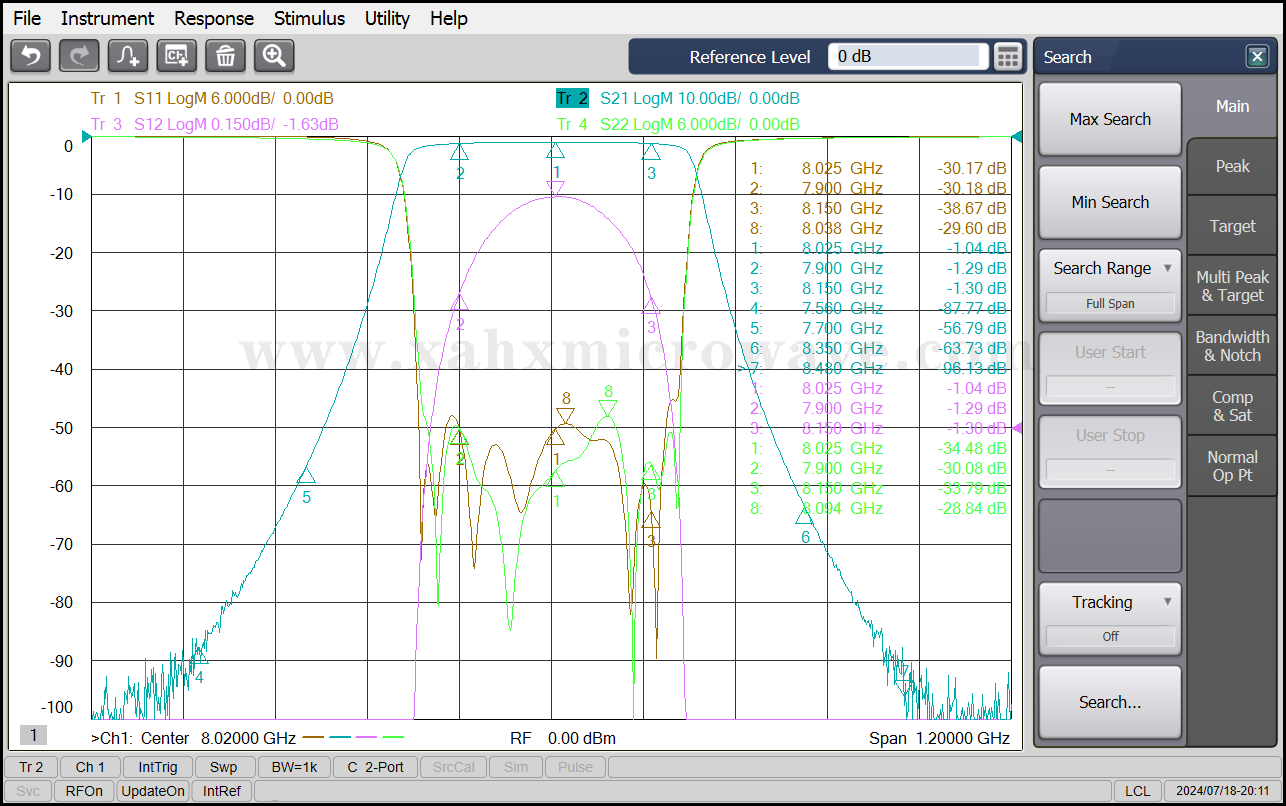

Pass Band Frequency

7900 ~ 8150MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤0.35dB

5

Pass Band Return Loss

≥23dB

6

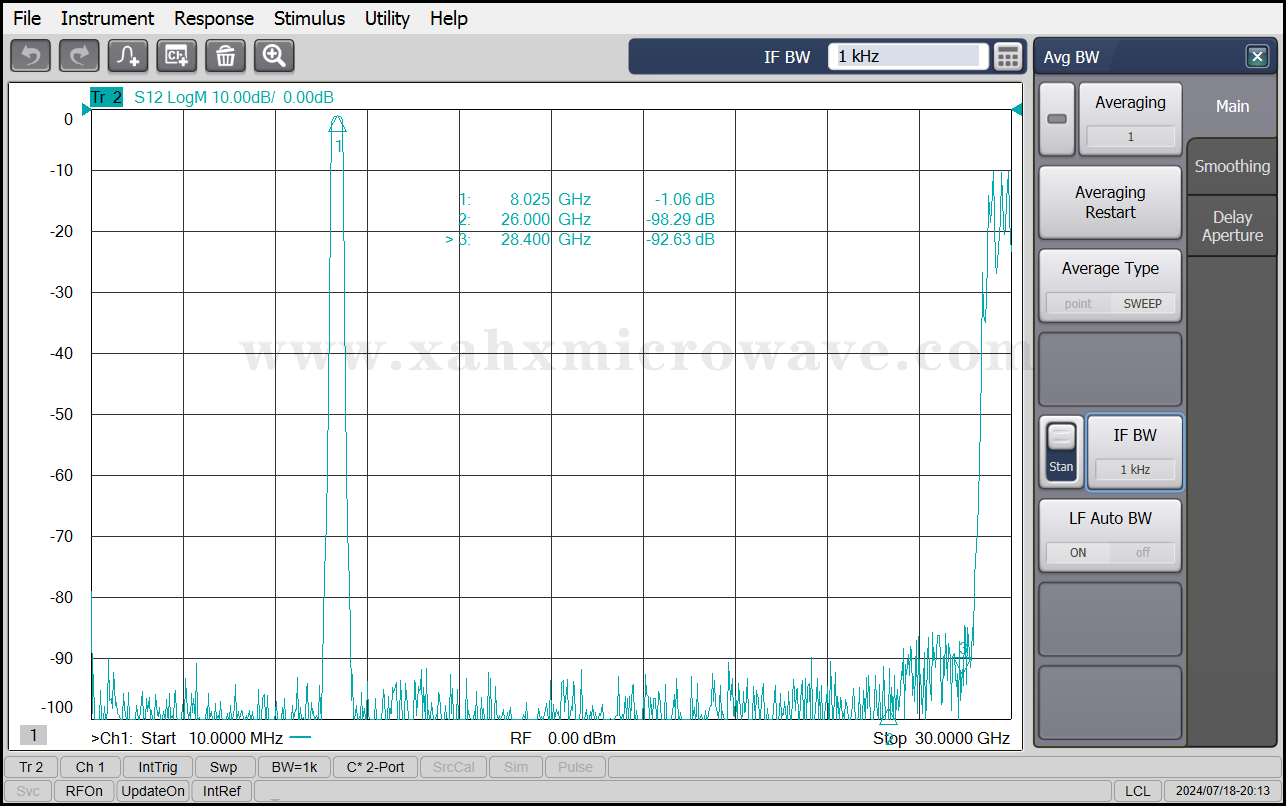

Stop Band Rejection

≥80dB @ DC ~ 7560MHz

≥50dB @ 7560 ~ 7700MHz

≥50dB @ 8350 ~ 8480MHz

≥80dB @ 8480 ~ 26000MHz

7

Impedance

50 Ohms

8

Power Handling

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
