Technical Data Sheet
●	Center Frequency(F0)	11650MHz
●	Pass Band Frequency	9100 ~ 14200MHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.7dB
●	Pass Band Return Loss	≥18dB
●	Stop Band Rejection	≥80dB @ DC ~ 7600MHz	≥80dB @ 14950 ~ 21000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Male / SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

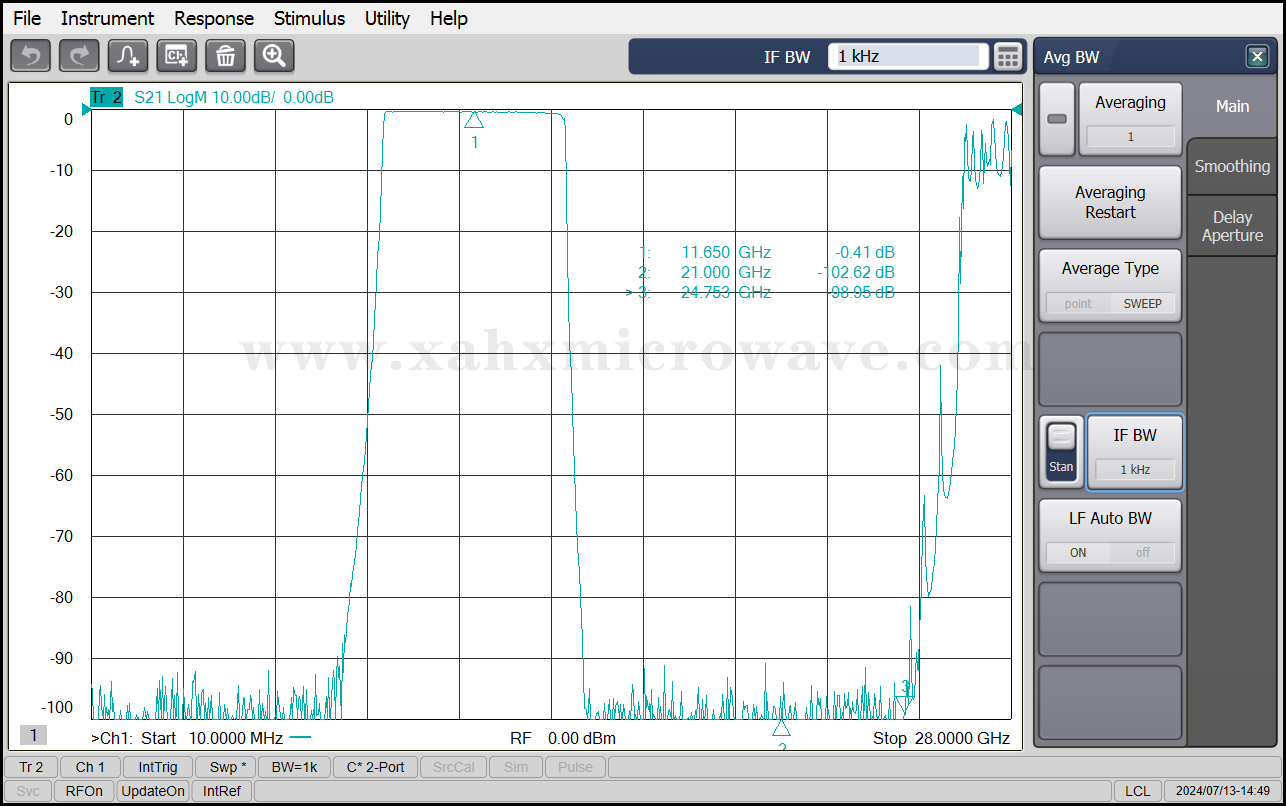

Test Curve
