| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3250MHz | |
| ● | 3.0dB Bandwidth | 160MHz (3170 ~ 3330MHz) | |
| ● | Insertion Loss @ F0 | ≤1.2dB @ 3250MHz | |
| ● | Return Loss | ≥23dB @ 3200 ~ 3300MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 3000MHz | ≥45dB @ 3400 ~ 3500MHz |
| ≥45dB @ 3000 ~ 3100MHz | ≥80dB @ 3500 ~ 7000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

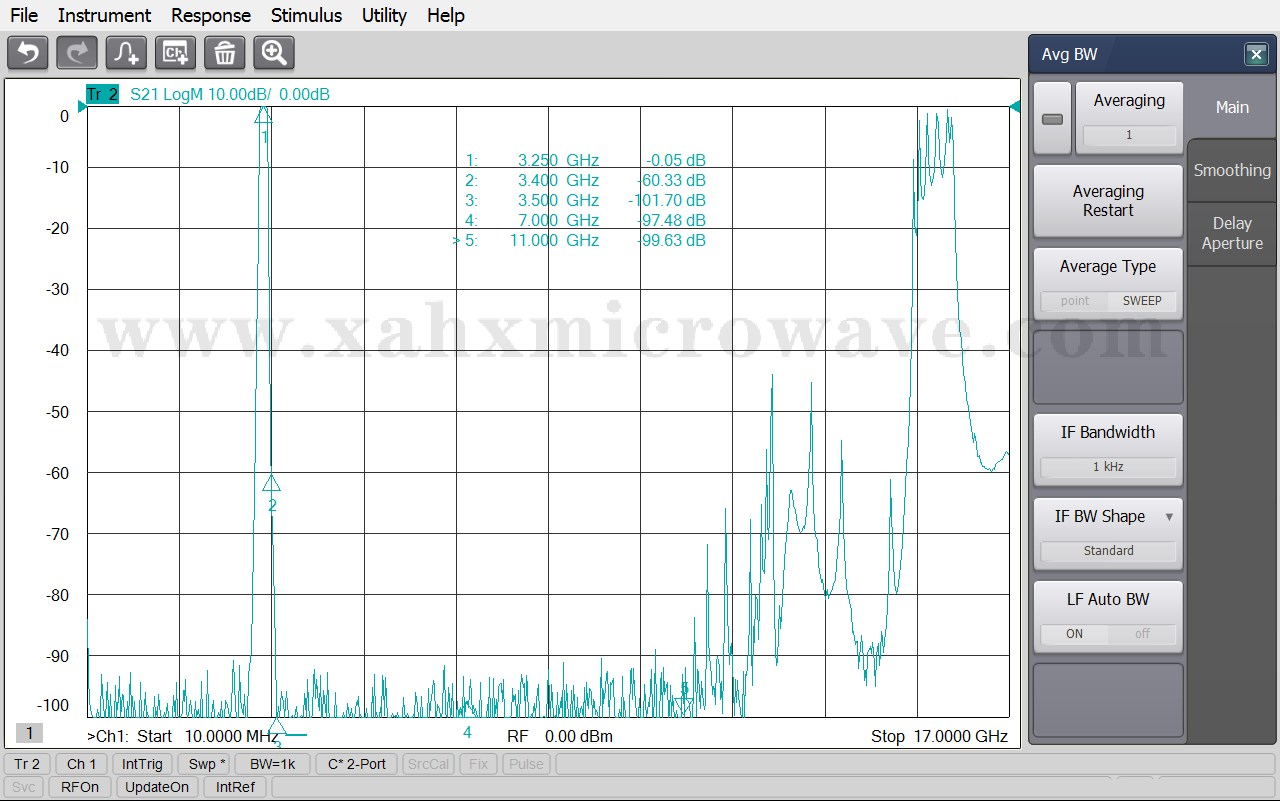

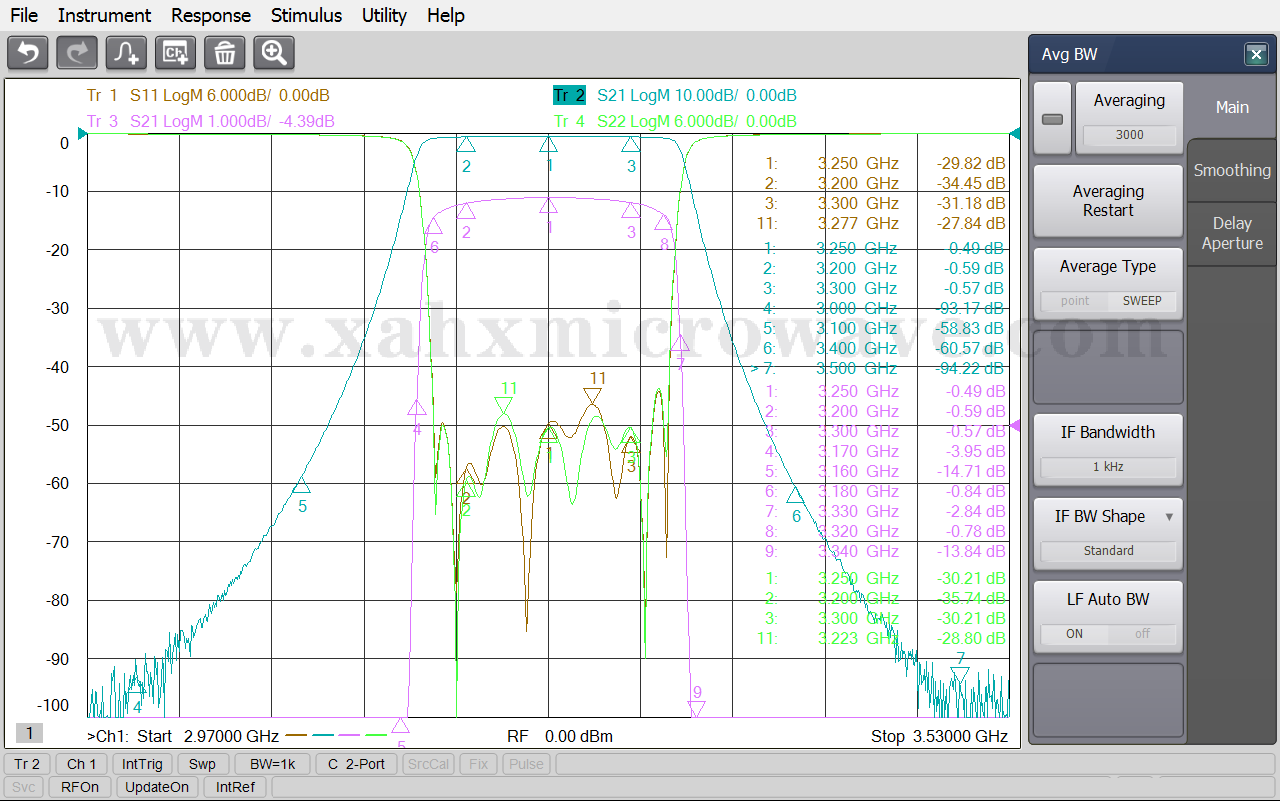

| Test Curve | |||
