| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5500MHz | |
| ● | 3.0dB Bandwidth | 1000MHz (5000 ~ 6000MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 5500MHz | |
| ● | Return Loss | ≥23dB @ 5100 ~ 5900MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 4450MHz | ≥40dB @ 6180 ~ 6550MHz |
| ≥40dB @ 4450 ~ 4810MHz | ≥80dB @ 6550 ~ 14000MHz | ||
| ≥40dB @ 14000 ~ 16500MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

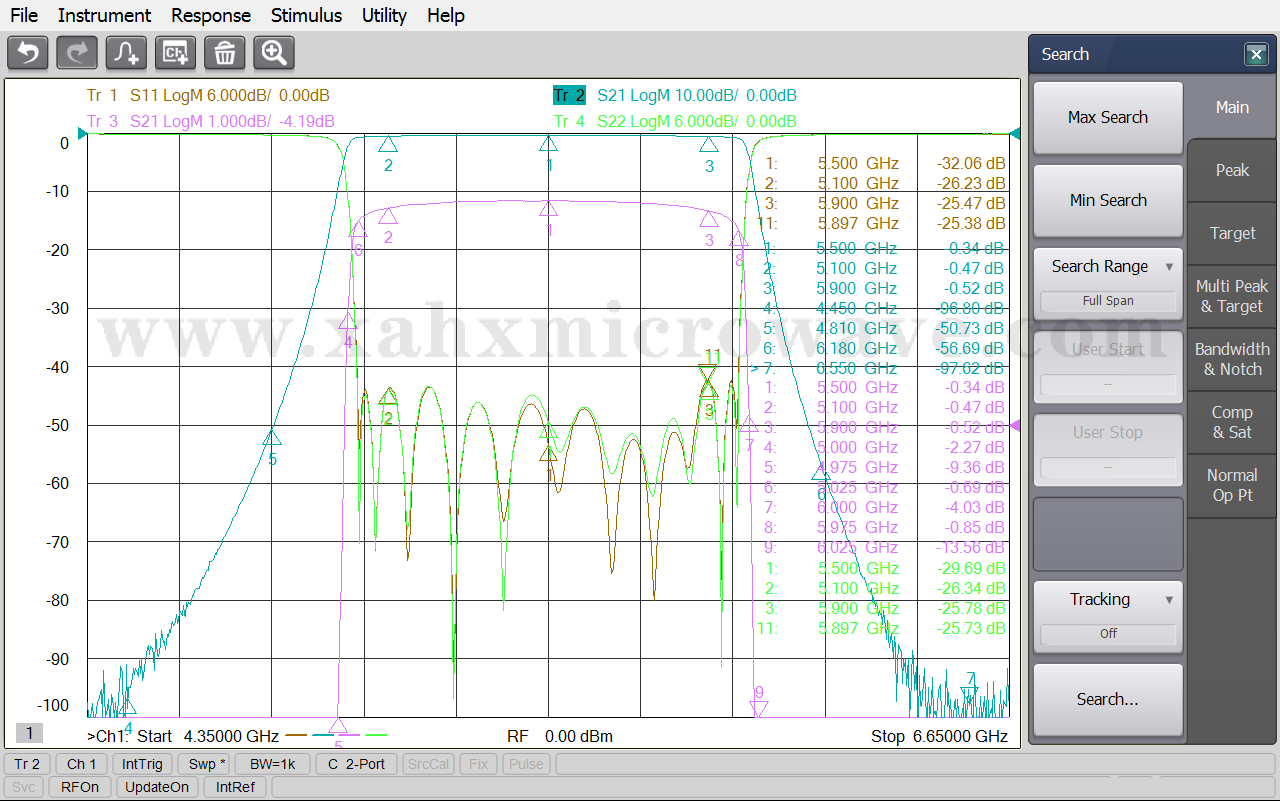

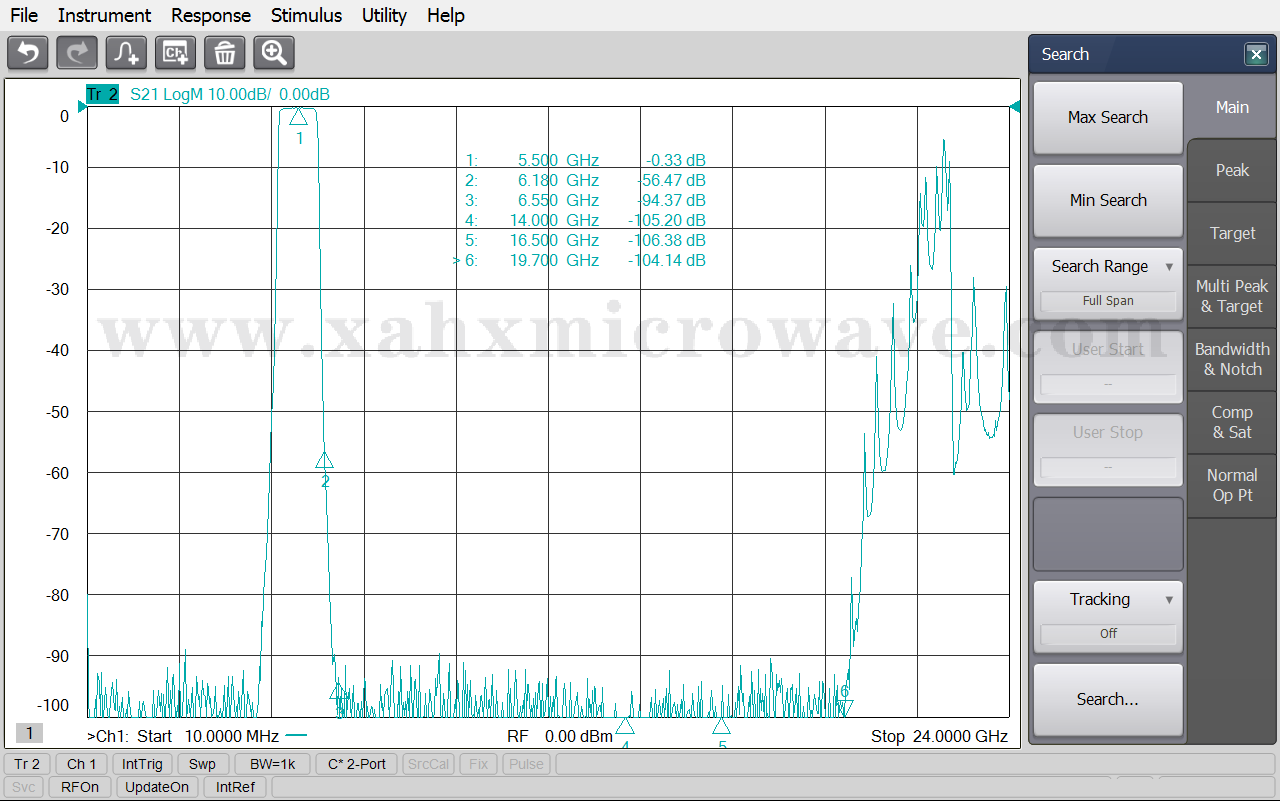

| Test Curve | |||
