| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1275MHz | |
| ● | 3.0dB Bandwidth | 250MHz (1150 ~ 1400MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 1275MHz | |
| ● | Return Loss | ≥20dB @ 1175 ~ 1375MHz | |
| ● | Stop Band Rejection | ≥45dB @ DC ~ 1050MHz | ≥45dB @ 1500 ~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

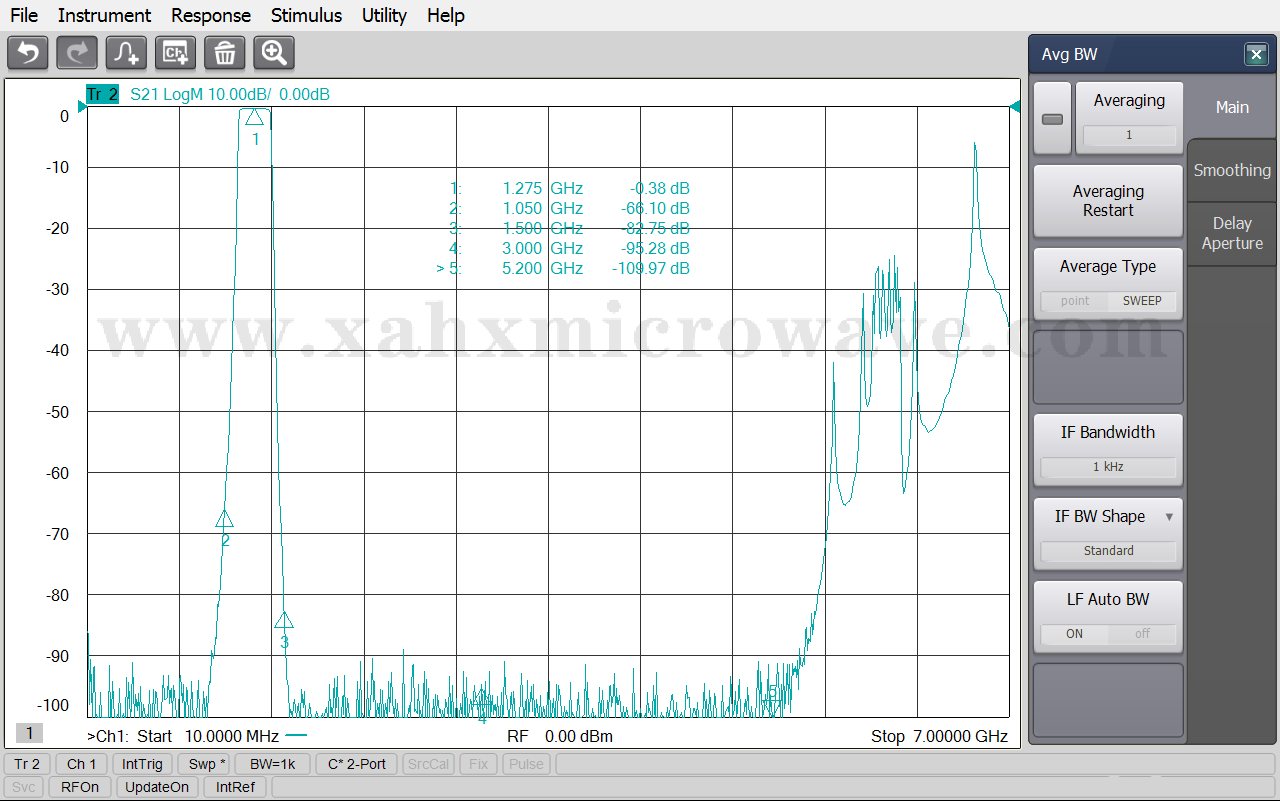

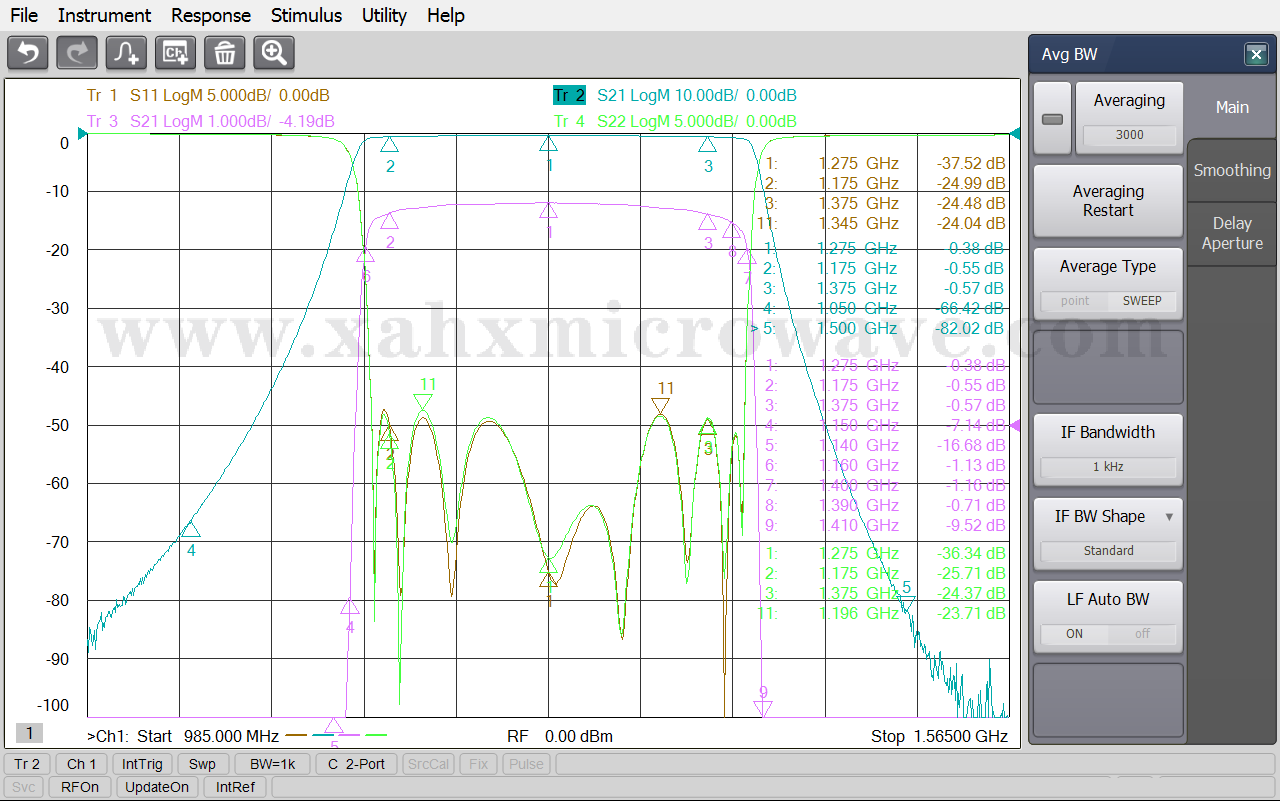

| Test Curve | |||
