| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 9000MHz | |
| ● | 3.0dB Bandwidth | 1000MHz (8500 ~ 9500MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 9000MHz | |
| ● | Return Loss | ≥23dB @ 8650 ~ 9350MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 7500MHz | ≥40dB @ 9800 ~ 10500MHz |
| ≥40dB @ 7500 ~ 8200MHz | ≥80dB @ 10500 ~ 22000MHz | ||
| ≥40dB @ 22000 ~ 24000MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

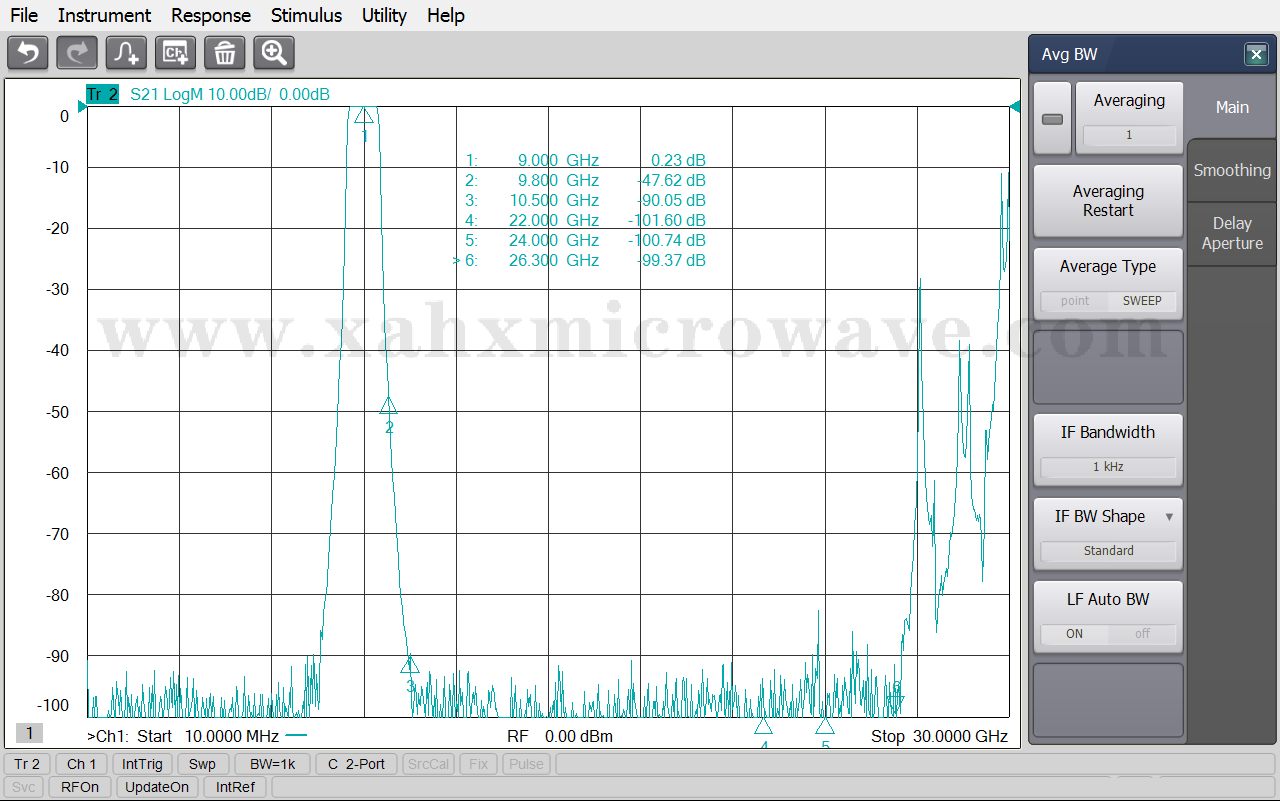

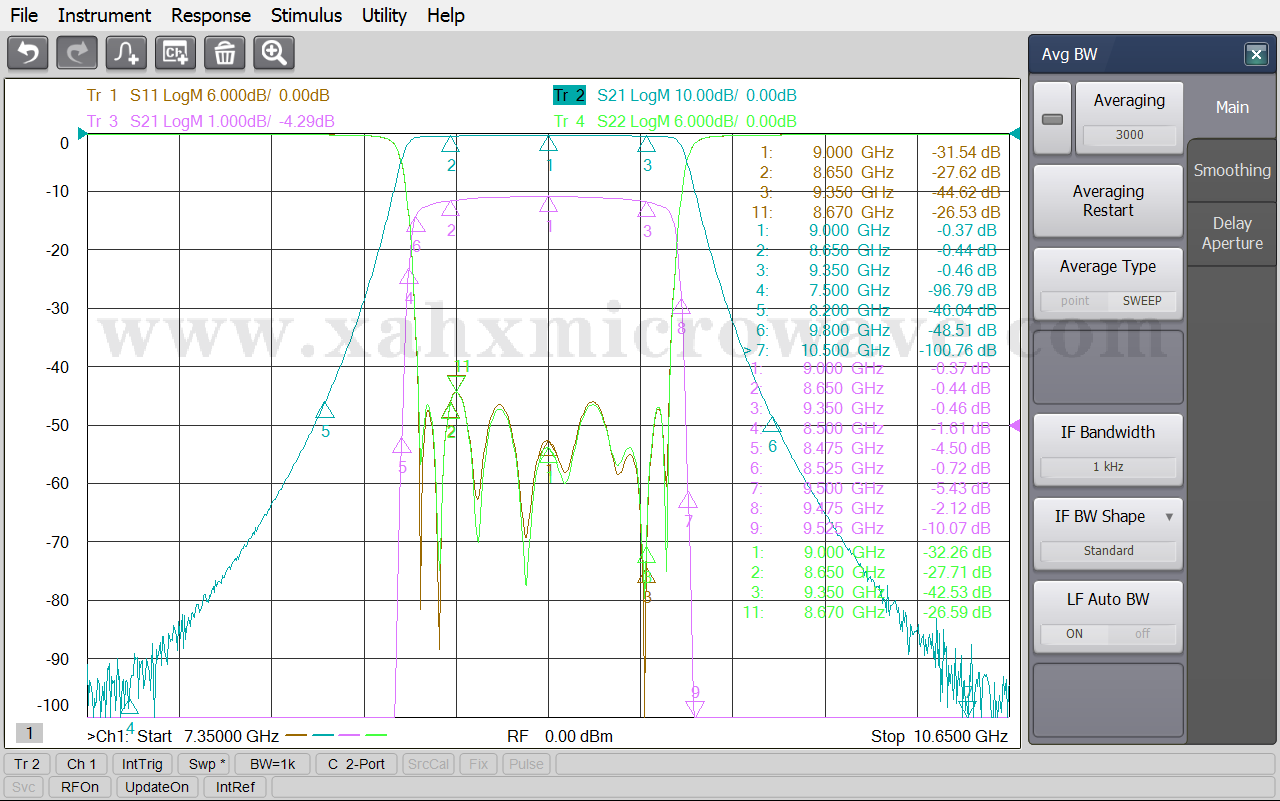

| Test Curve | |||
