| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 4050MHz | |
| ● | 3.0dB Bandwidth | 300MHz (3900 ~ 4200MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 4050MHz | |
| ● | Return Loss | ≥23dB @ 3950 ~ 4150MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 3700MHz | ≥80dB @ 4400 ~ 12000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

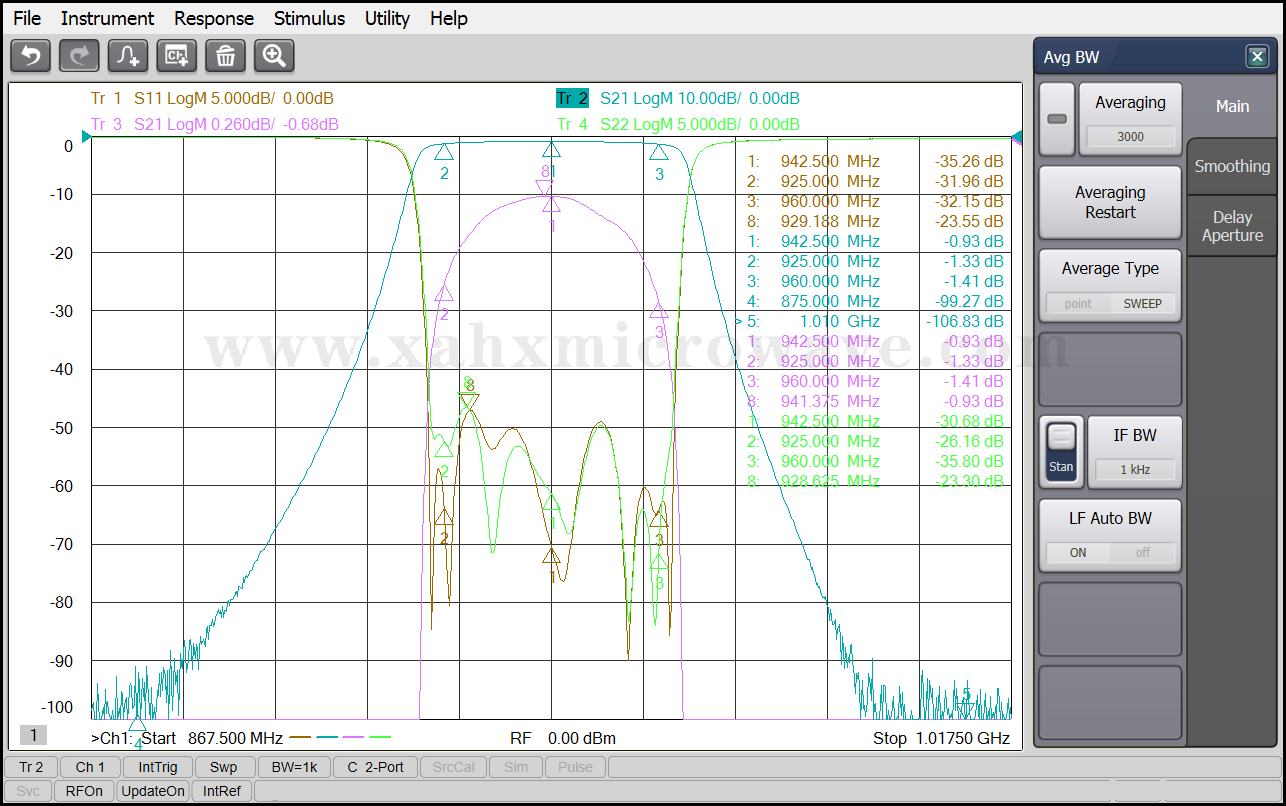

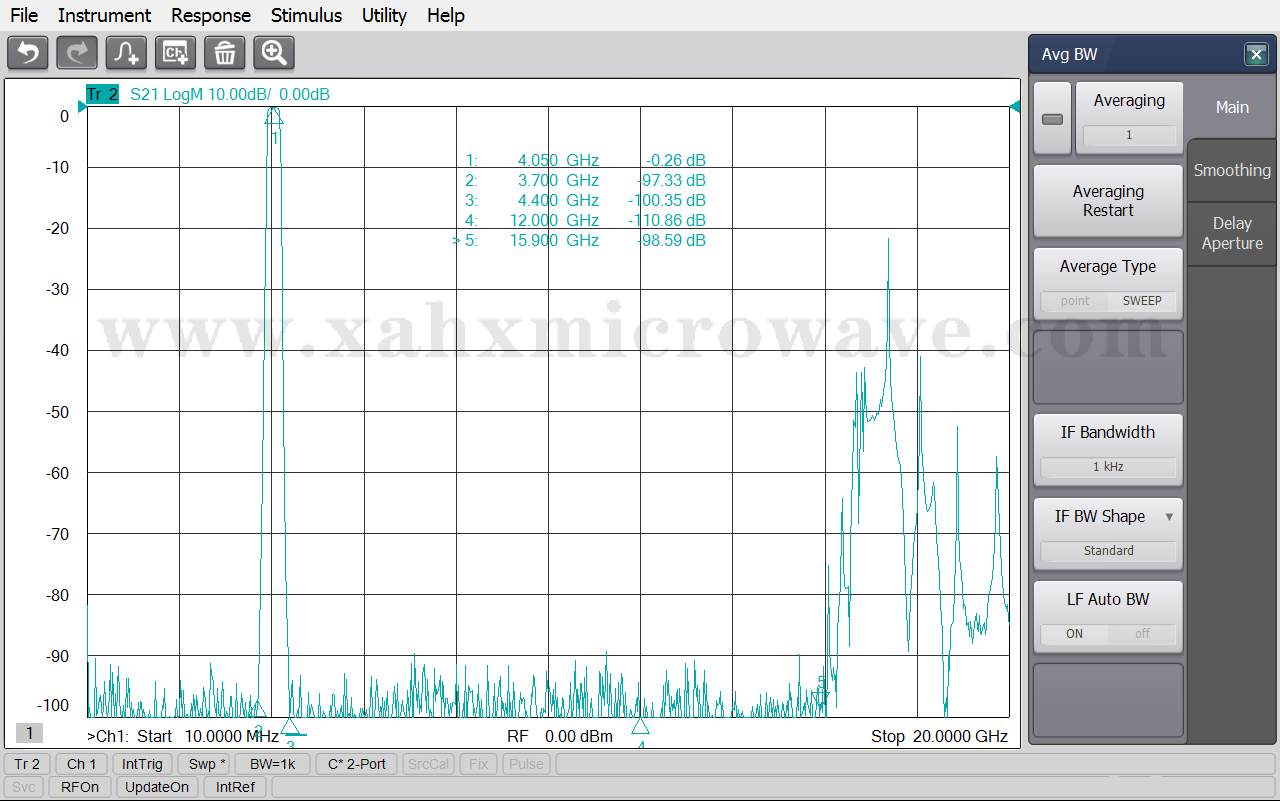

| Test Curve | |||
