| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3250MHz | |
| ● | 3.0dB Bandwidth | 300MHz (3100 ~ 3400MHz) | |
| ● | Pass Band Bandwidth | 200MHz (3150 ~ 3350MHz) | |
| ● | Pass Band Insertion Loss | ≤1.0dB @ 3150 ~ 3350MHz | |
| ● | Pass Band Ripple | ≤0.5dB @ 3150 ~ 3350MHz | |
| ● | Pass Band Return Loss | ≥23dB @ 3150 ~ 3350MHz | |
| ● | Stop Band Rejection | ≥45dB @ DC ~ 2900MHz | ≥45dB @ 3600 ~ 9500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

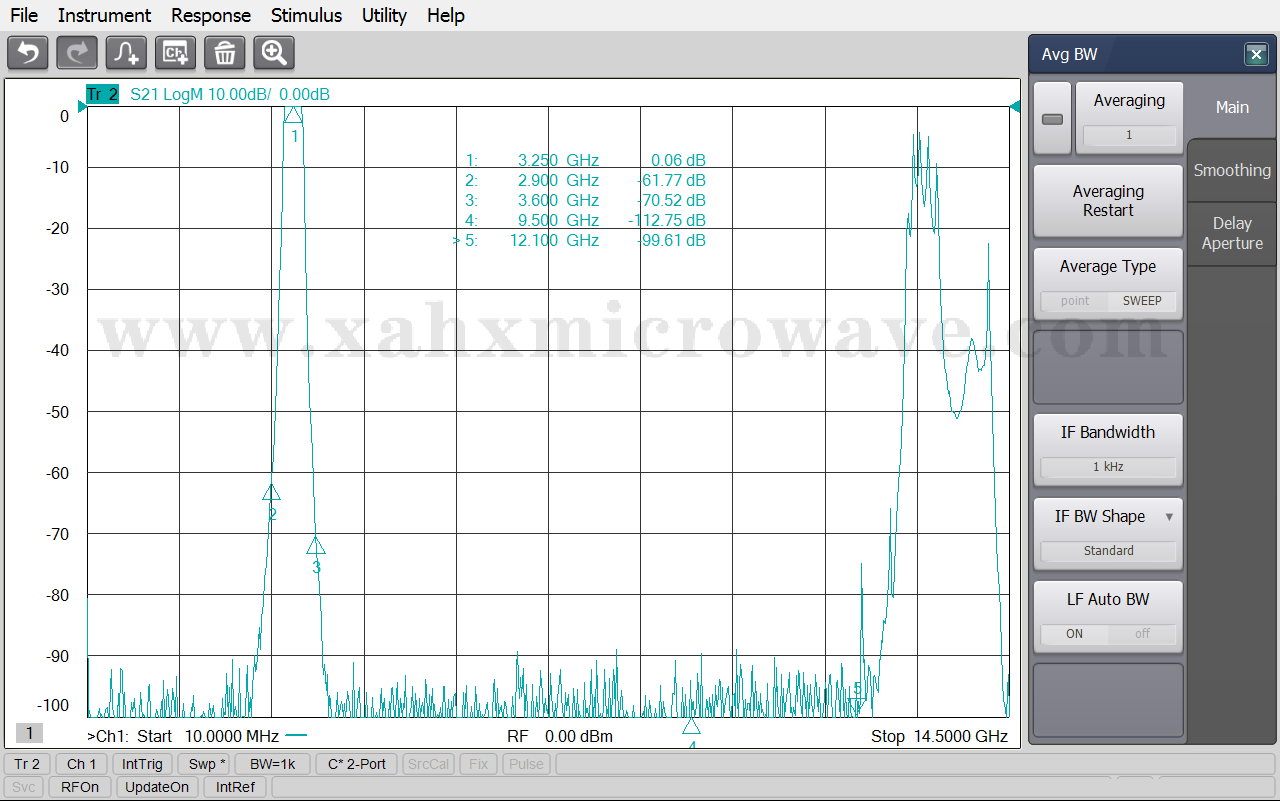

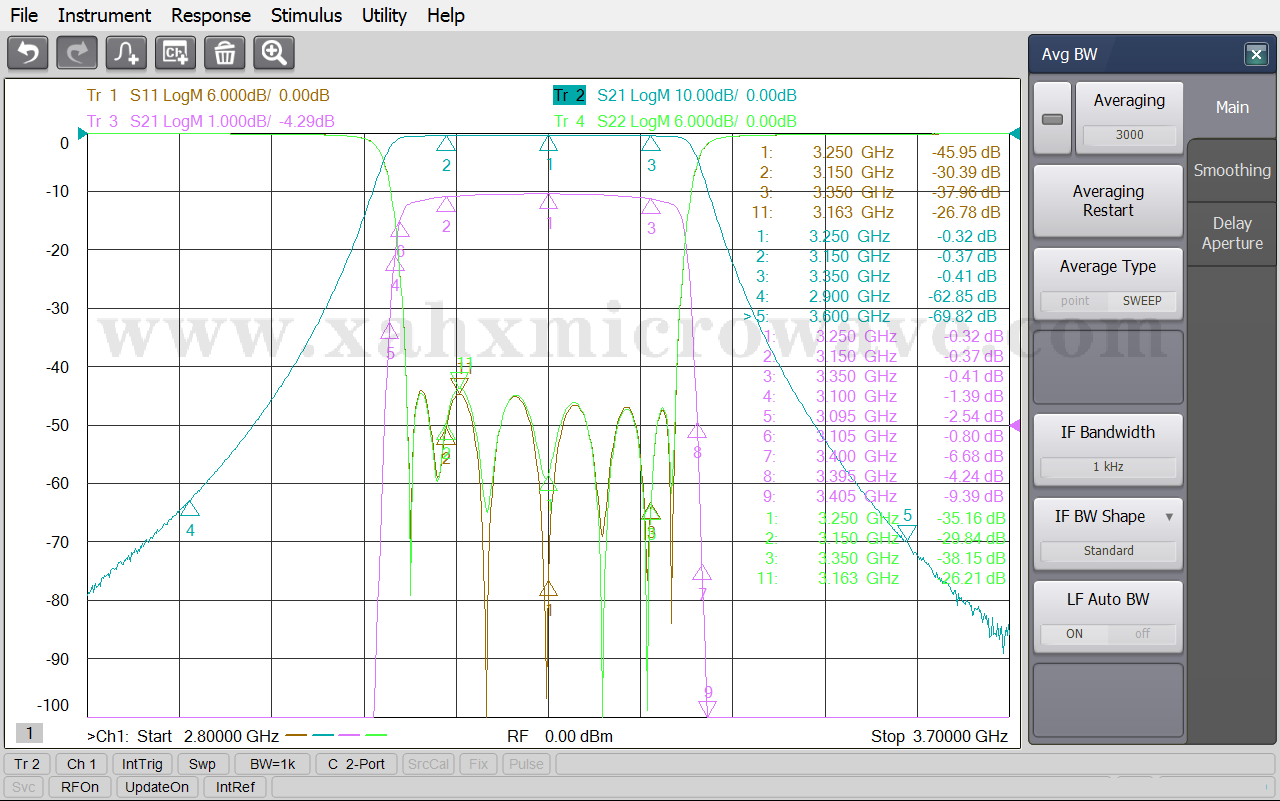

| Test Curve | |||
