Technical Data Sheet
●	Center Frequency(F0)	2856MHz
●	Pass Band Frequency	2836 ~ 2876MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 2751MHz	≥60dB @ 2936 ~ 2961MHz
		≥60dB @ 2751 ~ 2776MHz	≥80dB @ 2961 ~ 9000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

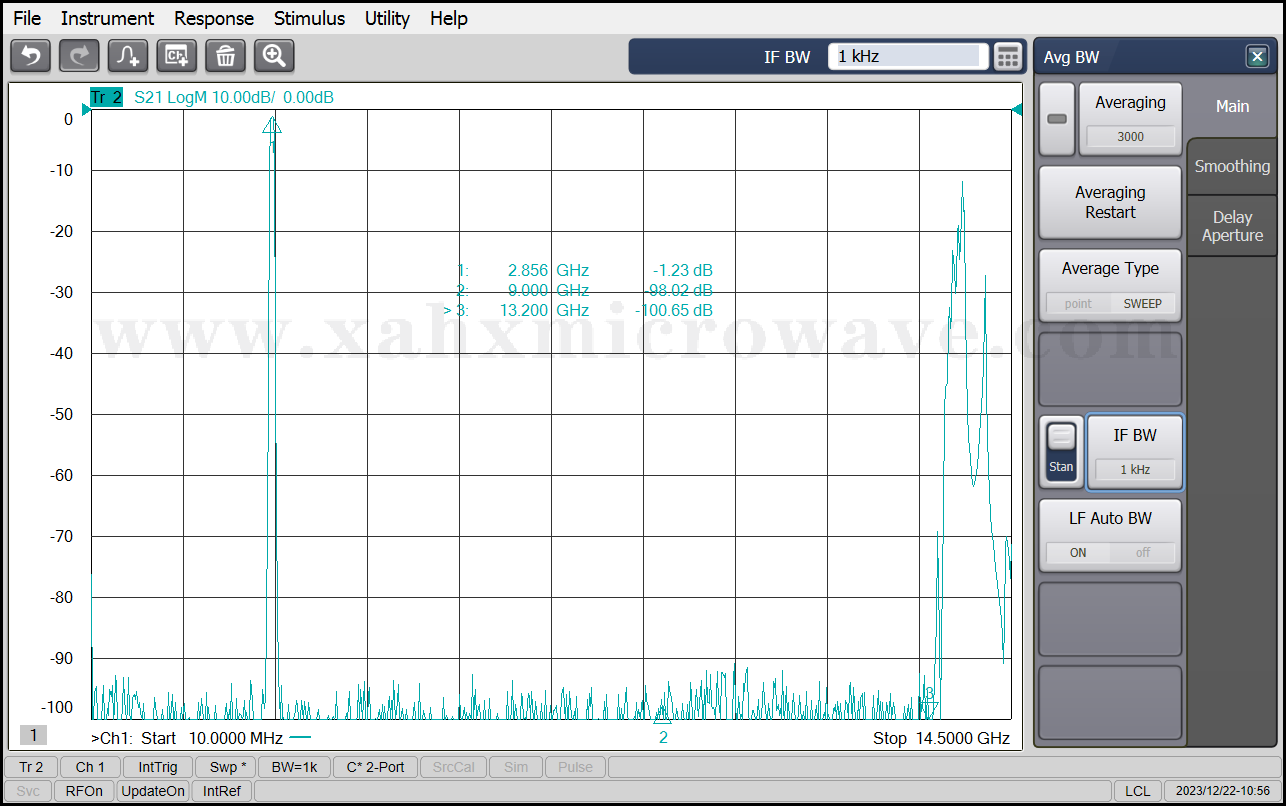

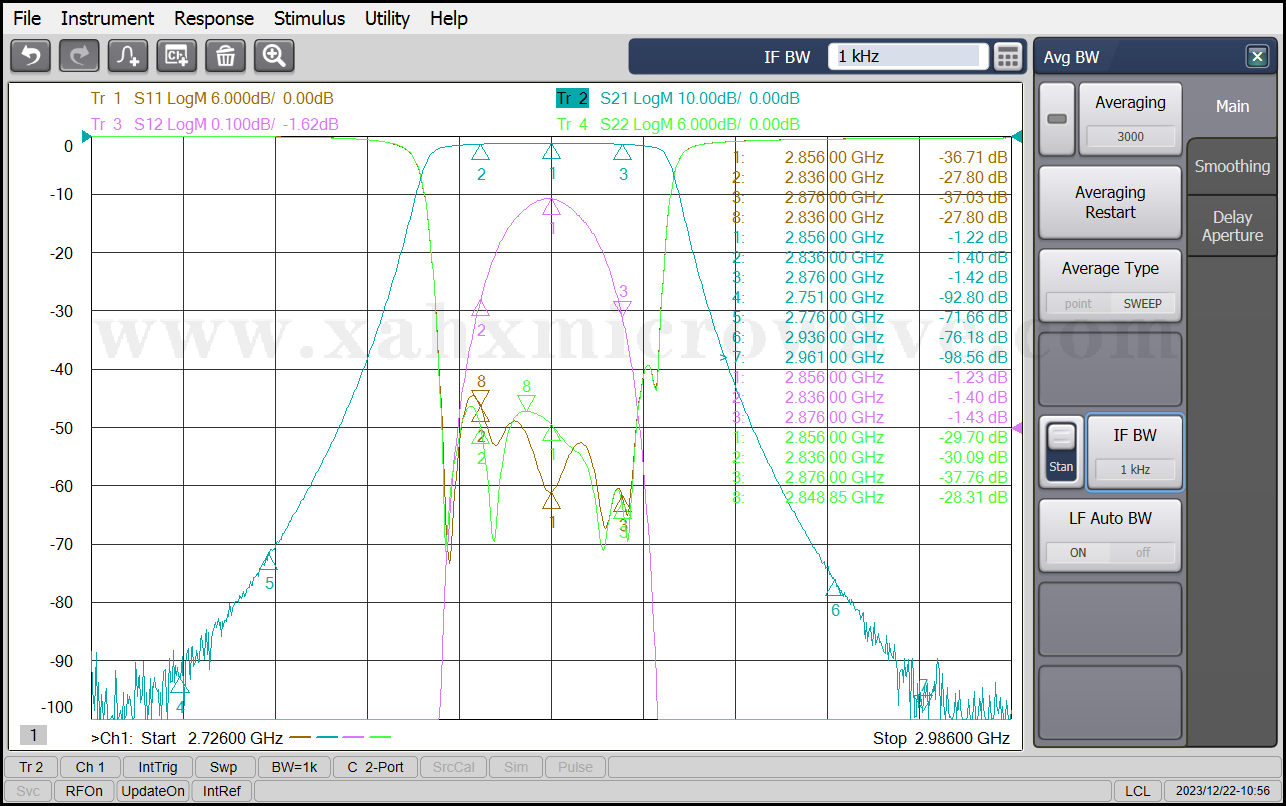

Test Curve
