Technical Data Sheet
●	Center Frequency(F0)	852.5MHz
●	Pass Band Frequency	825 ~ 880MHz
●	Pass Band Insertion Loss	≤1.8dB
●	Pass Band Ripple	≤0.9dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥90dB @ DC ~ 755MHz	≥90dB @ 950 ~ 2700MHz
●	Impedance	50 Ohms
●	Power Handling	80W CW
●	Connectors	N-Male / N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

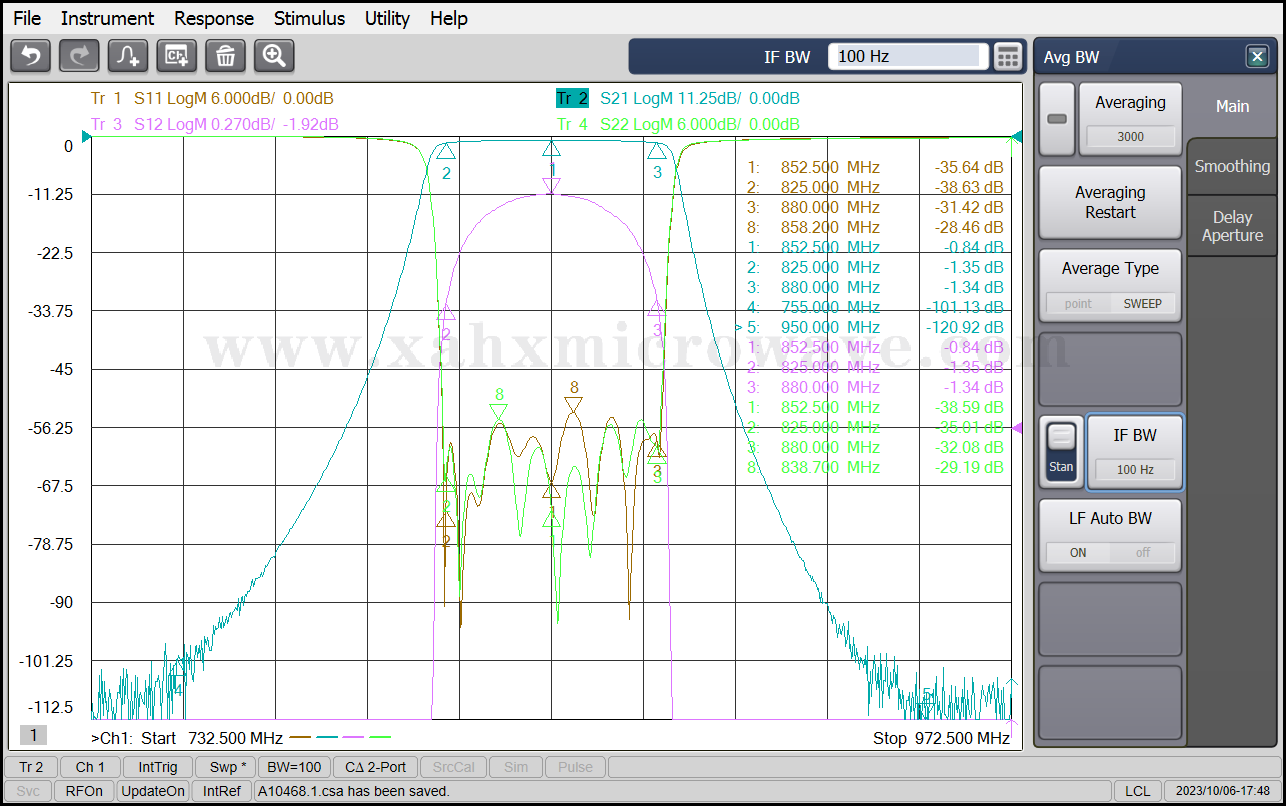

Test Curve
