Technical Data Sheet
●	Center Frequency(F0)	800MHz
●	3.0dB Bandwidth	6.0MHz Max. (797 ~ 803MHz Max.)
●	Insertion Loss @ F0	≤2.5dB @ 800MHz
●	Return Loss @ F0	≥20dB @ 800MHz
●	Stop Band Attenuation	≥60dB @ DC ~ 792MHz	≥60dB @ 808 ~ 2000MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	+10℃ ~ +50℃

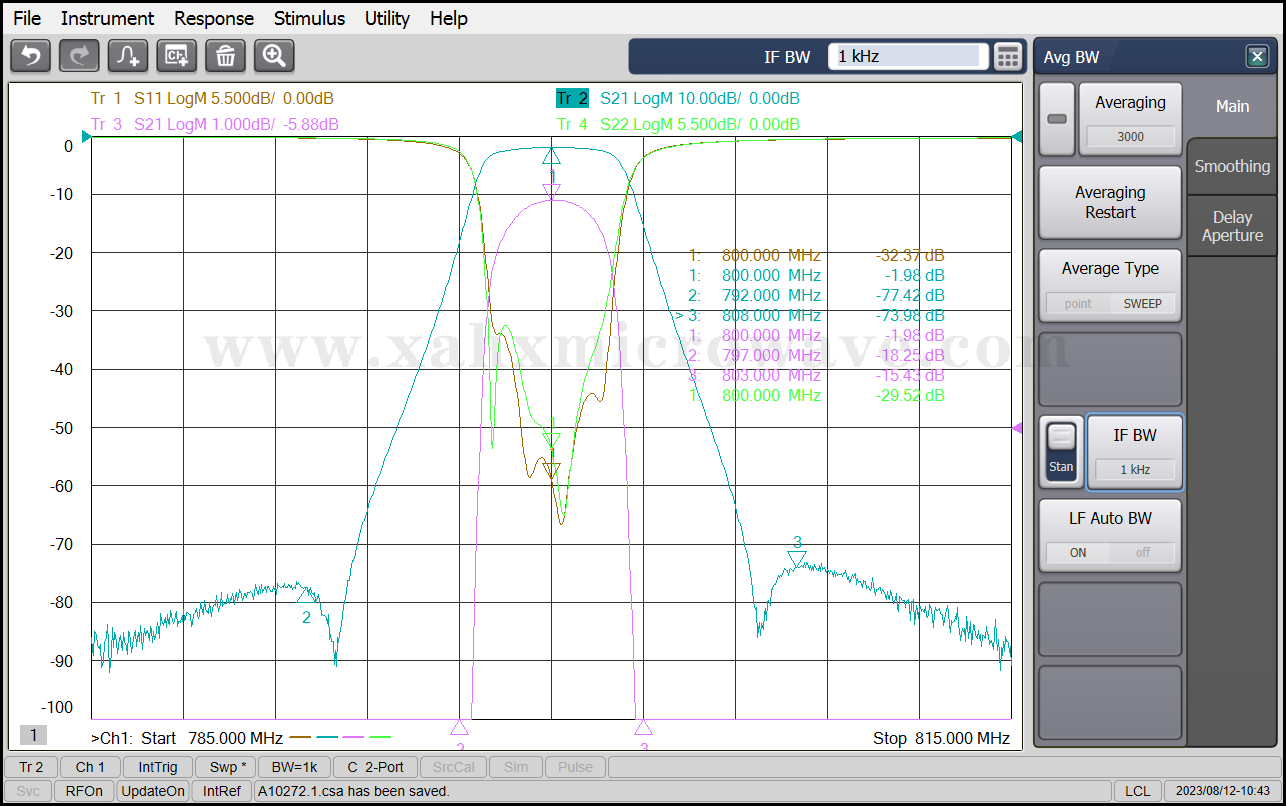

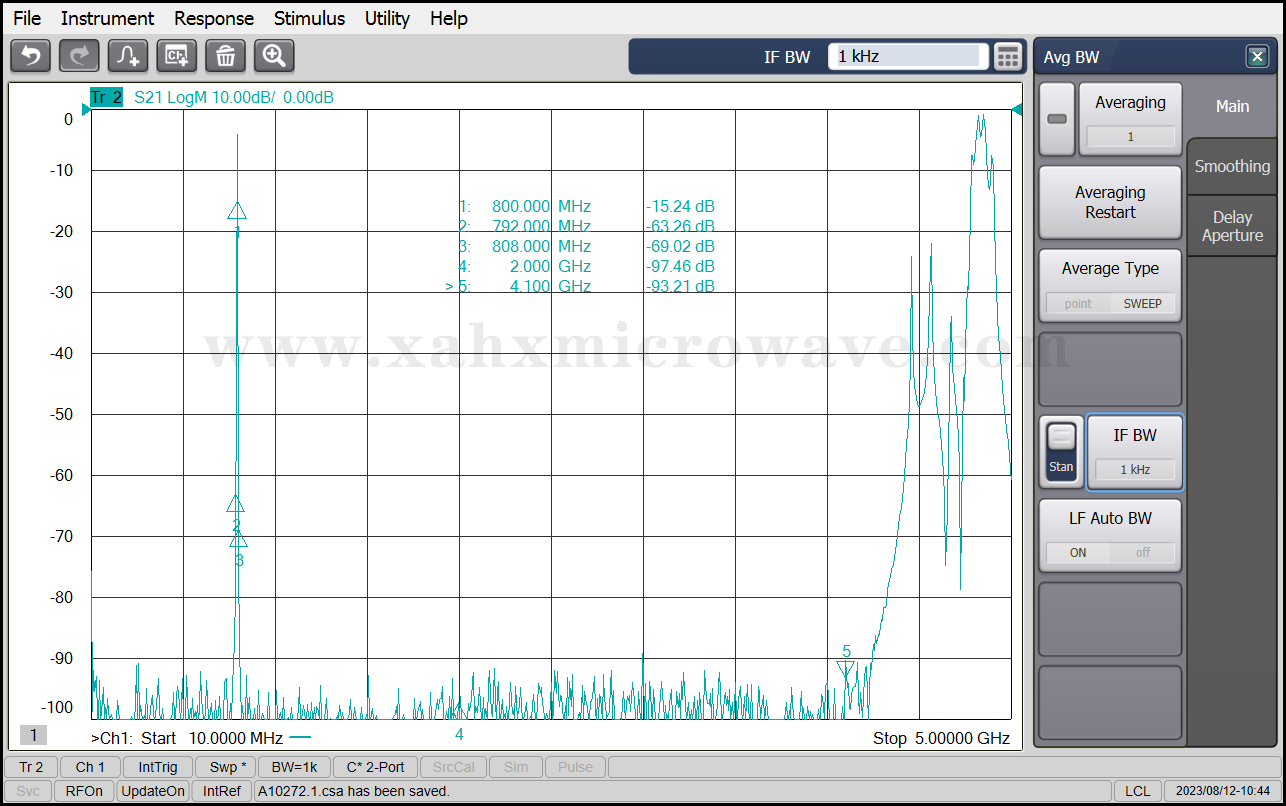

Test Curve
