Technical Data Sheet
●	Center Frequency(F0)	5652MHz
●	Pass Band Frequency	5649~ 5655MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ F0±195MHz (DC ~5457MHz , 5847 ~ 15500MHz)
●	Impedance	50 Ohms
●	Power	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

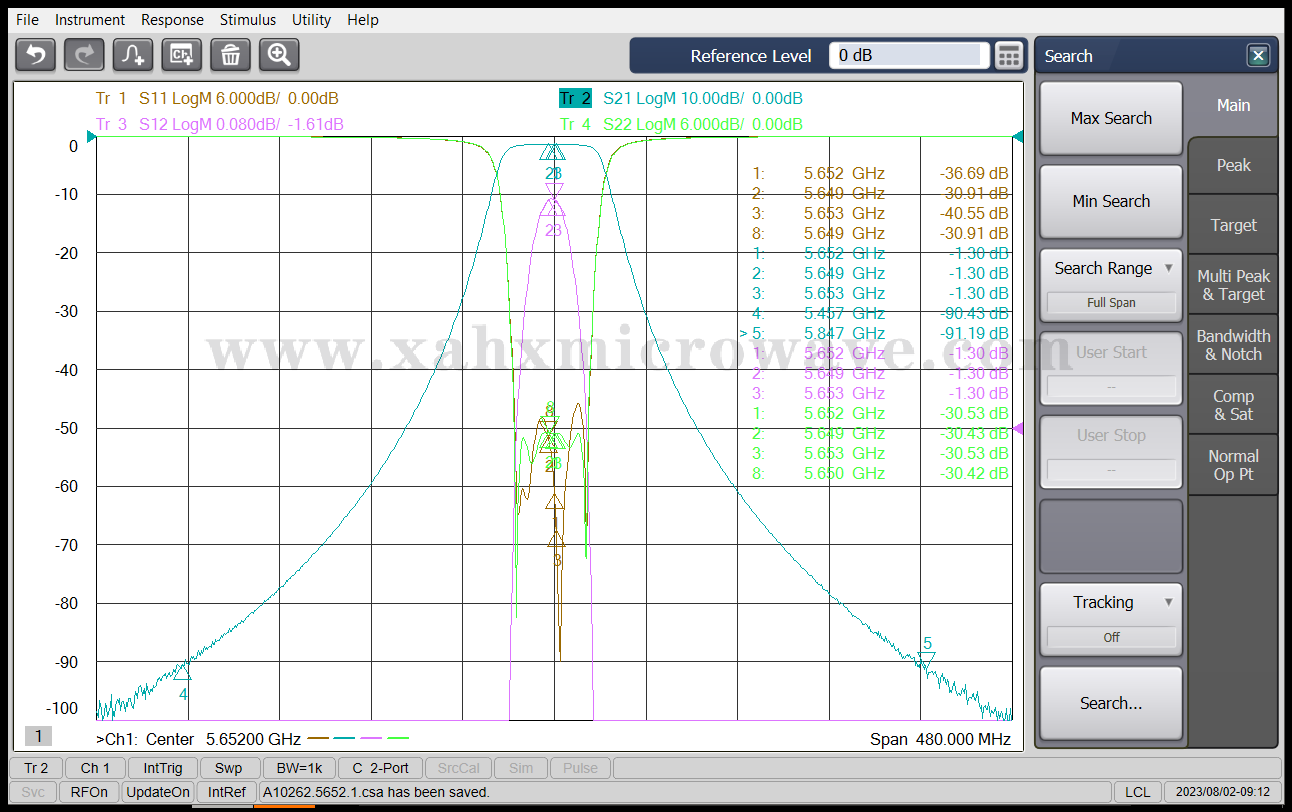

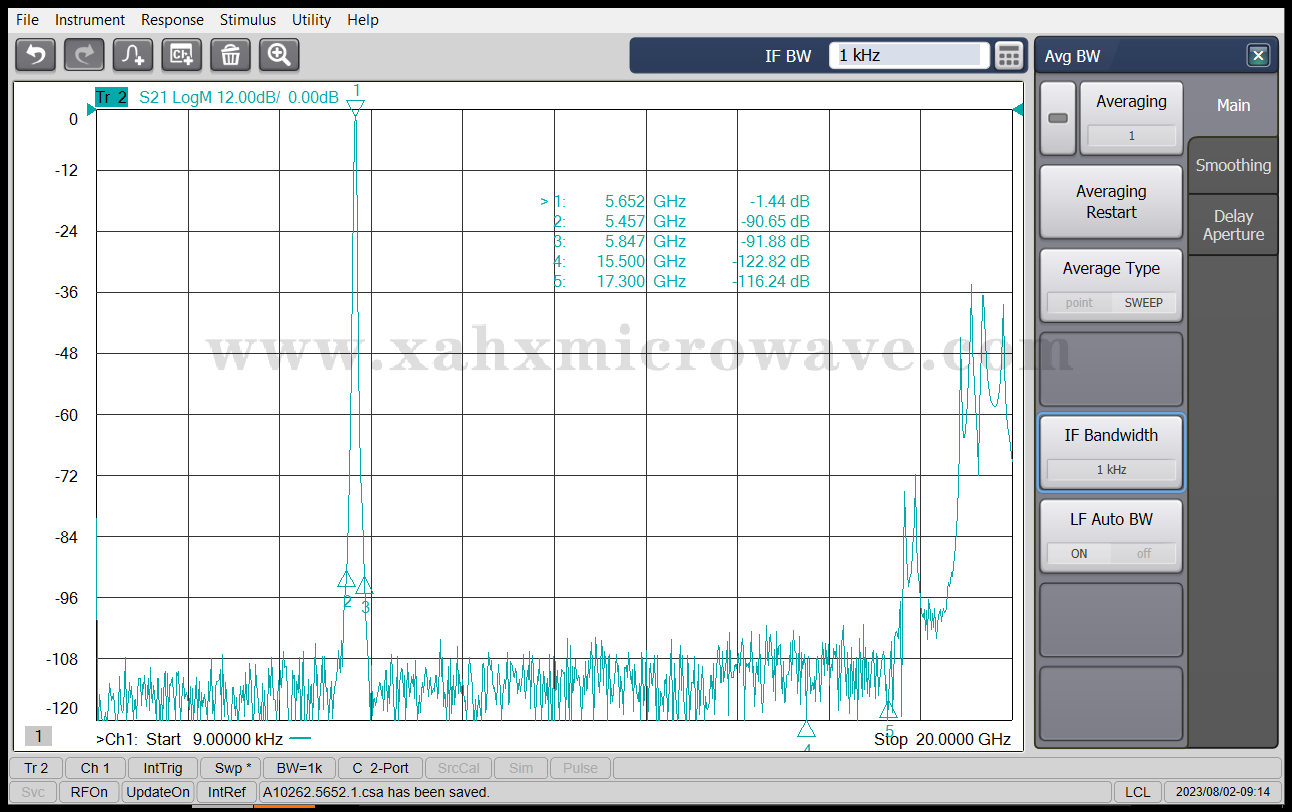

Test Curve
