S/N

Item

Parameters

1

Center Frequency(F0)

4190MHz

2

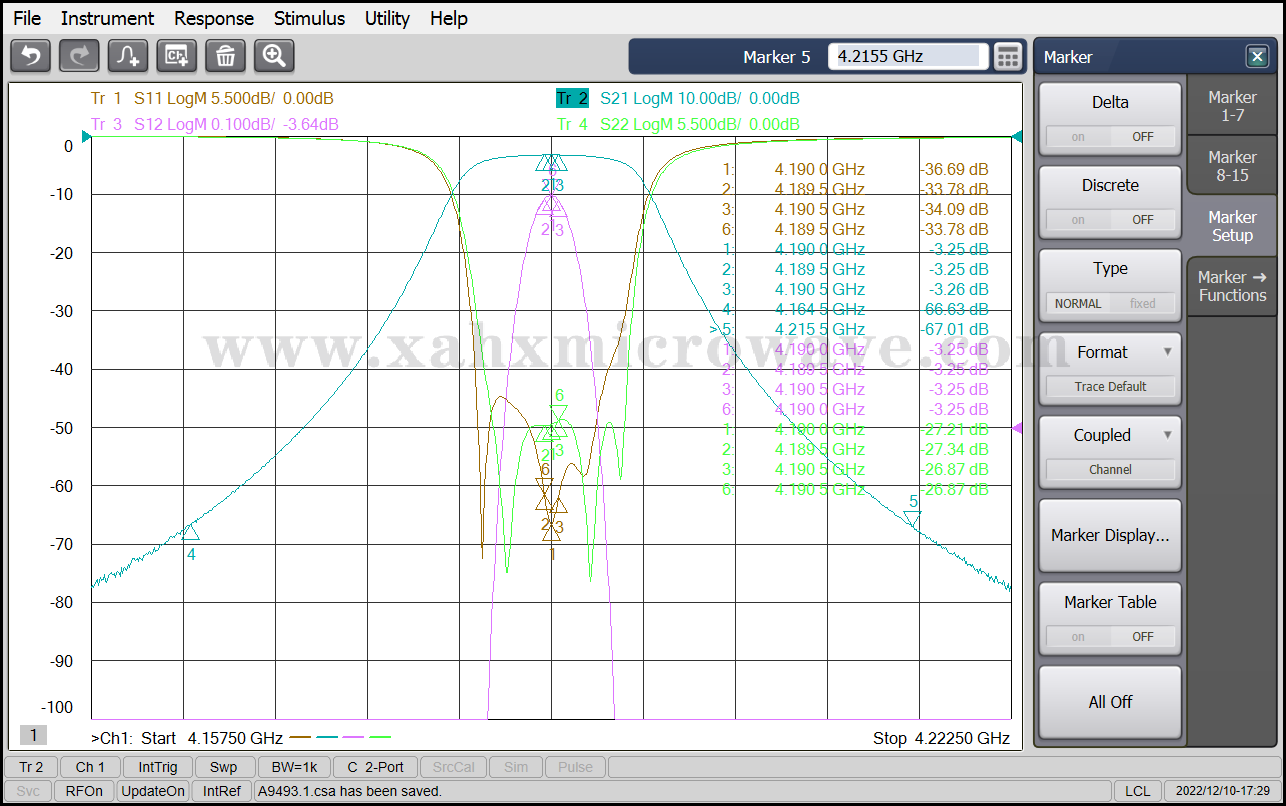

Pass Band Frequency

4189.5 ~ 4190.5MHz

3

Pass Band Insertion Loss

≤4.0dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band Return Loss

≥20dB

6

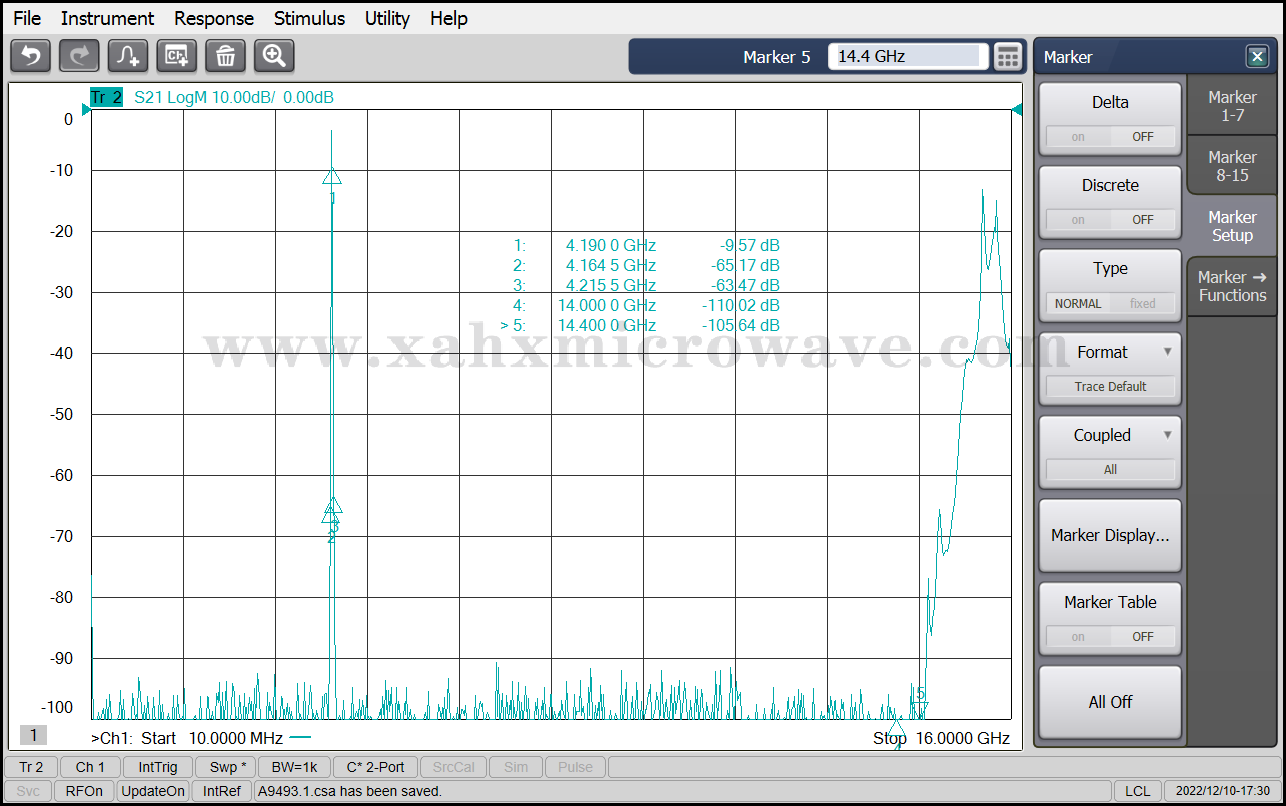

Stop Band Rejection

≥55dB @ DC ~ 4164.5MHz

≥55dB @ 4215.5 ~ 14000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
