Technical Data Sheet
●	Center Frequency(F0)	900MHz
●	Pass Band Frequency	850 ~ 950MHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.3dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥60dB @ DC ~ 750MHz	≥65dB @ 1050 ~ 3800MHz
●	Impedance	50 Ohms
●	Power	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

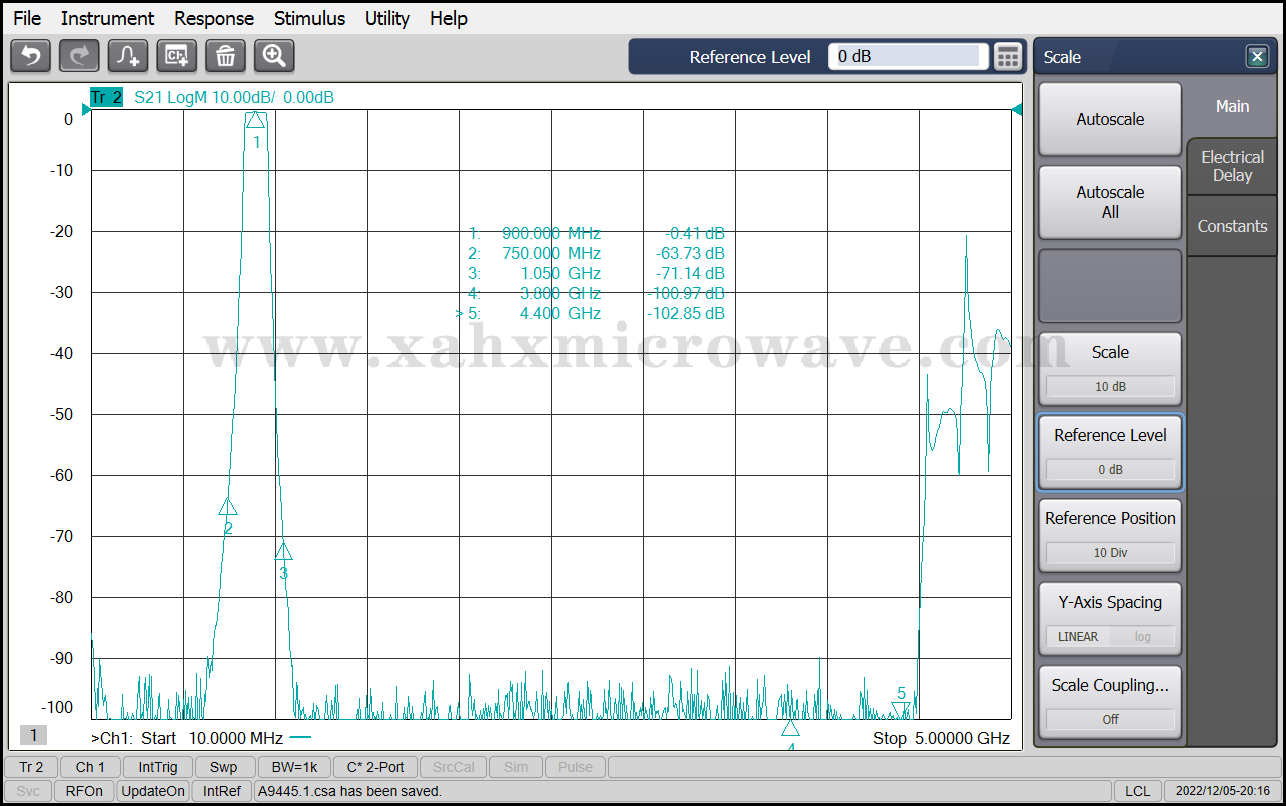

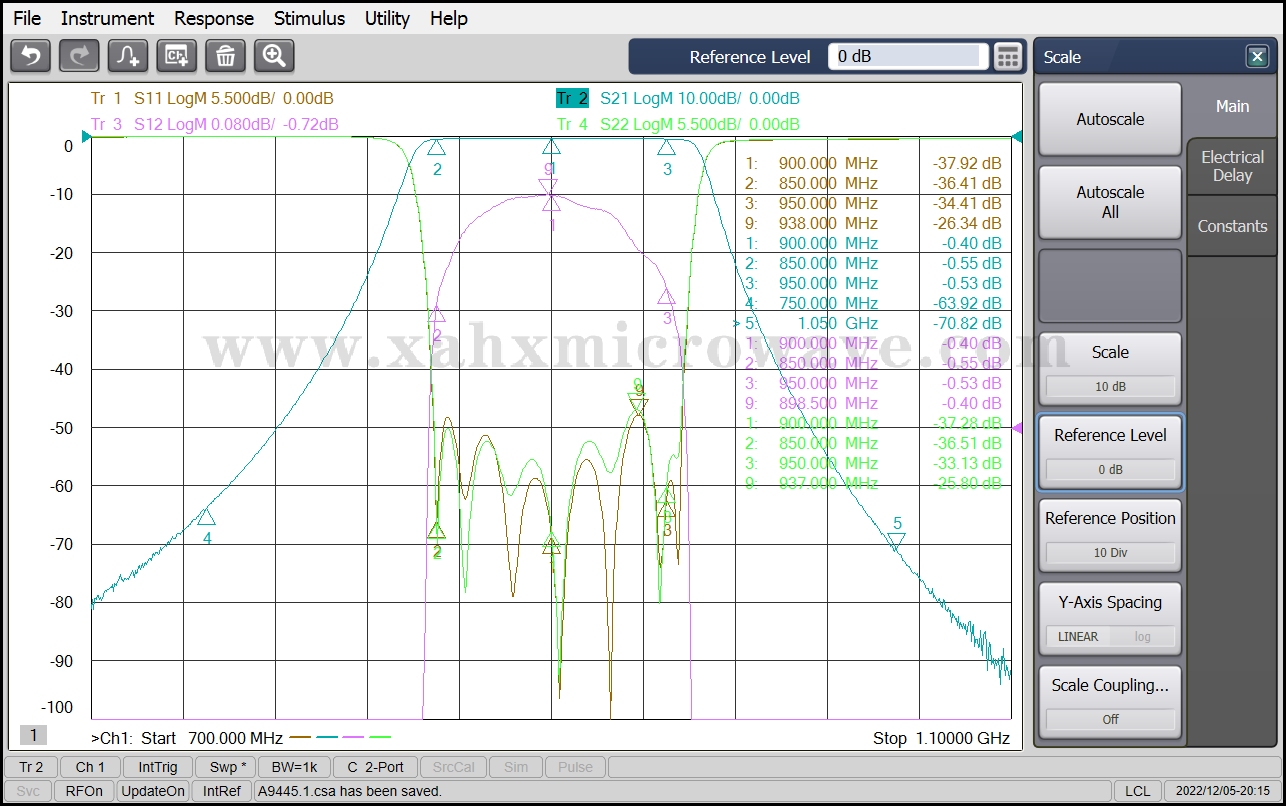

Test Curve
