Technical Data Sheet
●	Center Frequency(F0)	2400MHz
●	Pass Band Frequency	2350 ~ 2450MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.2:1
●	Stop Band Rejection	≥55dB @ DC ~ 2230MHz	≥55dB @ 2570 ~ 7000MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

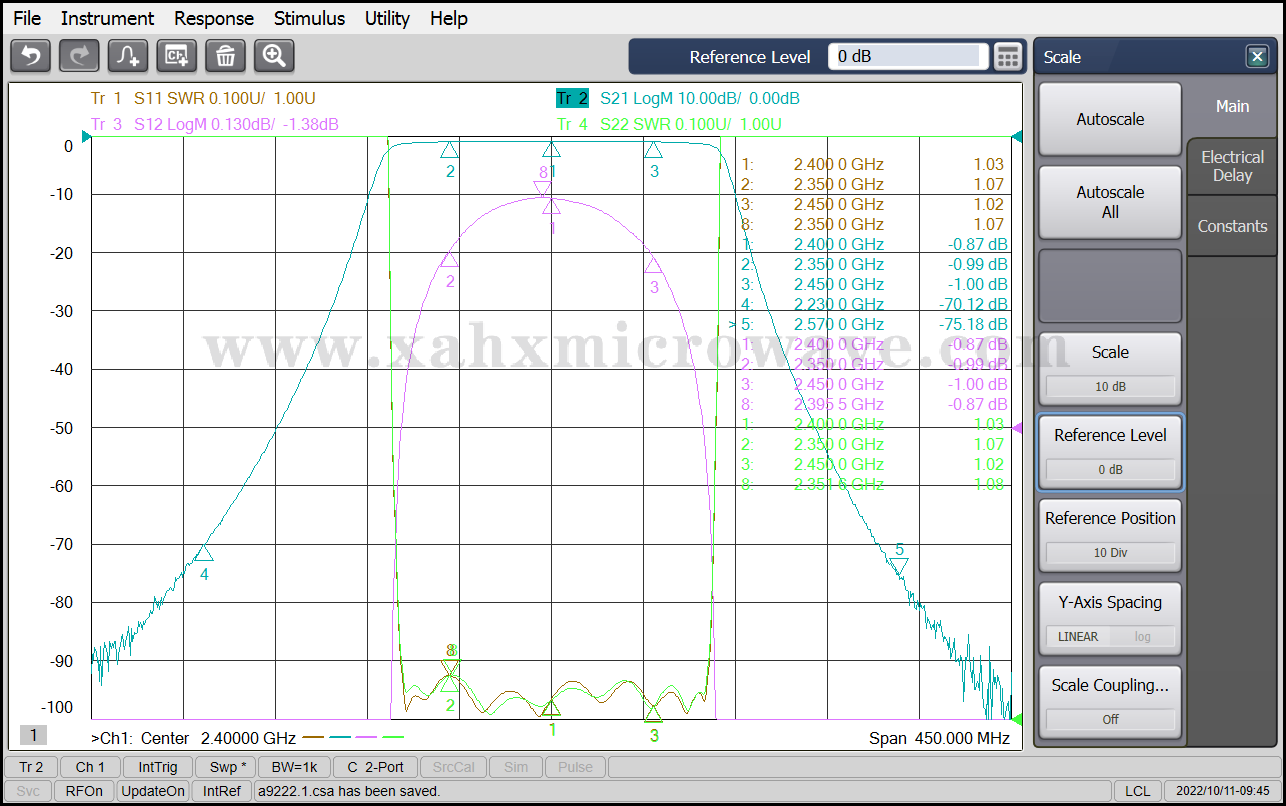

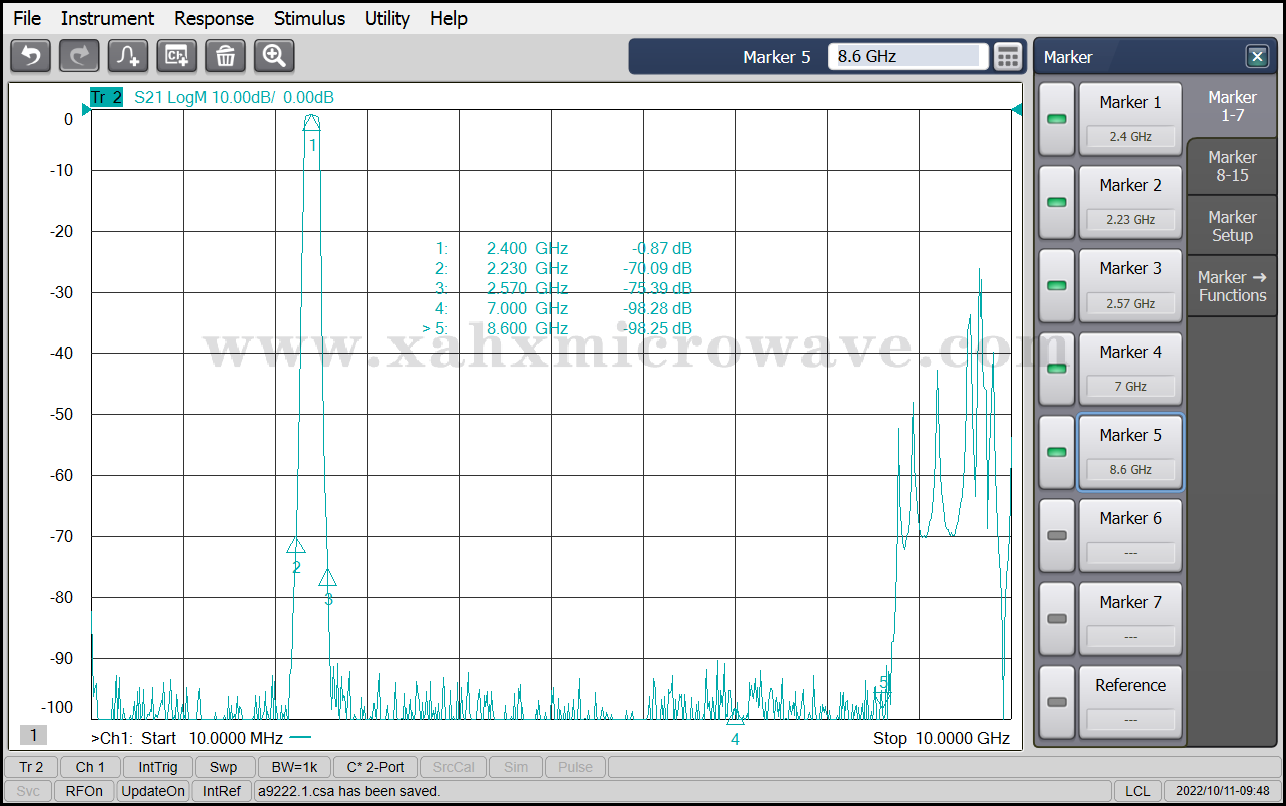

Test Curve
