S/N |
Item |
Parameters |
|
1 |
Center Frequency(F0) |
6.25GHz |
|
2 |

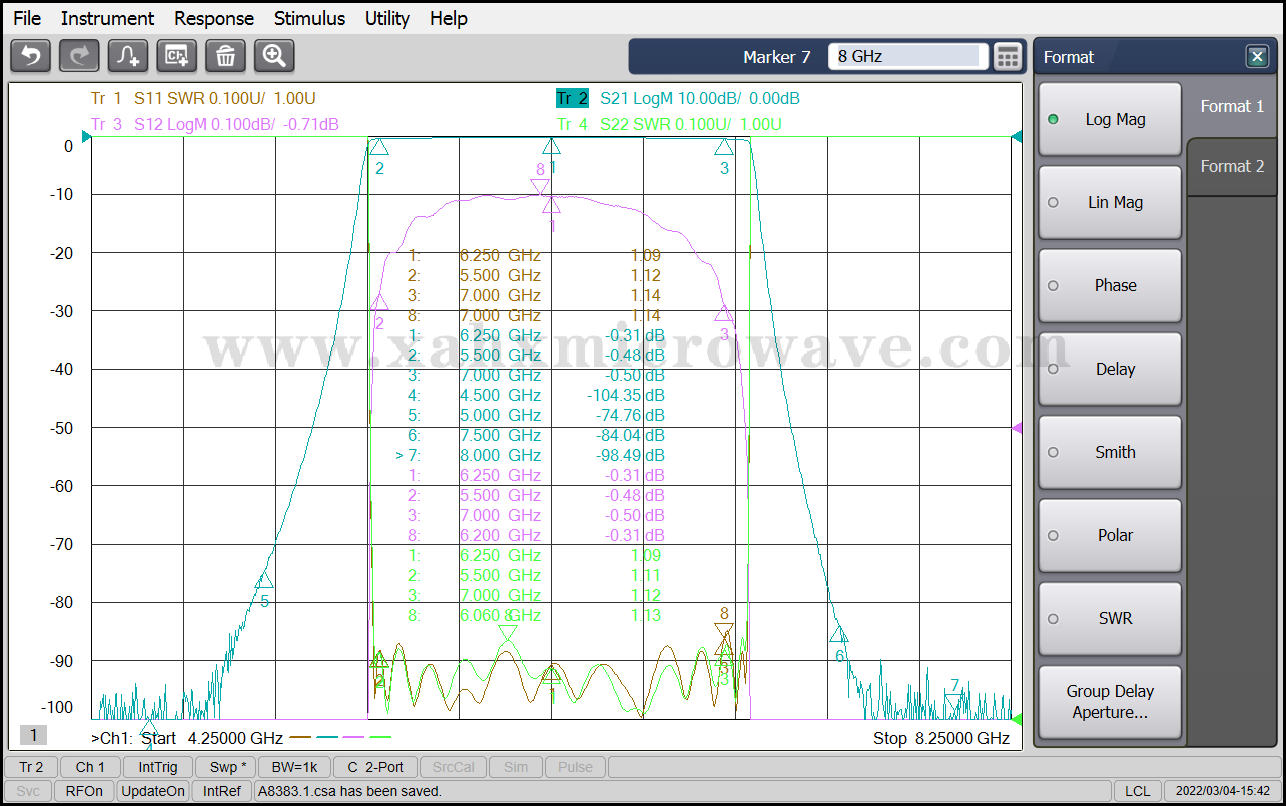

Pass Band Frequency |
5.5 ~ 7.0GHz |
|
3 |
Pass Band Insertion Loss |
≤1.0dB |
|
4 |
Pass Band Ripple |
≤0.5dB |
|
5 |
Pass Band VSWR |
≤1.22:1 |
|
6 |

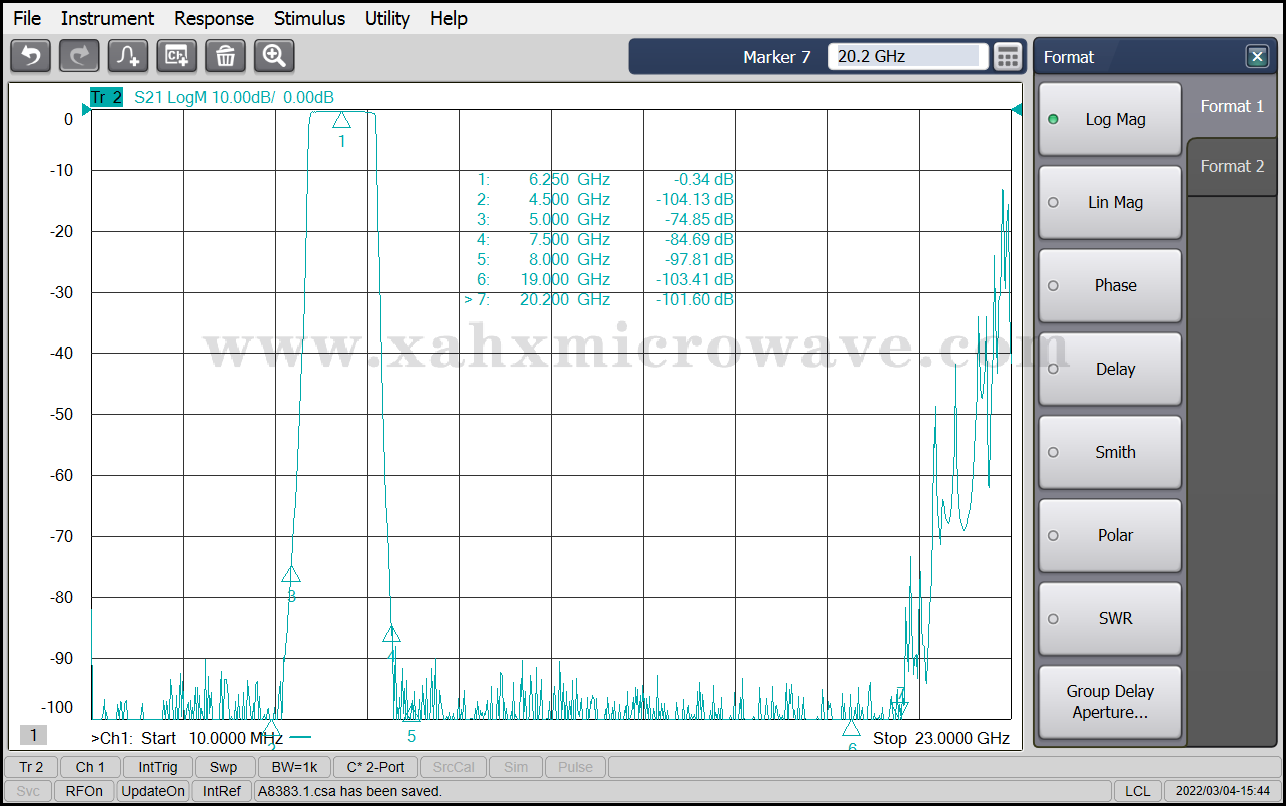

Stop Band Rejection |
≥80dB @ DC ~ 4.5GHz ≥60dB @ 4.5 ~ 5.0GHz |
≥60dB @ 7.5 ~ 8.0GHz ≥80dB @ 8.0 ~ 19GHz |
7 |
Impedance |
50 Ohms |
|
8 |
Power Handling |
5.0W Max. |
|
9 |
Connectors |
SMA-Female |
|
10 |
Surface Finish |
Painted Black |
|
11 |
Temperature Range |
-30℃ ~ +70℃ |
