Technical Data Sheet
●	Center Frequency(F0)	14250MHz
●	Pass Band Frequency	14000 ~ 14500MHz
●	Pass Band Insertion Loss	≤0.75dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 13250MHz	≥60dB @ 15000 ~ 15250MHz
		≥60dB @ 13250 ~ 13500MHz	≥80dB @ 15250 ~ 26500MHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

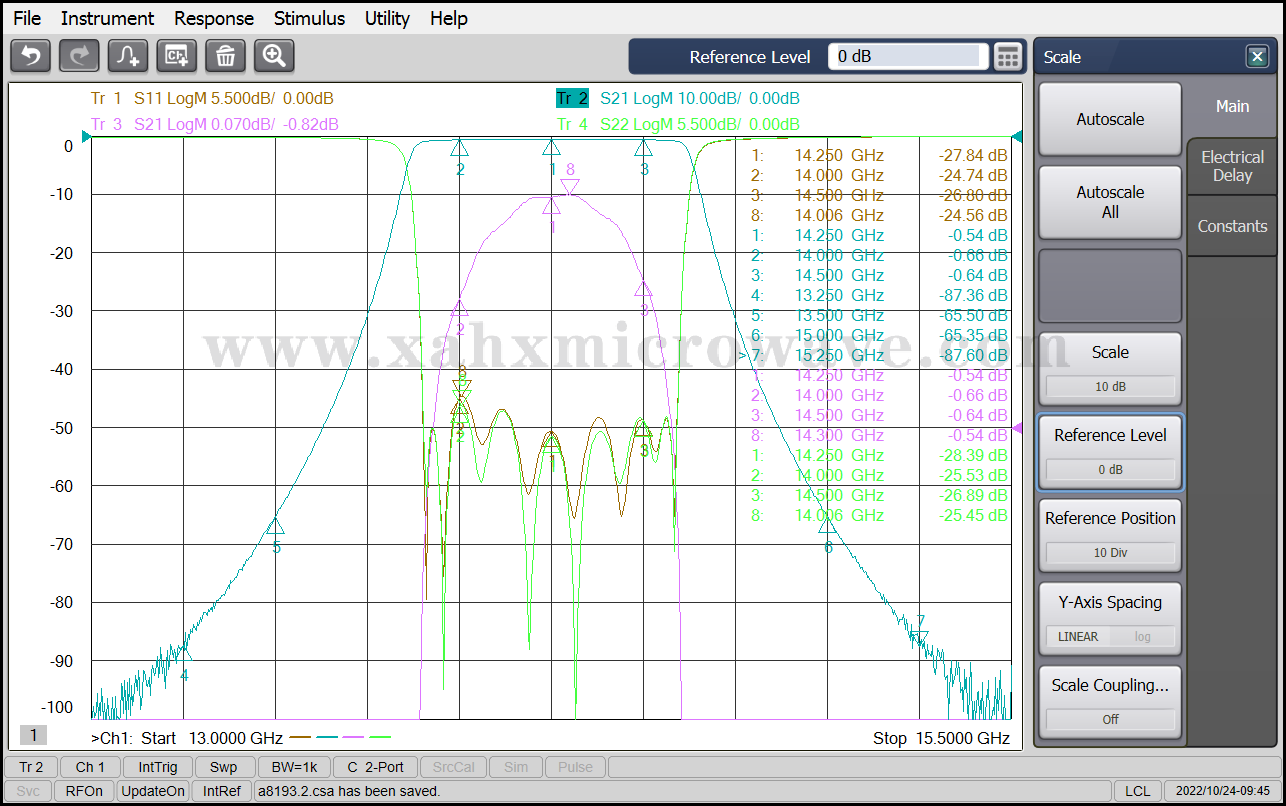

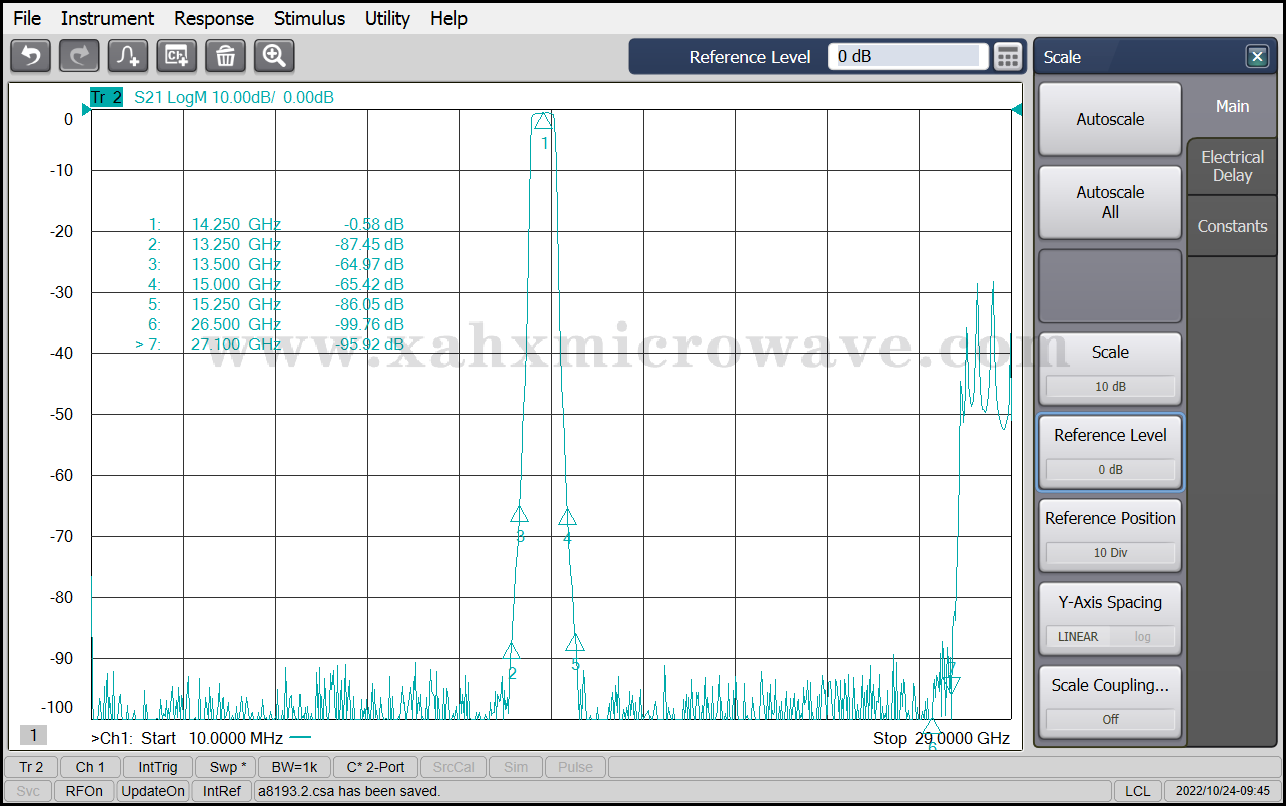

Test Curve
