Technical Data Sheet
●	Center Frequency(F0)	2630MHz
●	Pass Band Frequency	2570 ~ 2690MHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.7dB
●	Pass Band VSWR	≤1.22:1
●	Stop Band Rejection	≥50dB @ DC ~ 2540MHz	≥50dB @ 2720 ~ 5000MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

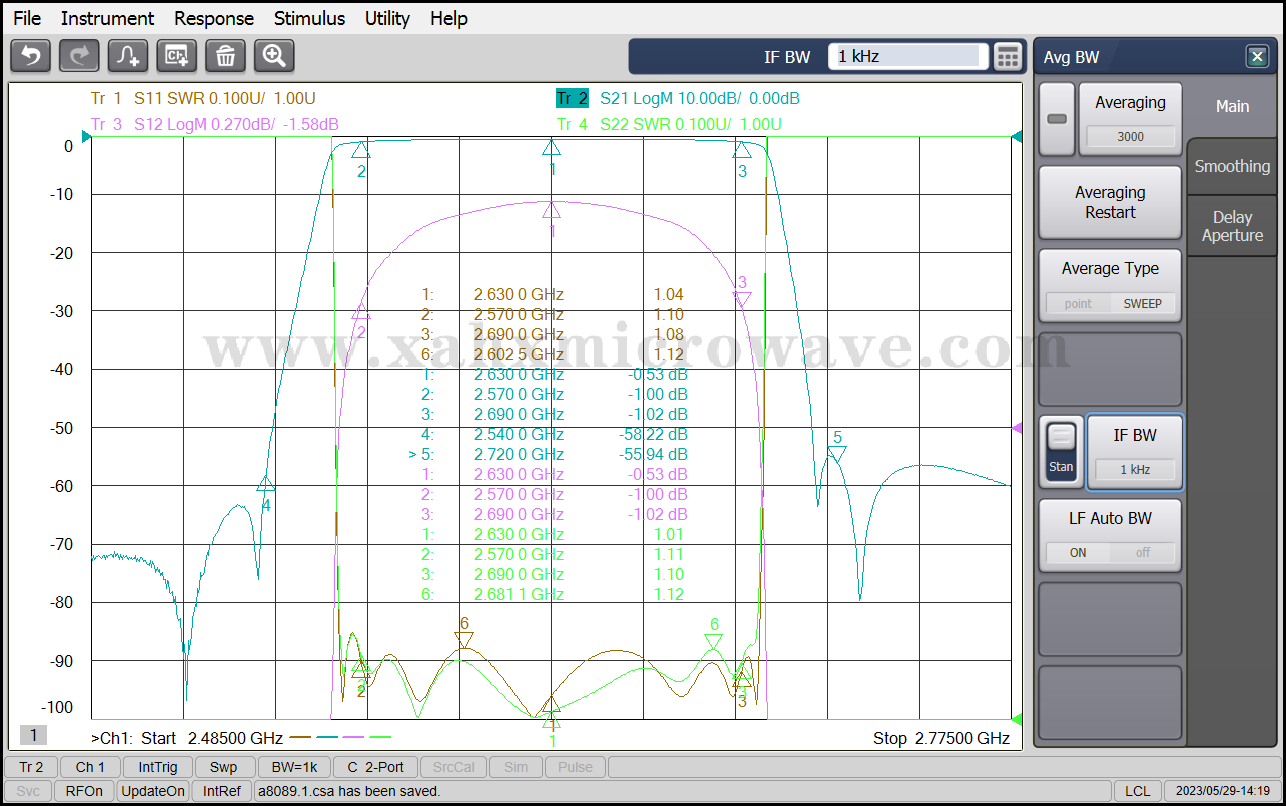

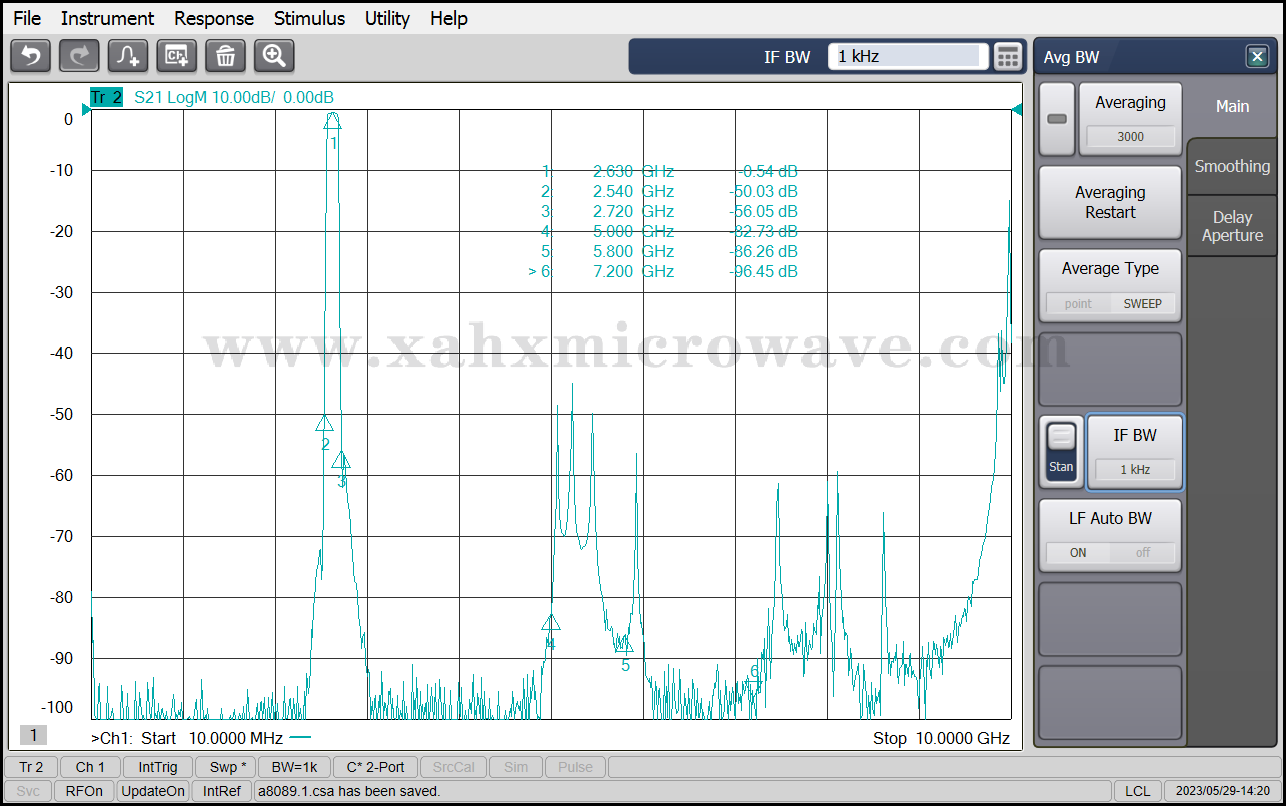

Test Curve
