Technical Data Sheet
●	Center Frequency(F0)	4190MHz
●	Pass Band Frequency	4140 ~ 4240MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.4dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥50dB @ DC ~ 4090MHz	≥50dB @ 4290 ~ 8000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

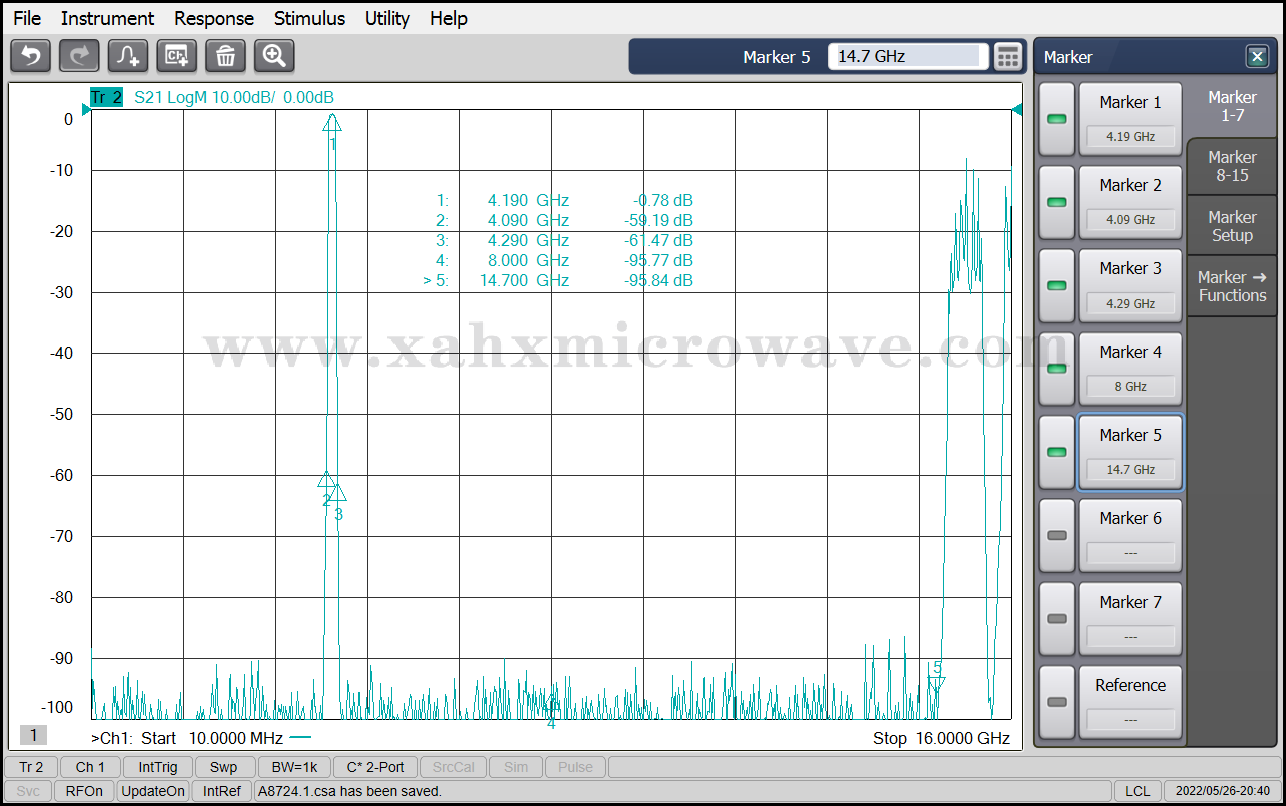

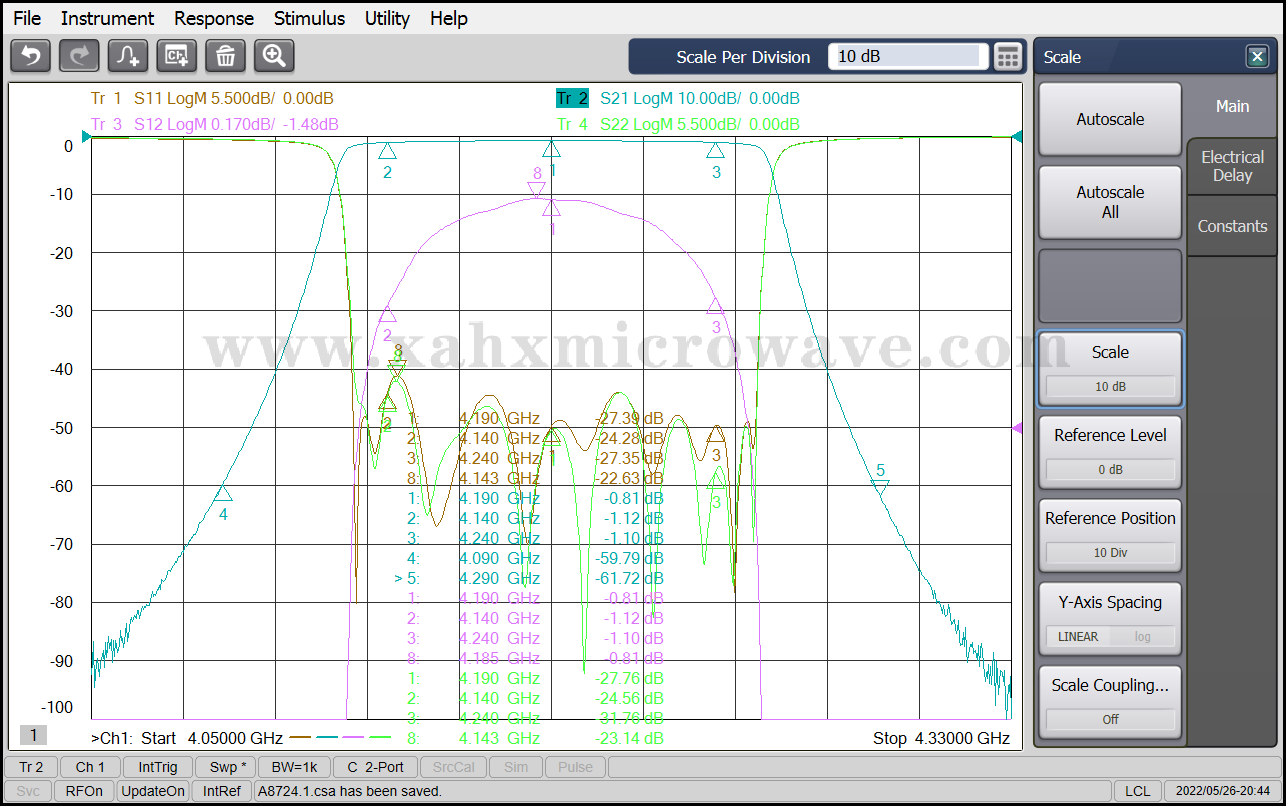

Test Curve
